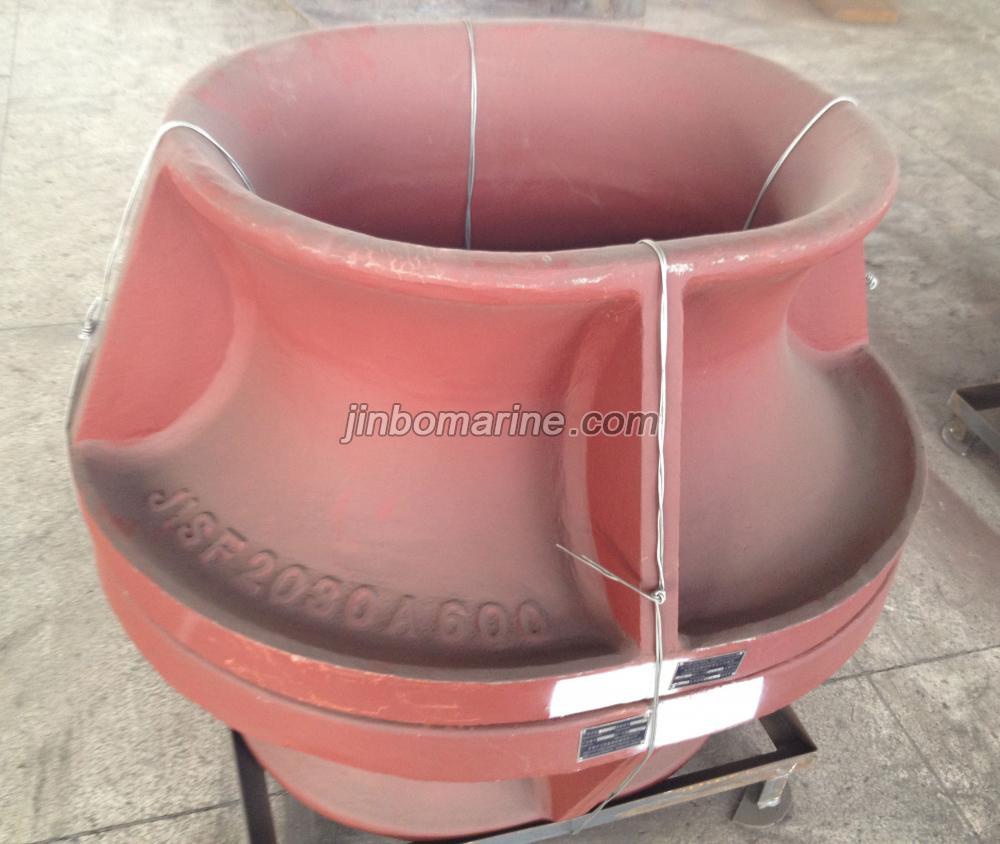

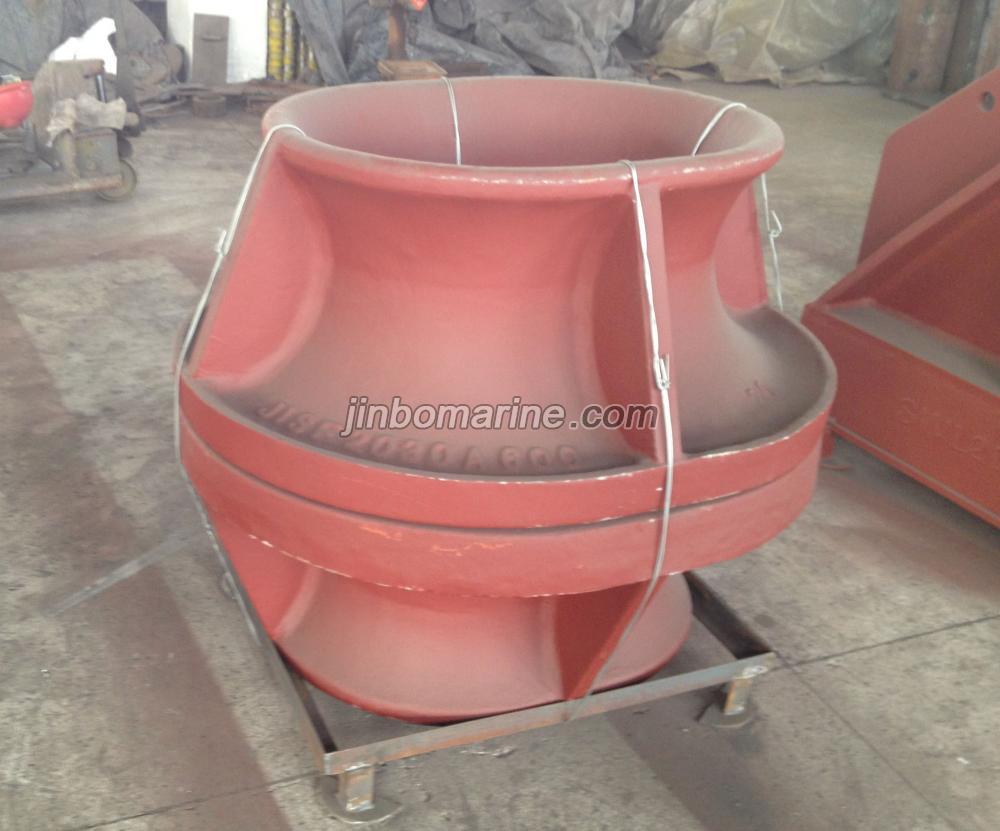

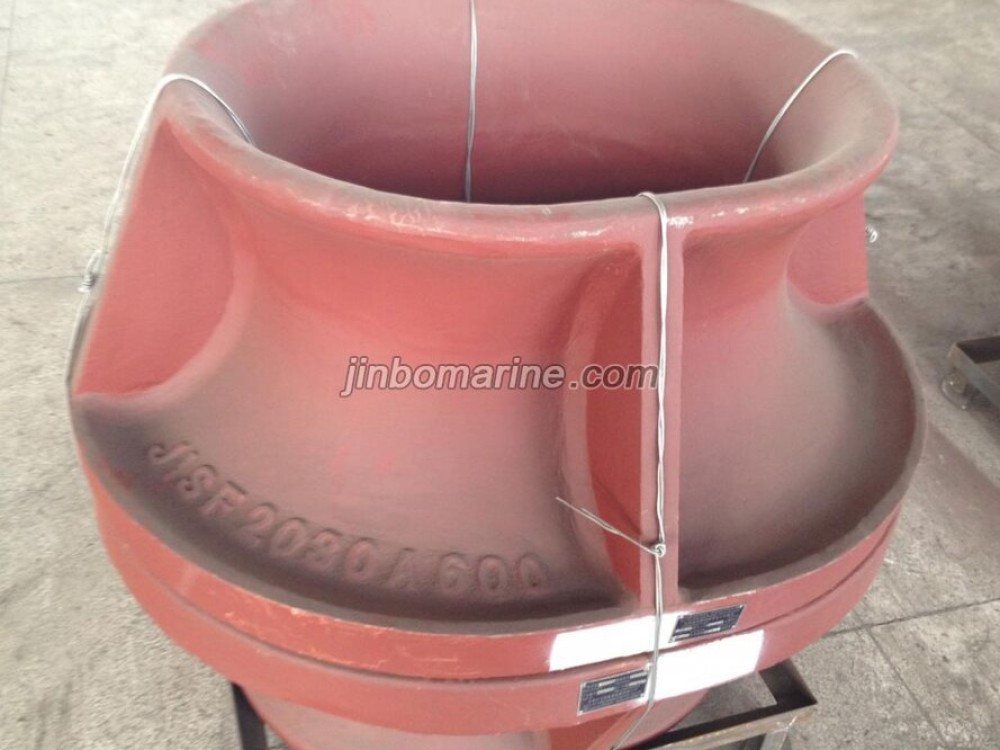

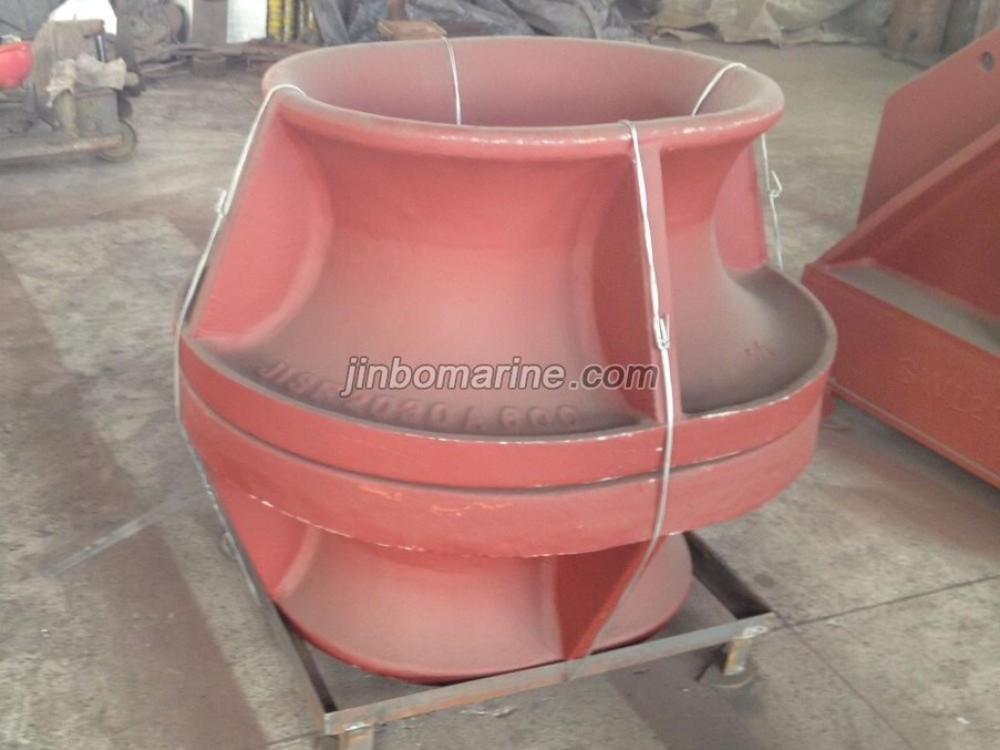

JIS F 2030-1978 A Type Single Point Mooring Pipe
- Category:Marine Chock
- Material:Cast Steel
- Standards:JIS F 2030-1978
- Certificate:BV,CCS,ABS,mill certificate.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F 2030 1978 A Type Single Point Mooring Pipe.pdf
Details
China JIS F 2030-1978 A Type Single Point Mooring Pipe:
Mooring chock and other deck fittings are used by military and industrial ships, operating effectively throughout the world.We designs and manufactures panama chocks in a wide variety of sizes and styles.
Feature:
1.Strict quality control.
2.Can issue BV,CCS,ABS,DNV,mill certificate.
3.Material: ZG200-400,ZG230-450.
4.Paint:Grey Epoxy Primer or Black Bitumen Paint,also can do comply with your requirement for the thickness.
5.Packing: Steel Pallet
6.surface in contact with the rope in use been finished smoothly.
|

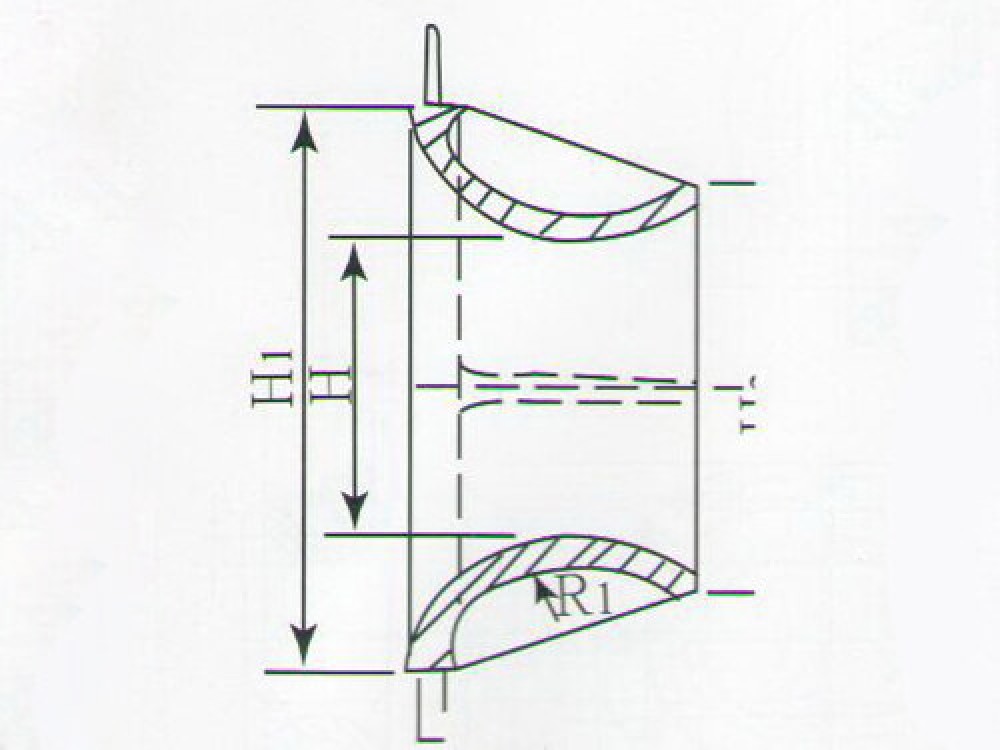

Single Point Mooring Pipe JIS F 2030-1978 type A |
||||||||
|
Product |
Nominal |
Size(mm) |
Weight |
|||||
|
L |
L1 |
H |
H1 |
B |
C |
(KG) |
||
|
SMA-001 |
400 |
400 |
780 |
300 |
680 |
350 |
65 |
400 |
|
SMA-002 |
500 |
500 |
940 |
400 |
840 |
400 |
70 |
500 |
|
SMA-003 |
600 |
600 |
1100 |
450 |
950 |
450 |
75 |
600 |
|
SMA-004 |
700 |
700 |
1260 |
500 |
1060 |
500 |
80 |
700 |
|
SMA-005 |
800 |
800 |
1420 |
600 |
1220 |
550 |
85 |
800 |
