JIS F2017-1982 AC Type Deck Mounted Panama Chock
- Category:Marine Chock
- Material:Cast Steel
- Standards:JIS F2017-1982 AC type
- Certificate:CCS,BV,ABS,mill certificate available.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F2017 1982 Ac Type Deck Mounted Panama Chock.pdf
Details

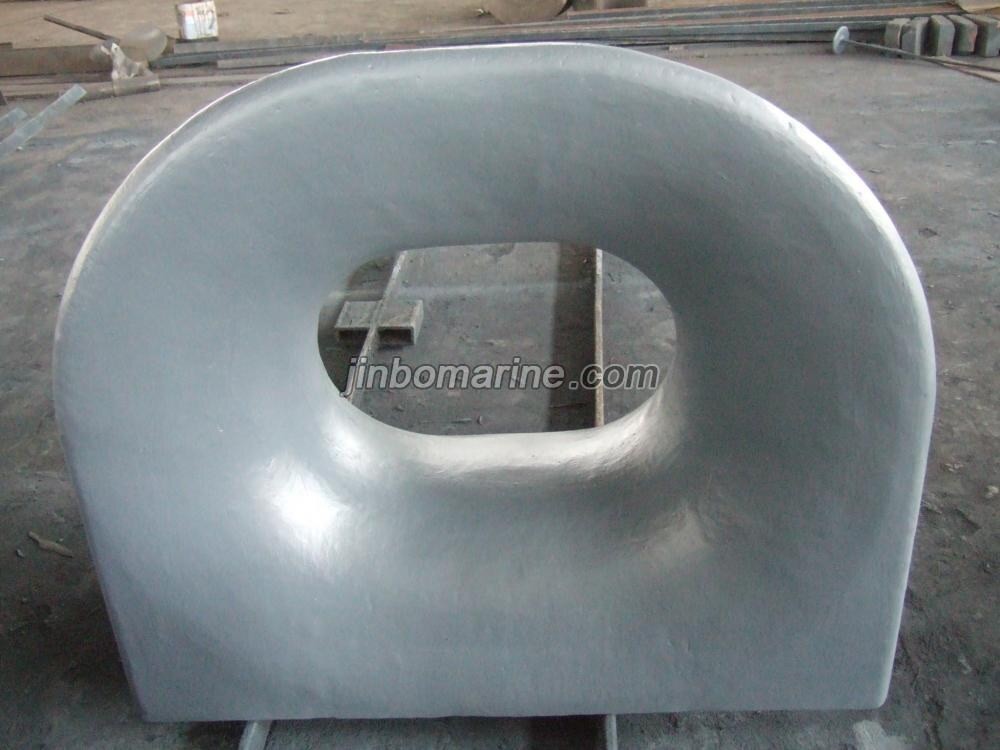

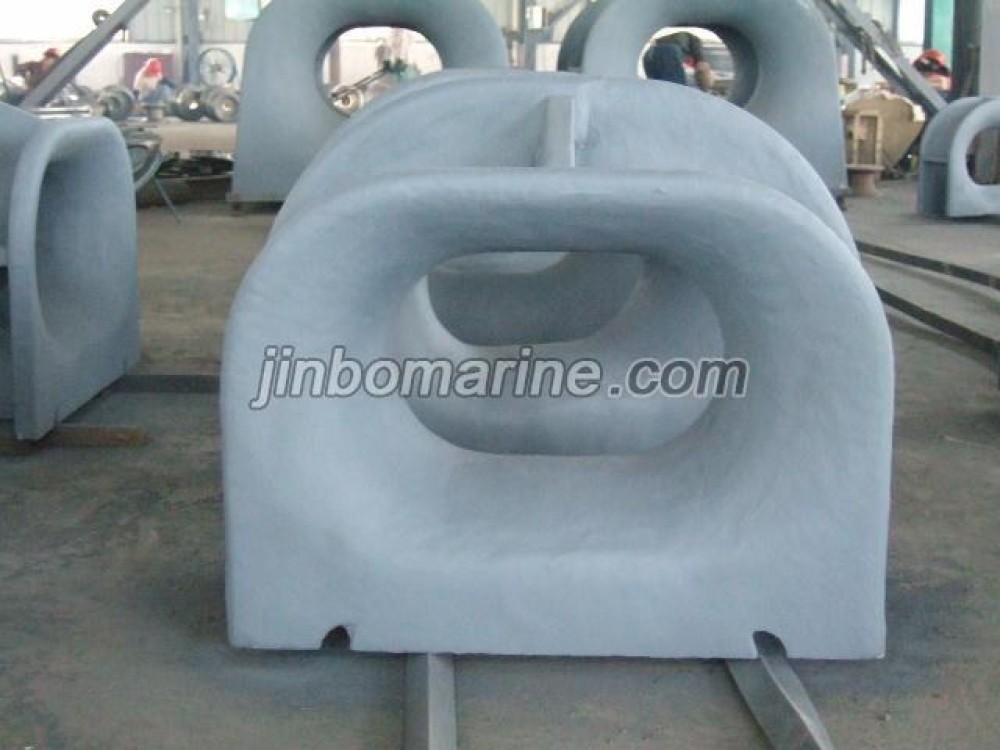

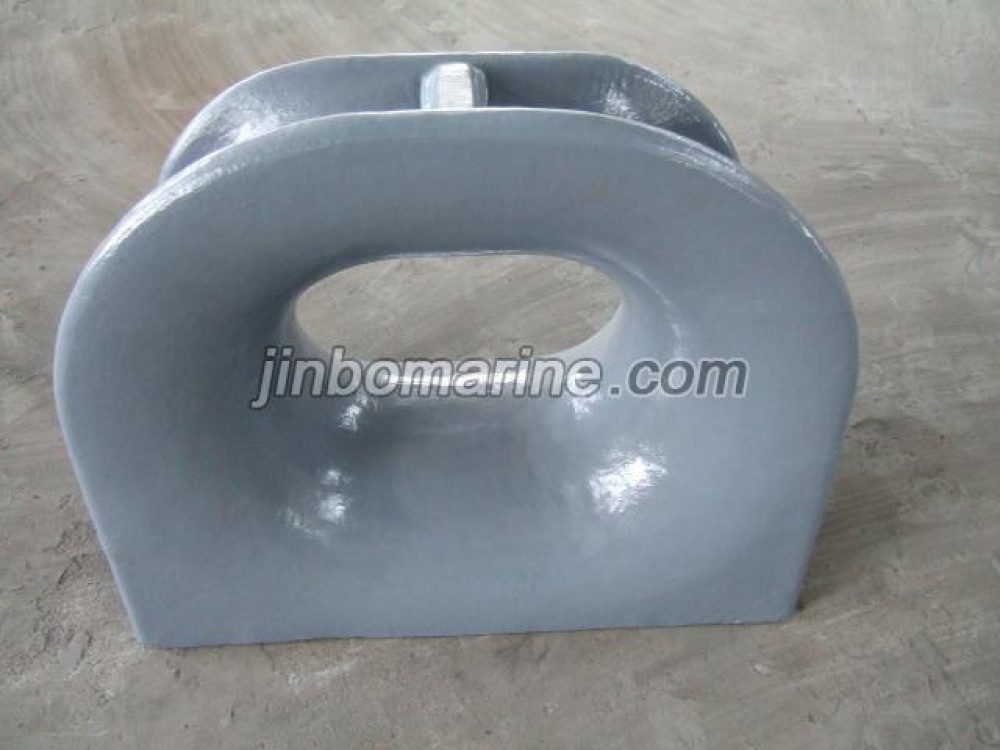

China JIS F2017-1982 AC Type Deck Mounted Panama Chock:
Our marine chock is made from cast steel material.We can manufactures chocks in a wide variety of sizes and styles,also can customized the chock according to your drawing.
We have own casting factory,ensure our product have reliable quality with very competitive price.Normally,the lead time is 15 to 25 days. We can advance it if you need it urgent.
Description:
1.Material:cast steel ZG200-400,ZG230-450.
2.Certificate:CCS,BV,DNV,ABS,mill certificate available.
3.Paint:Normally we adopt Grey Epoxy Primer or Black Bitumen Paint.

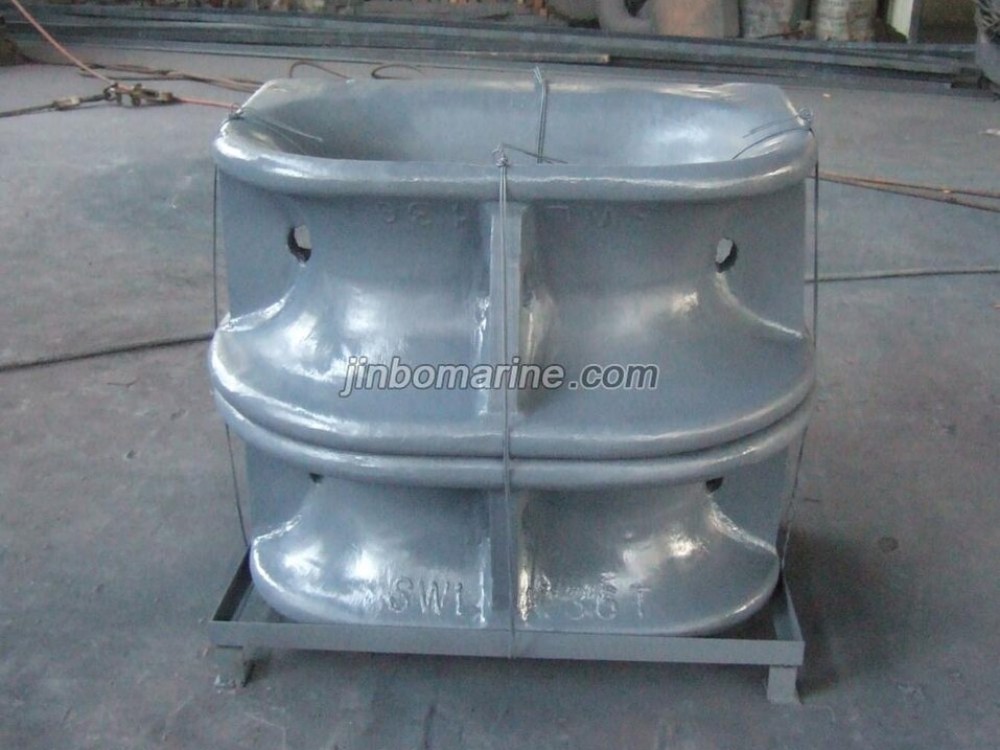

4.Packing:Iron shelf or as per your request.
5.surface in contact with the rope in use been finished smoothly.
General size chart:
|
JIS F2017-1982 AC type Deck mounted Panama chock |
||||||
|
Product
No.
|
Dimensions(mm) |
Mass(kgs) |
||||
|
A |
B |
C |
D |
E |
||
|
PAC-001 |
310 |
708 |
639 |
541 |
652 |
253 |
|
PAC-002 |
360 |
760 |
640 |
542 |
704 |
289 |
|
PAC-003 |
400 |
804 |
642 |
545 |
750 |
323 |
|
PAC-004 |
450 |
856 |
643 |
547 |
802 |
351 |
|
PAC-005 |
500 |
908 |
644 |
549 |
854 |
395 |
