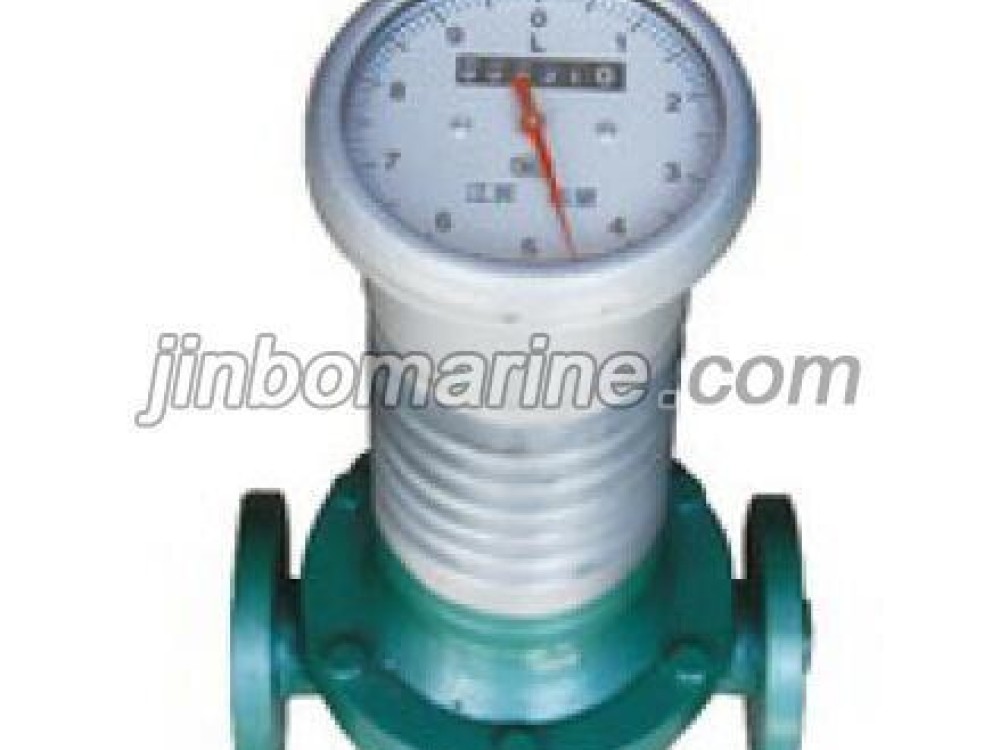

LC Type High Temperature Ellipse Gear Flowmeter

  • Category:Marine Flow Meter
  • Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
  • Packing Details:Carton packaging.
  • Delivery Time:about 7 to 10 days
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

It is a volume type flowmeter,which measure the liquid flow summation through pipeline.It can be used for ship,chemical,petroleum,medium,electric power,metallurgy and food etc.

Main Technical Specification:

Material: cast iron,cast steel,stainless teel.

Nominal pressure:

1.6Mpa(cast iron)

2.5,4.0,6.3Mpa(cast steel)

1.6,2.5MPa(stainless steel)

Liquid temperature to be measured:-100~200 centigrade

Accuracy class:0.5

Model LC-TA cast iron high temperature type LC-TE cast steel high temperature type,LC-TB stainless steel high temperature type,
Nominal pressure 1.6Mpa 2.5Mpa, 4.0Mpa, 6.3Mpa
Liquid temperature to be measured 100~200℃
Accuracy class 0.5
Model Nominal diameter Liquid viscocity to be measured(Mpa.s)
0.8~2 2~8 8~200
LC-TA (E)15 15 0.45~1.35 0.36~1.35 0.18~1.35
LC-TA (E)20 20 0.9~2.7 0.48~2.7 0.36~2.7
LC-TA (E)25 25 1.8~5.4 0.96~5.4 0.72~5.4
LC-TA (E)40 40 3.6~13.5 2.4~13.5 1.8~13.5
LC-TA (E)50 50 5.8~21.6 3.6~21.6 2.9~21.6
LC-TA (E)80 80 15~54 9.6~54 7.2~54
LC-TA (E)100 100 24~90 22~90 12~90
