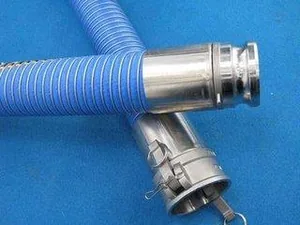

Light Duty Fuel and Oil Hoses

General description

The Light Duty Fuel and Oil hoses are manufactured from multi-layers of polypropylene fabric and film with a weatherproof and abrasion resistant outer cover. The layers are held and tensioned between internal and external wire helices. Computer aided design has resulted in exceptional strength to weight ratios and extreme flexibility, giving the hoses excellent handling characteristics. This ensures ready operator acceptance and encourages good usage practice. Specializes in producing oil hoses, fuel hoses, suction hoses, pvc suction hose pipe, such as hose suction professional products. All hoses get the approval of international standards including EN 13765, BS 3492 AX + BX and BS5842, and can be supplied with factory fitted end connections to the customer’s requirements.

Applications

The Light duty fuel and oil hoses are specifically engineered for the transfer of hydrocarbons, including oils, petrol, diesel, lubricating oils, paraffin and 100% aromatics.

Construction

Inner wire: Galvanized steel

Lining: Polypropylene

Outer cover: Polyester PVC coated blue

Outer Wire: Galvanized steel

Physical properties

Proof pressure: 1.5 maximum working pressure

Maximum elongation: less than 10%

Maximum twist: less than 10 degree/m

Electrical resistance: less than 10 ohm

Vacuum range: 0.9bar

Min. bursting pressure: 4:1

Temperature range: -30 degree to +80degree

Specification

Nominal diameter

Max. working pre.

Bend radius

Weight

Maximum length

Inches

Mm

PSI

Bar

Inches

Mm

Lbs/Ft

Kg/m

Ft

m

1

25

100

7

4.90

125

0.65

0.95

65

20

1.5

40

100

7

4.90

125

0.85

1.25

65

20

2

50

100

7

5.90

150

0.95

1.40

65

20

2.5

65

100

7

5.90

150

1.20

1.80

65

20

3

80

100

7

9.85

250

1.70

2.55

65

20

4

100

100

7

11.80

300

2.30

3.40

65

20

This information is for reference only, dimensions and weight are approximate.
