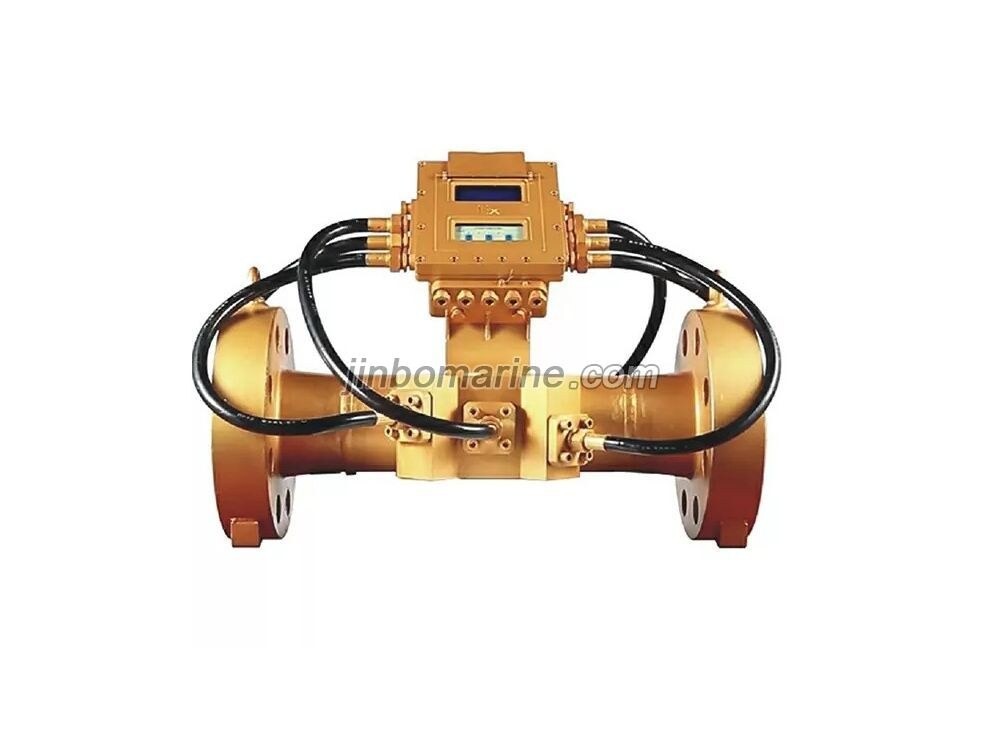

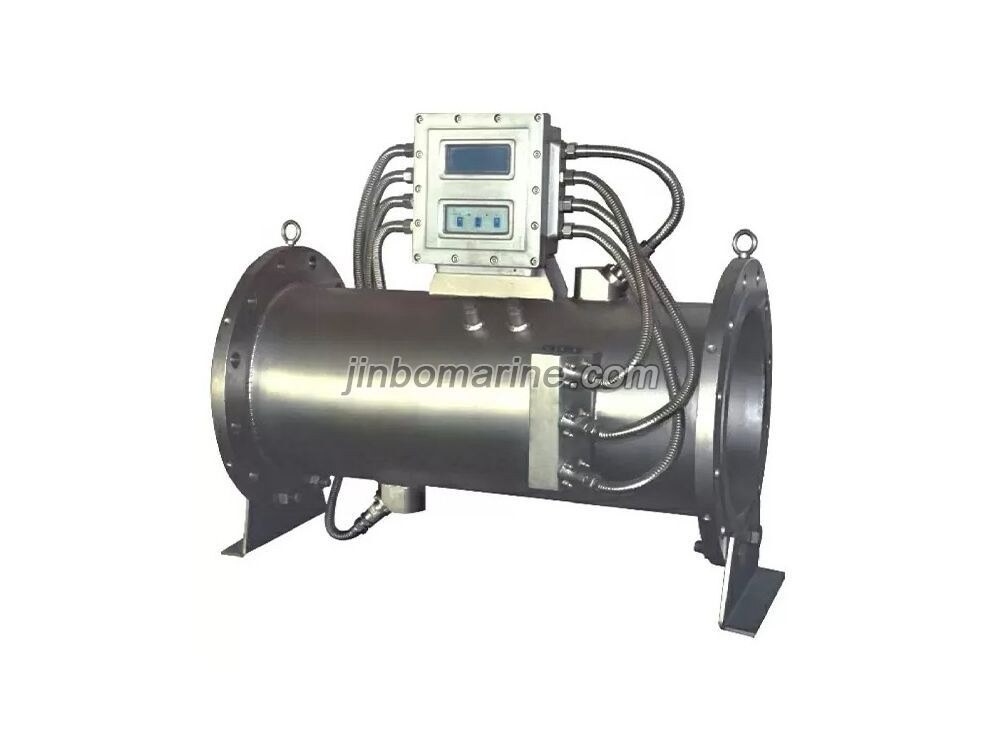

LYNSB Ultrasonic Gas Flowmeter
Description LYNSB Ultrasonic gas flowmeter is China National Key Technologies R&D Program of 863, and it's high-value product researched and developed by Yinuo with Independent Intell...
Loading product images...
LYNSB Ultrasonic Gas Flowmeter
PDF Datasheet
We can supply according to your requirement.
Description
LYNSB Ultrasonic gas flowmeter is China National Key Technologies R&D Program of 863, and it's high-value product researched and developed by Yinuo with Independent Intellectual Property Rights. It gets an invention patent and a practical new-type patent. It can be extensively applied to the supply, transmission, distribution of most dry gas in fields such as underground air storage, power stations, petrochemical industry, aluminum melters etc. A wide range of gas can be measured by LYNSB in eluding natural gas, compact gas, air, fuel gas, corrosive gas, poisonous gas, high-pure gas, etc.
Feature
NO moving parts, low pressure drop, long life span.
Bi-directional measurement.
Simple installation, easy maintenance,
High accuracy and good reliability.
Ex-proof: Exd(ib)IIBT4(exclude ecetylene).
Temperature and pressure compensation.
Suitable for small flowrate and large size pipe.
Bi-directional measurement.
Simple installation, easy maintenance,
High accuracy and good reliability.
Ex-proof: Exd(ib)IIBT4(exclude ecetylene).
Temperature and pressure compensation.
Suitable for small flowrate and large size pipe.
Specification
| Accuracy | ±0.5%, ±1.0%, ±1.5% |
| Diameter | DN25mm~DN300mm |
| Turndown Ratio | >1:30 |
| Medium | Gas, liquid |
| Output Signal | Pulse, 4~20mA |
| Communication Protocol | MODBUS Protocol |
| Ex-proof | Common type, Ex-proof type |
| Protection | IP65 |
| Ex-proof Grade | Exdib II BT4(GYB101058) |
| Working Temp. | -40ºC ~+85ºC |
| Max. Overload Flowrate | 120% |
| Power Supply | DC 24V (600mA), DC12V(1A) |
| Nominal Pressure | 1.6MPa ,2.5MPa,4.0MPa,6.3MPa, 10.0MPa,16MPa,25MPa, 42MPa |
