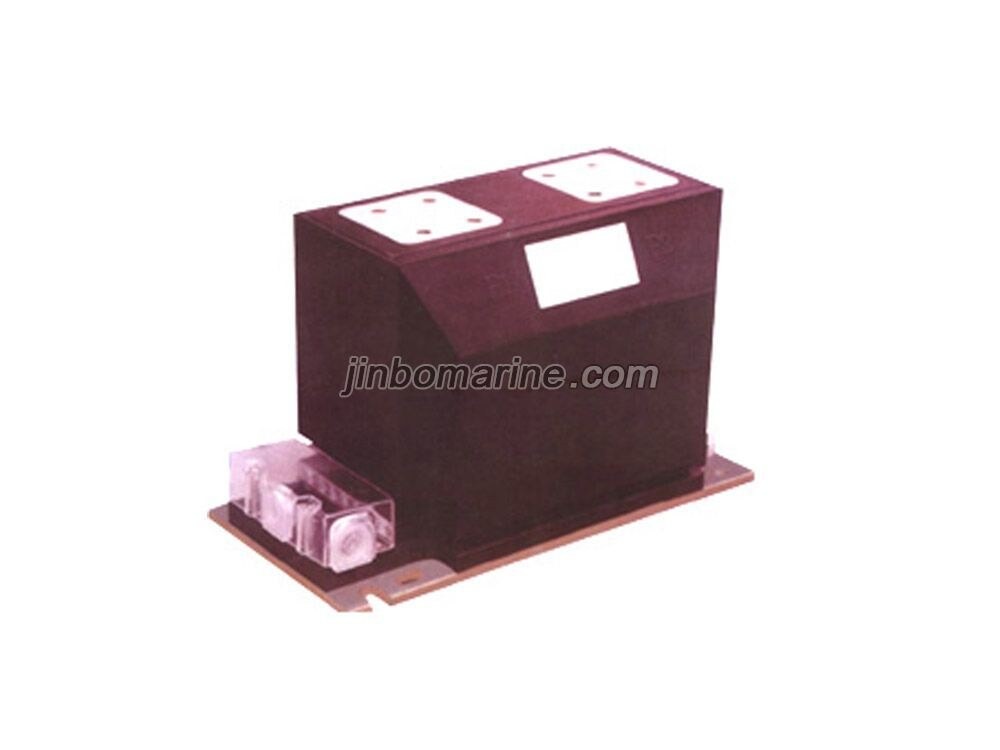

LZZBJ9-10A1G Current Transformer
- Category:Marine Transformers
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
LZZBJ9-10A1G Current Transformer
1.The product complies with the standards GB1208 and IEC185
2. Rated insulation level 12/42/75KV
3. Rated frequency 50Hz, 60Hz
4. It can make high-precision current transformer with measurement level of 0.2S or 0.5S

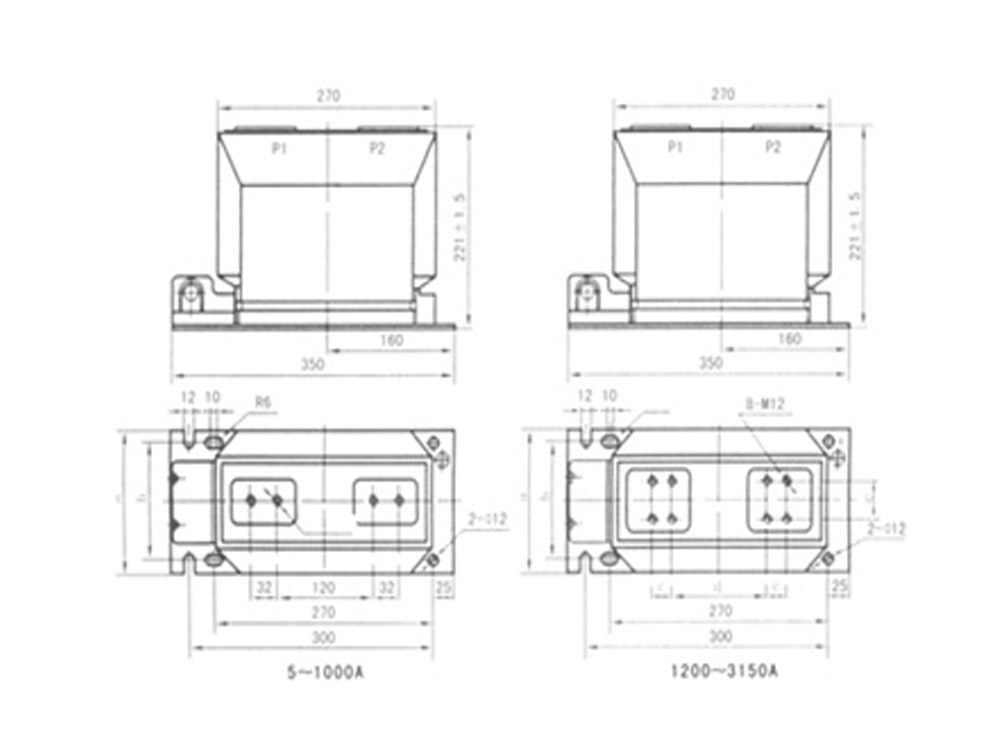

LZZBJ9-10A1G Current Transformer Drawing
LZZBJ9-10A1G Current Transformer Parameters
| Model | Rated Primary Current/A | Accuracy Combination | Rated Output/VA | LTH KA/S | Rated Dynamic Current |
|
LZZB6-10 LZZB6-10Q |
5-100 | 0.2/0.2 | 10/10 | 150Im | 375Im |
| 150 | 0.2/0.5 | 10/10 | 22.5 | 44 | |
| 200,300 | 0.5/10P10 | 10/15 | 24.5 | 44 | |
|
LZZJB6-10 LZZJB6-10Q |
100 |
0.2/0.2 0.2/0.5 0.5/10P15 |
10/10 10/10 10/15 |
15 | 38 |
| 150 | 22.5 | 44 | |||
| 200 | 24.5 | ||||
| 300 | |||||
| 400,500,600 | 33 | 59 | |||
| 800 1000 1200 1500 | 41 | 74 | |||
|
LZZQB6-10 LZZQB6-10Q |
30 |
0.2/0.2 0.2/0.5 0.5/10P15 |
15/15 | 8 | 20 |
| 40 | 15/15 | 12 | 30 | ||
| 50 | 15/20 | 16 | 40 | ||
| 75 | 20 | 50 | |||
| 100 150 200 300 | 31.5 | 80 | |||
| 400 |
0.2/0.2 0.2/0.5 0.5/10P15 |
20/20 20/20 20/30 |
|||
| 44.5 | 80 | ||||
| 500 | |||||
| 600 | 0.2/0.2 |
30/30 30/30 30/30 |
|||
| 800 | 0.2/0.5 | ||||
| 1000-1500 | 0.5/10P15 | 63 | 110 |
