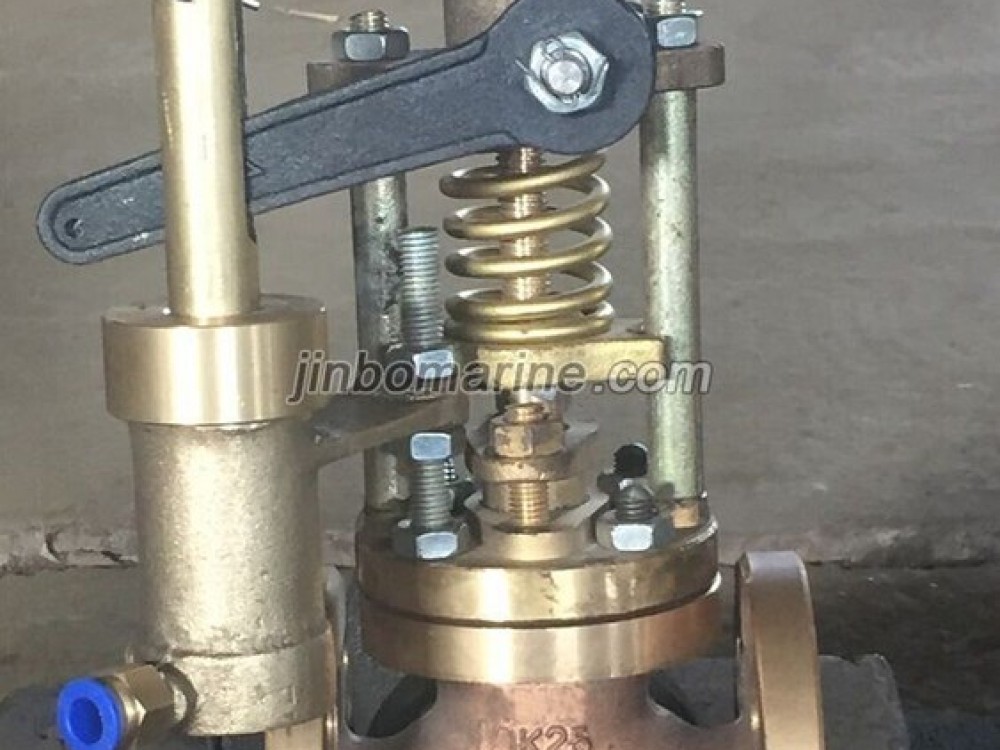

Marine Bronze Pneumatic Quick Closing Valve JIS F7399 10K
- Category:JIS Marine Quick Closing Valve
- Material:Bronze, Brass
- Standards:JIS F7399
- Certificate:CCS, BV, ABS, DNV/GL, LR, NK
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Pneumatic Quick Closing Valve JIS F7399 10K:
Marine Bronze Pneumatic Emergency Quick Closing Valve JIS F7399 is used to shut off the fuel oil/lubricatoin oil pipeline in emergency with the air cylinder. It is controlled remotedy by the air cylinder.
Design Standard: JIS F7399-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure:Body- 0.7Mpa, Seat-0.2Mpa,Seal for quick closing-0.1Mpa
Flange size as per JIS B2220 - 10K
Main Material:
Body: Bronze or Brass
Bonnet: Bronze or Brass
Seat: Bronze or Brass
Disc: Bronze or Brass
Stem: Brass (C3771BD)
Air Cylinder: Brass
Operation Spindle: SUS403
Operation Lever: SUS403
Handwheel: FC200 (Cast iron)

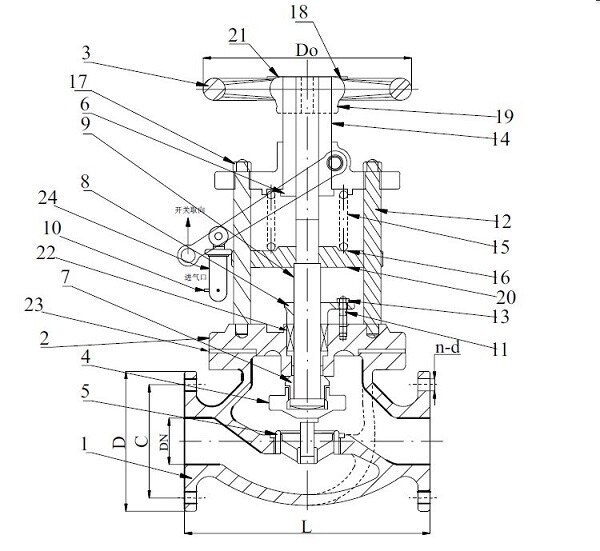

Gasket: non-asbestosMain Size List(mm):
| DN | d | L | D | C | Bolt Hole NO. | Bolt Hole Diameter | Flange thickness | H | D2 |
| 10K15 | 15 | 110 | 95 | 70 | 4 | 15 | 12 | 265 | 120 |
| 10K20 | 20 | 120 | 100 | 75 | 4 | 15 | 14 | 265 | 120 |
| 10K25 | 25 | 130 | 125 | 90 | 4 | 19 | 14 | 265 | 120 |
| 10K40 | 40 | 180 | 140 | 105 | 4 | 19 | 16 | 310 | 140 |
| 10K50 | 50 | 220 | 155 | 120 | 4 | 19 | 16 | 335 | 160 |
| 10K65 | 65 | 270 | 175 | 140 | 4 | 19 | 18 | 395 | 180 |
| 10K80 | 80 | 300 | 185 | 150 | 8 | 19 | 18 | 420 | 180 |
