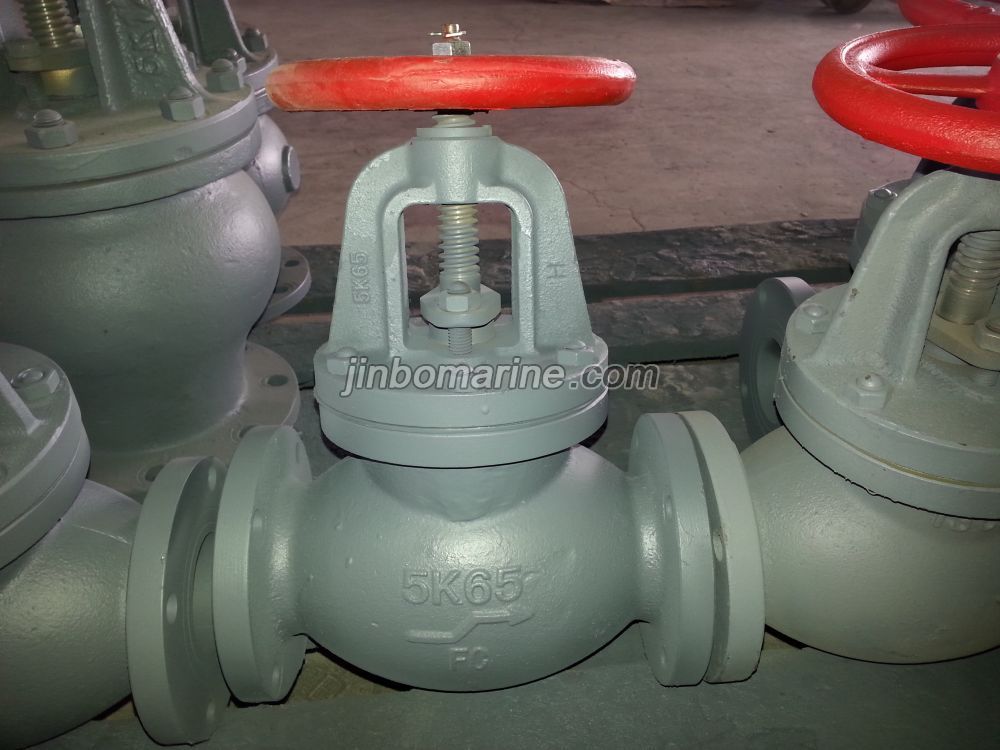

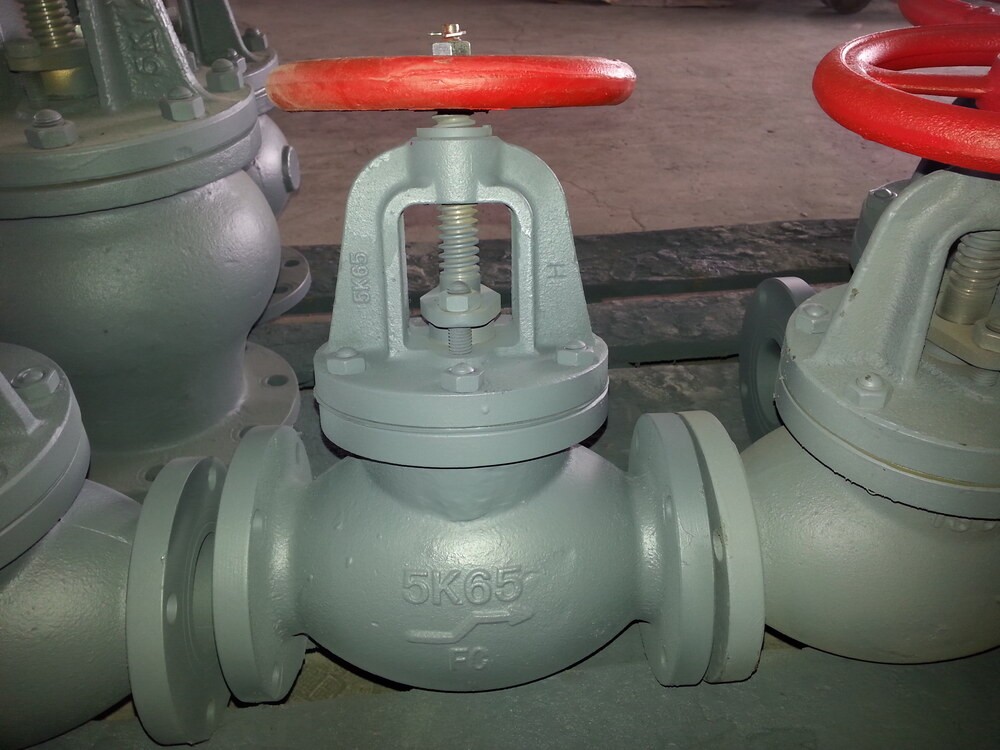

Marine Cast Iron Screw Down Check Globe Valve JIS F7353 5K

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Cast Iron Screw Down Check Globe Valve JIS F7353 5K:

Marine Cast Iron Screw Down Check Globe Valve also can be called as Marine Cast Iron SDNR Valve or SDNR Globe Valve. It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7353-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 - 5K

* The standard one is without indicator, if the customer needs the indicator for the SDNR Valve, pls state when inquiry or order.

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

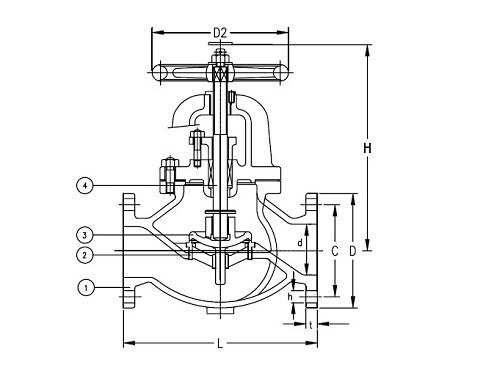

Main Size List(mm):

IMPA Code
Size L Flange diam. (D) Pitch (C) No of Bolt Hole h t H D2 Weight
751101 50 210 130 105 4 15 16 270 160 14.8
751102 65 250 155 130 4 15 18 300 180 21.3
751103 80 280 180 145 4 19 18 310 180 27.6
751104 100 340 200 165 8 19 20 360 224 40.4
751105 125 410 235 200 8 19 20 390 250 57.9
751106 150 480 265 230 8 19 22 445 280 80.9
751107 200 570 320 280 8 23 24 530 315 139
751108 250 740 385 345 12 23 26 650 355 243
751109 300 840 430 390 12 23 28 740 400 377
751110 350 840 480 435 12 25 30 840 500 463
751111 400 1050 540 495 16 25 30 940 630 643
