Marine Float Level Controller UQK-652-C/S
- Category:Marine Level Switch
- Material:Stainless Steel
- Certificate:GL, DNV, ABS, BV, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

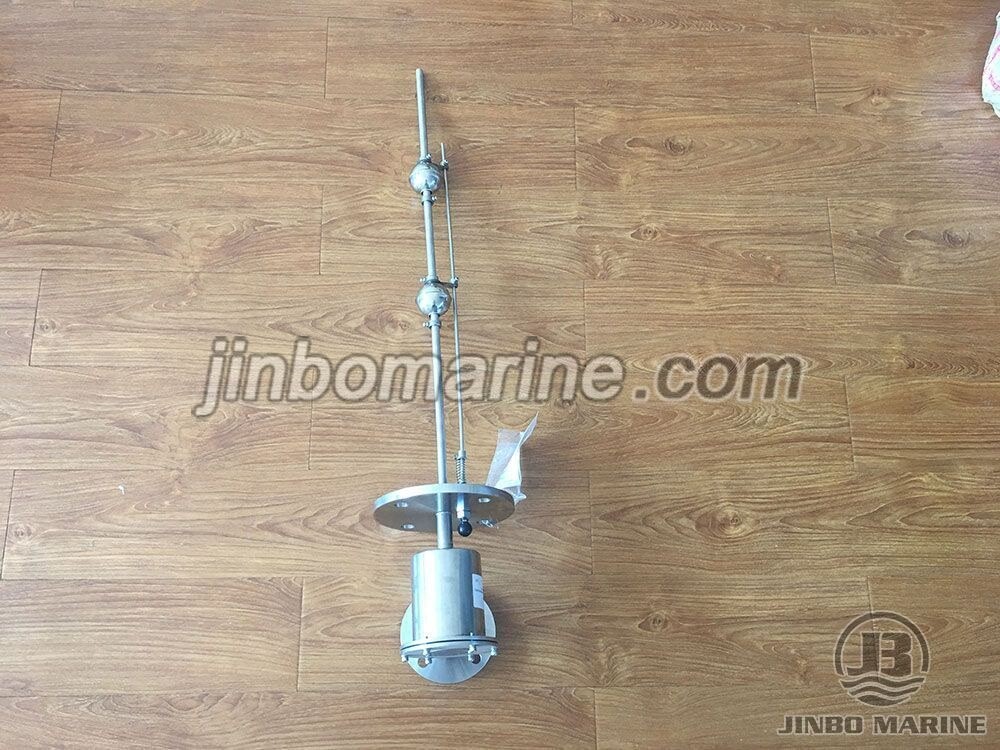

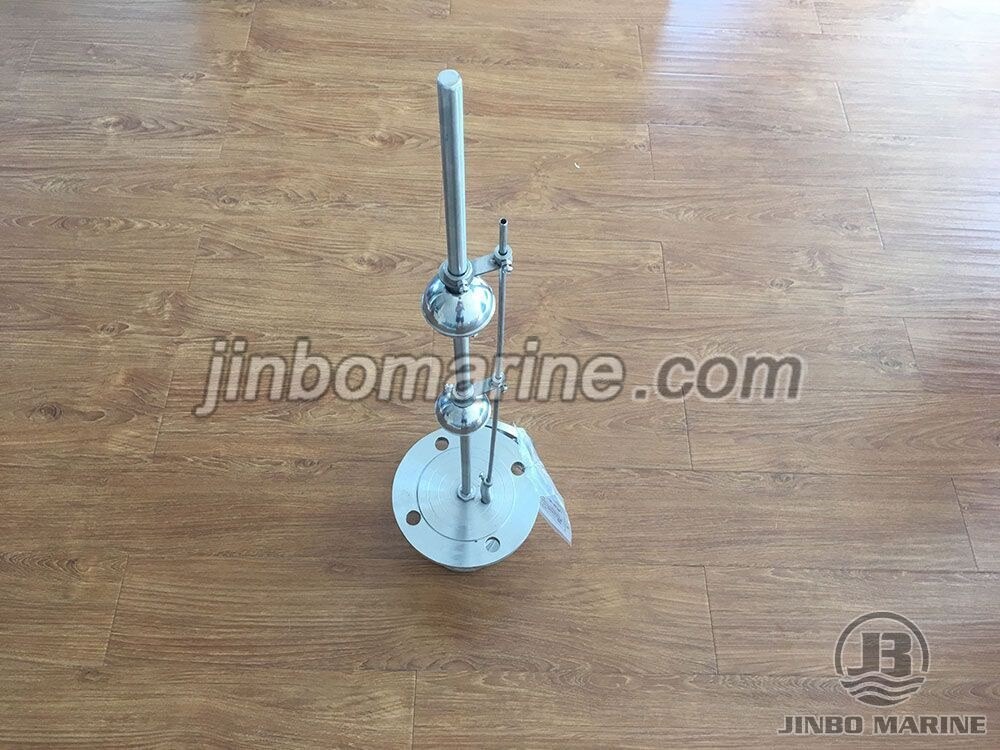

China Marine Float Level Controller UQK-652-C/S:
Marine float level controller UQK-652-C/S type is used in ship and other industrial instrument to carry multipoint control and alarm to the level in the tank.
TECHNICAL SPECIFICATION:
| Model | UQK-652-C/S A | UQK-652-C/S B |
| Mounting type | Top mounting | |
| Controlling range | 200～5000mm | |
| Lower dead zone | 110mm | |
| Up dead zone | ≤110mm | |
| Contact capacity | AC 220V/0.5A | |
| Contact form | SPST SPDT | |
| Medium gravity | ≥0.85 | |
| Medium temp | ≤200℃ | |
| Working pressure | 1.0Mpa | |
| Protected pipe dia | A- Φ76Φ89mm | B-without shield barrel |
| Protection | IP68 IP66 | |
| Flange standard | GB573-65 | |
| Float dia D mm | Φ76 Φ60 Φ45 Φ28 | |
