Marine Level Switch UQK-652-C
- Category:Marine Level Switch
- Material:Stainless Steel
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Delivery Time:7 to 10 days.
- Packing Details:Carton packaging.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

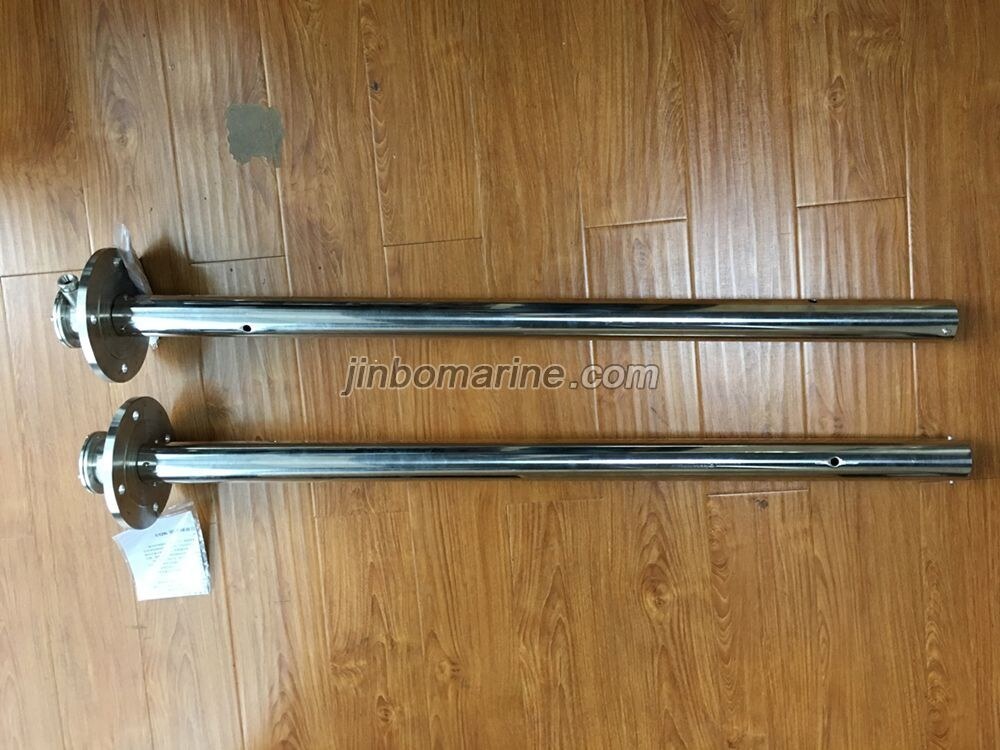

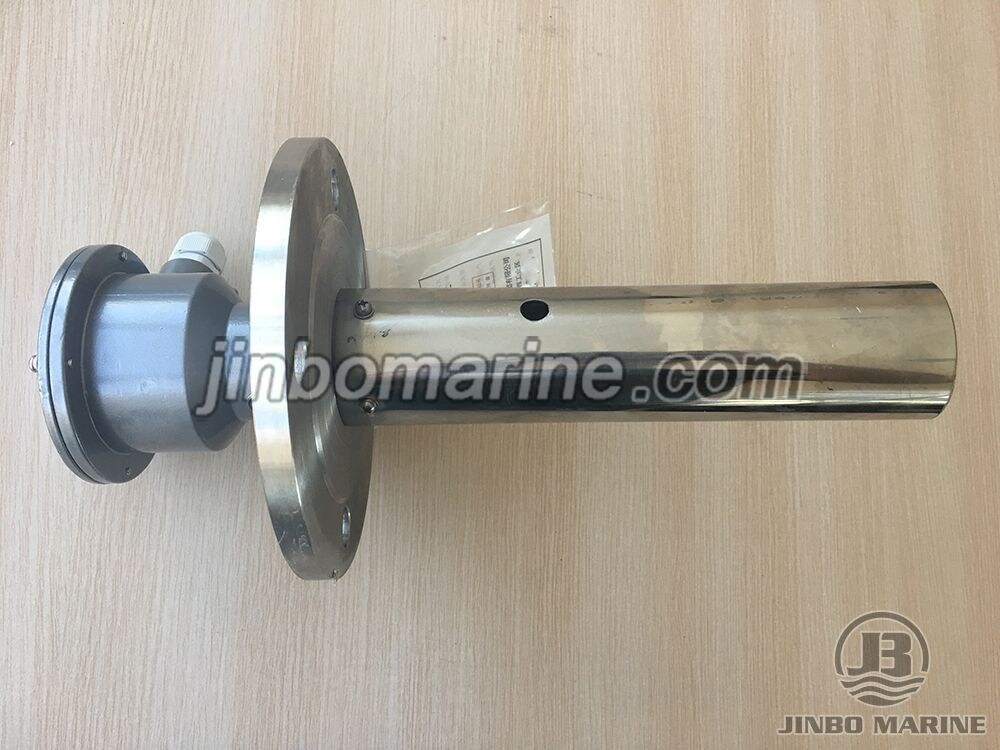

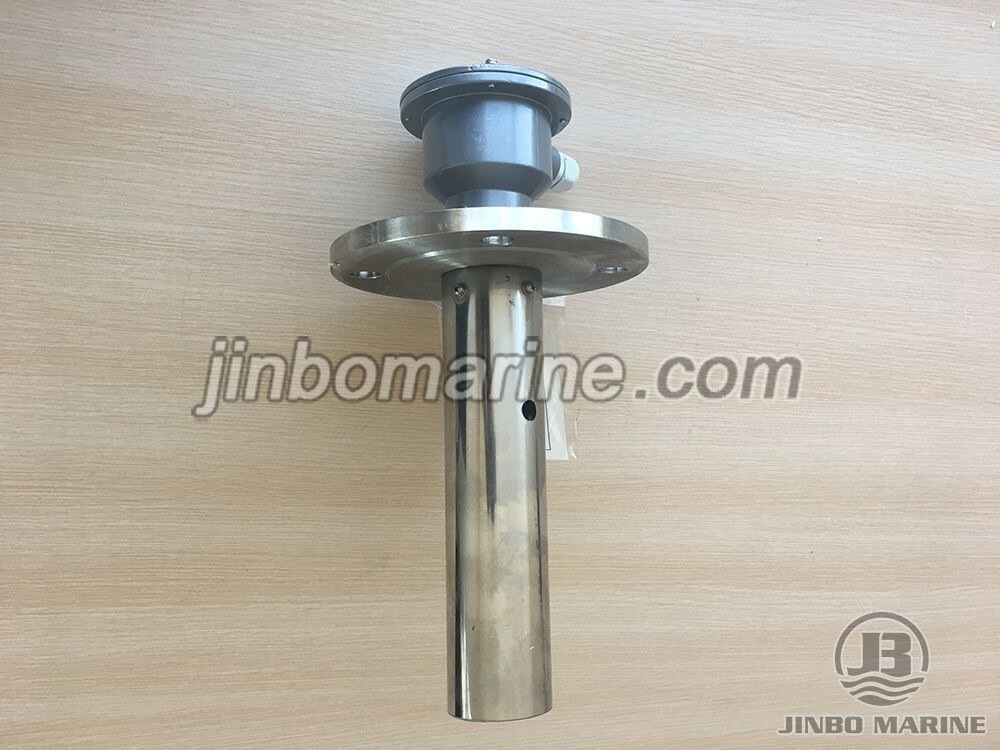

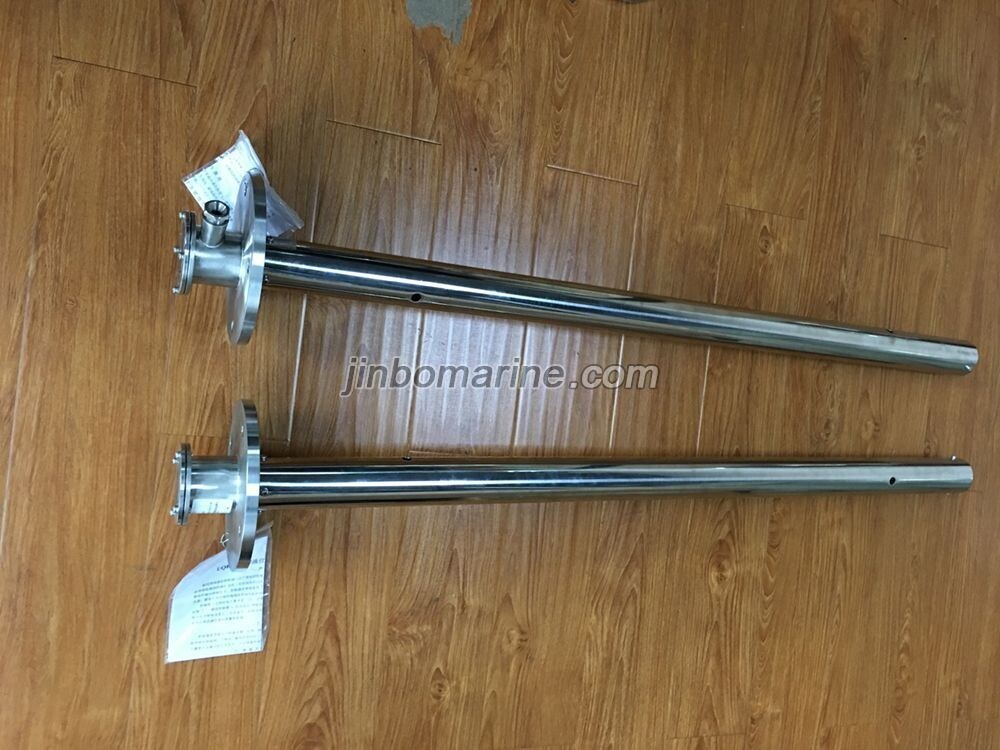

China Marine Level Switch UQK-652-C:
Marine Level Switch UQK-652-C seriesis used for the level control in the opening or pressure container of ship .When the level is high or low, the float switchworks andalarms.
Technical Specification:
| Model | UQK-652-C | UQK-652-C/B |
| Mounting type | Top mounting | |
| Switch type | SPDT | |
| Contact capacity | SPDT AC;220/10A DC125V/0.6A | |
| Switching error | 10～40（mm） | |
| Medium gravity | ≥0.85 | |
| Medium temp | ≤200℃ | |
| Working pressure | 1.0MPa | |
| Protection | EXdIIBT3～T5 | |
| Protection | IP68 | |
| Flange standard | GB2506-89 | GB573-65 |
| Float dia D mm | Φ64 | Φ76 |
