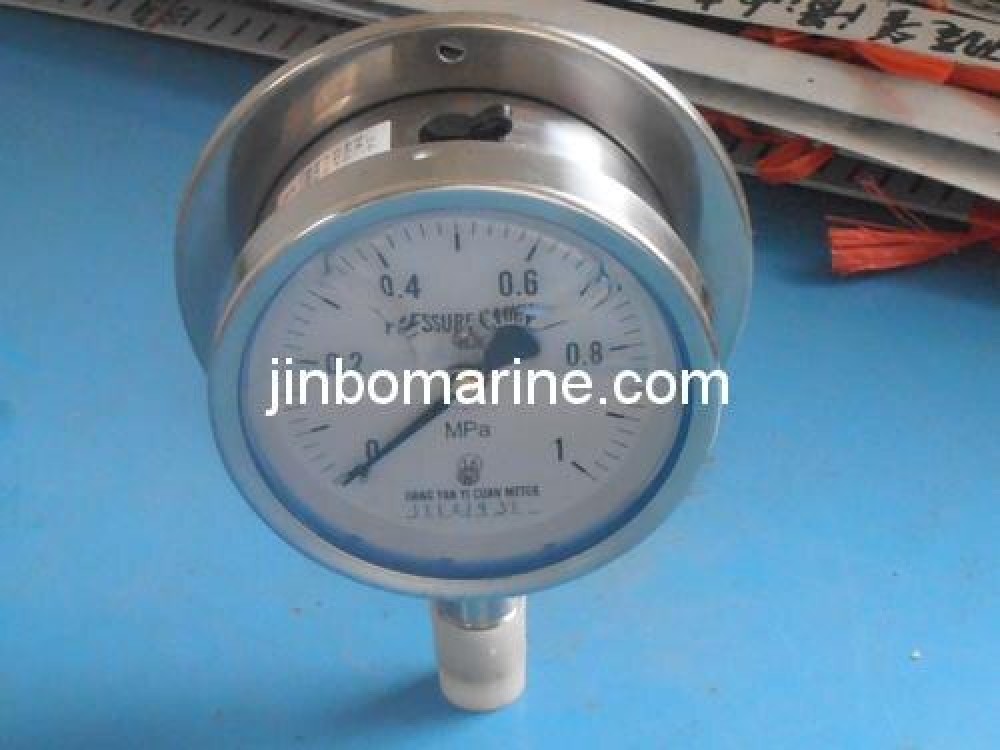

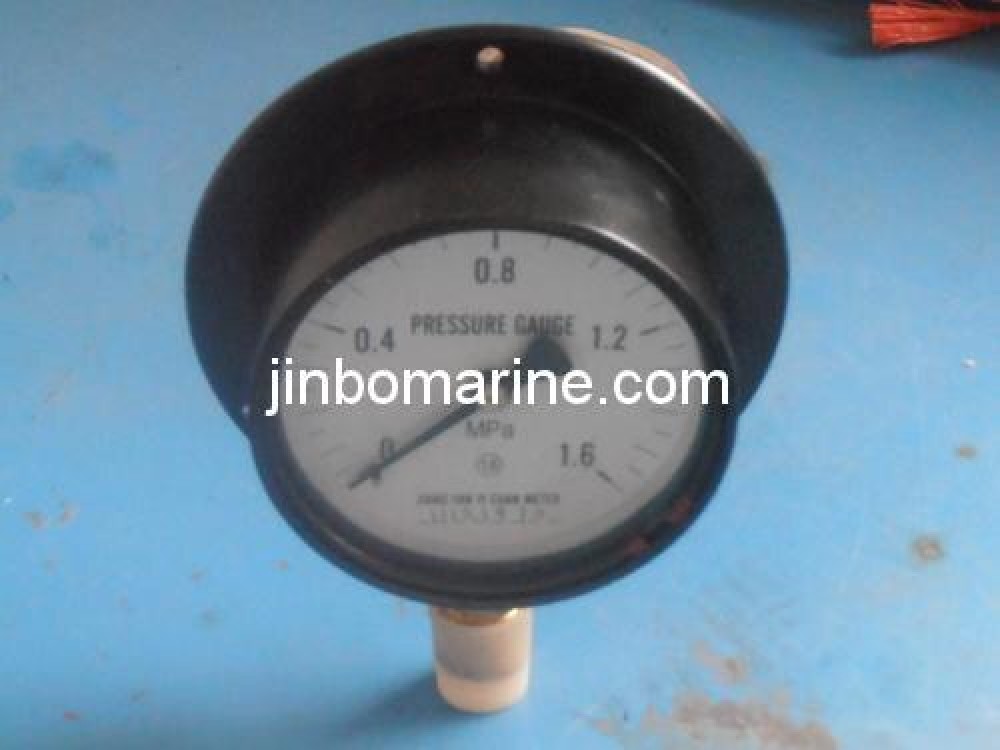

Marine Pressure Gauge YC series

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Pressure Gauge YC series:

Marine Pressure gauge YC series is used for the marine vessels and related equipment, in addition to a general pressure gauge performance, but also has a good seismic performance, especially for marine conditions under mechanical vibration,measure the pressure of the gas, liquid that does not corrode the copper alloy, without crystallization, without precipitation.The dial main scale and the tip are coated with a permanent luminous pointer agent.

Structure Principle:

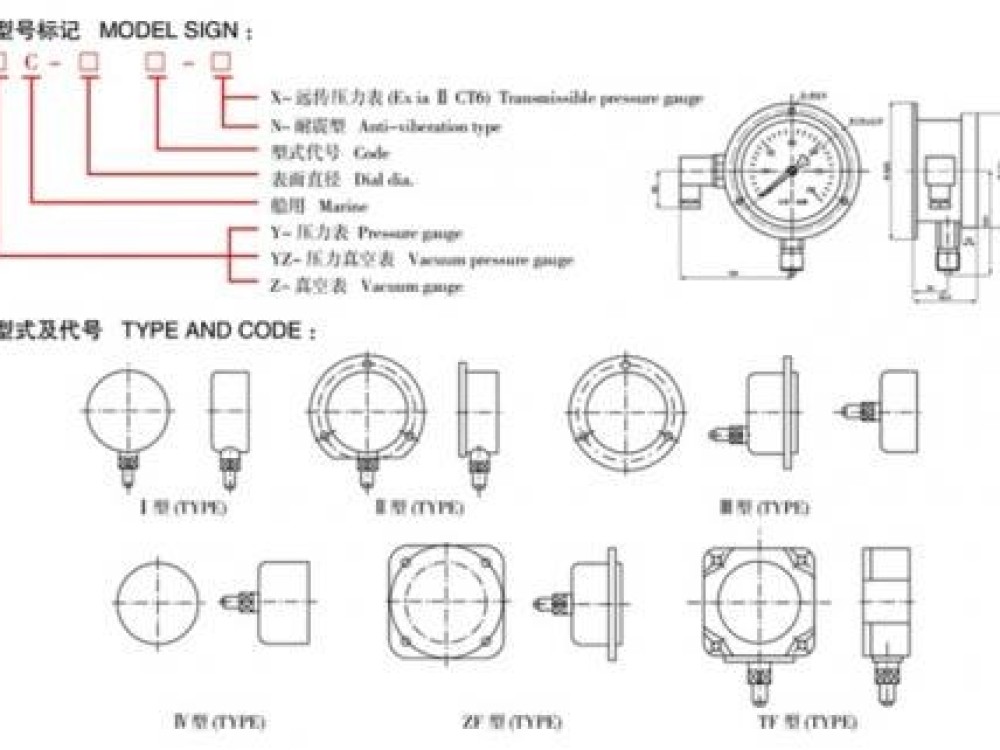

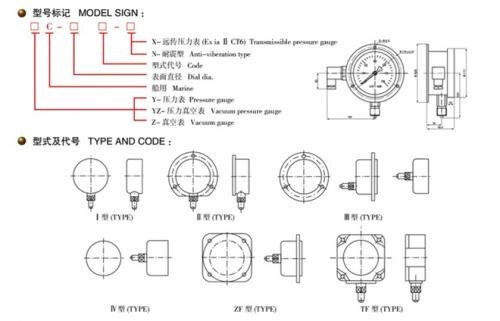

YC series marine pressure gauge consists of pressure systems (including joints, spring tube, etc.), the transmission mechanism, indicating devices and enclosure components.
When the measured medium acts on the spring tube, the pipe ends produce the corresponding elastic deformation - displacement. The deformation - displacement is amplified after transmission and is shown on the dial of the measured pressure by the indicating device.

Specification:

Dial Diameter(mm):60,75,100,150 ;
Measurement Range (Mpa): 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60 -0.10~0, -0.1~-0.06, -0.1~0.15, -0.1~0.3, -0.1~0.5, -0.1~0.9, -0.1~1.5, -0.1~2.4
Accuracy:2.5,1.6,1.0
Connection Thread:M14×1.5,M10×1,M20×1.5,G1/2", G3/8"
Working Temperature:-40℃~70℃

Case Material:iron alloy, aluminum alloy, stainless steel, copper alloy
