Marine Radar

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

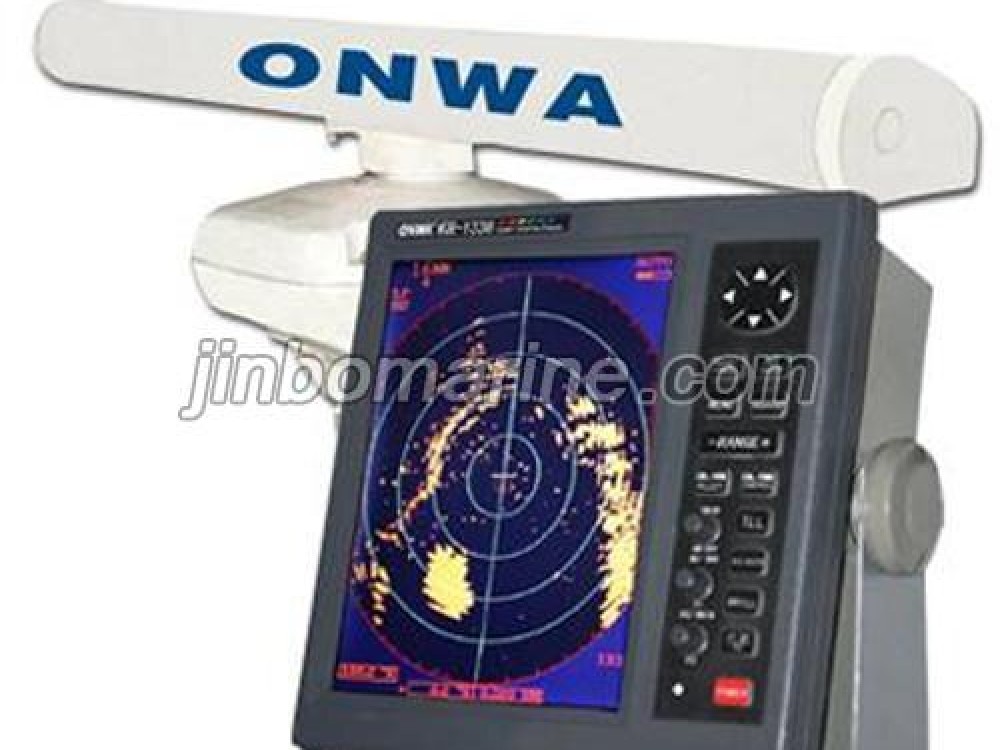

Marine radar

Main advantage

  • Adjustable DATA field, more flexible
  • The system software can be upgraded via USB
  • AIS display function
  • Multi-color selection for target and background
  • Rugged die-cast, waterproof housing
  • “Target Tracking”(TT) function, can track and trace up to 20 targets
  • User-programmable function keys
  • Automatic optimization of radar picture
  • Newly enhanced performance
  • Head-up, Course-up and North-up representation mode
  • Economy mode, Guard Zone Alarm and Watch Mode

ANTENNA RADIATOR

  • KR-1238/1538: 55cm hybrid array, KR-1268/1568: 120cm hybrid array.
  • RF Transceiver
  • Frequency: 9410+/-30Mhz (x-band)
  • Pulse length PRR: 0.08μs/2100 Hz, 0.3μs/1200Hz, 0.8μs/600Hz
  • Peak Output Power: KR-1238/1538: 4kw nominal, KR-1268/1568:6 kw nominal
  • IF: 60MHz
  • Noise Figure: 10db nominal

DISPLAY UNIT

  • Type: LED backlight
  • Mode: Head-up, Course-up, North-up, True Motion
  • Range scales(nm): 0.125, 0.25,0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36
  • Ring: 0.0625, 0.125, 0.25, 0.5, 1, 2, 3, 4, 6, 12
  • Echo Trail: Interval for 15s, 30s, 1min, 3min, 6min, 15min, 30min or continuous.
