Marine Temperature Sensor WZPK Series
- Category:Marine Temperature Instrument
- Material:Stainless Steel
- Certificate:Mill certificate
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Marine Temperature Sensor WZPK Series:
Marine Temperature Sensor WZPK Series is used to measure the temperature of liquid, gas, steam or solid materials in the field of marine, petroleum, chemical industry. The temperature-sensing element is platinum resistor, with the features of high accuracy, stability, reliability, long working life.
Specification:
Diameter: 12mm, 16mm
Supply Power: DC24V+-10%
Measurement Range:-70℃
Graduation: PT100,PT1000
Protective Tube Material: SUS304, SS316
Nominal Pressure: 1.0Mpa
Output Signal: resistance value or 4~20mA
Product Description:
WZPK-21R-C-E Type Temperature Transmitter adopt high quality platium resistor as temperature sensing element,it features high measuring accuracy,steady and reliablity,long lifetime. It has widely used to measure temperature of liquid,gas and steam in ship and other industrial equipment.
Main Technical Specification:
| Model | Temperature-sensing element | Measuring range | Protective cover | Nominal pressure | Output signal | |
| Material | Diameter | |||||
| WZPK |
pt100 pt500 pt1000 |
-70~500 centigrade |
SUS304 SUS316L single/double layer |
12mm 16mm |
1.0Mpa |
Output resistance(2 wires,3 wires) Output DC 4~20mA(2 wires) |

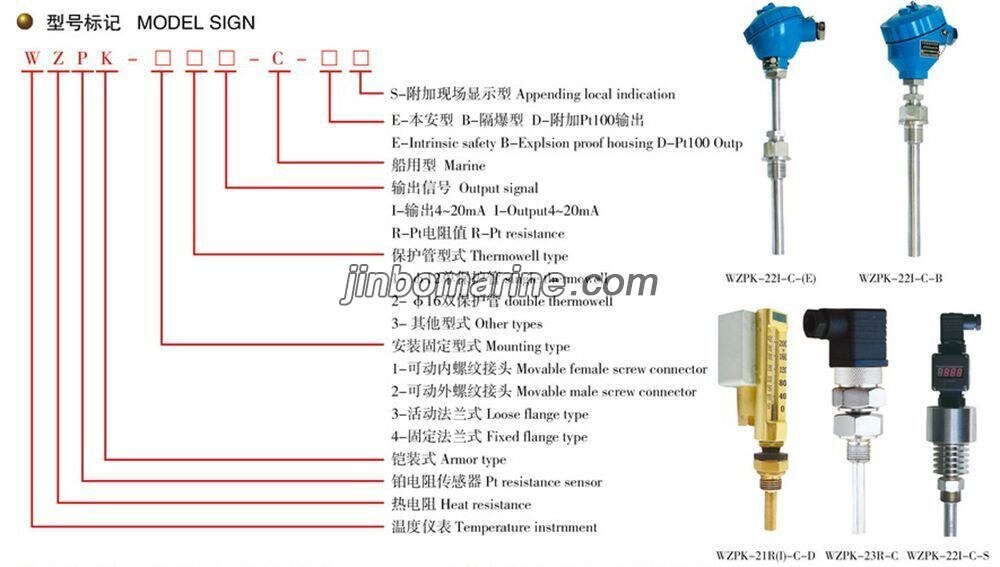

Model Design:
