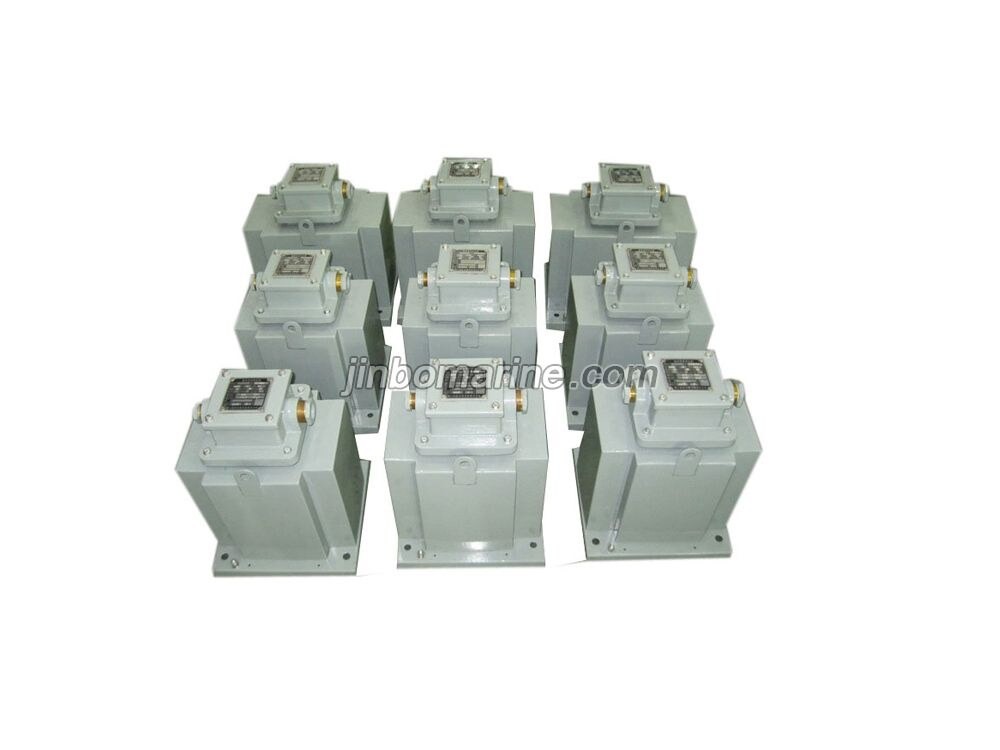

Marine Transformer CDD

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Transformer CDD:

1. The core is made of high quality cold rolled silicon steel sheet carefully fold.

2. The winding by high strength wire, double glass silk covered wire or composite insulation wire winding and become, insulation class is B, F or class H.
3. The transformer enclosure made of high qualified steel plate, the structure on both fully considering the air circulation, and can effectively prevent droplets and prevent rats into the internal.

4. The patch panel and switch terminal inside the transformer enclosure, can be easily through the introduction of cable box on the left or the right of the stuffing box received a patch panel.

Marine Transformer CDD Technical Specifications

Spec Capacity (kVA) Primary rated voltage(V) Voltage combination Link set label Overall dimensions Installation dimensions
50Hz 60Hz 50Hz 60Hz A B C C1 C2
CDD-5 5 400 230 450 400 230 115 450 230 115 1/1-0 550 330 580 260 190
CDD-10 10 620 510 630 330 190
CDD-16 16 700 450 680 330 310
CDD-20 20 700 450 680 380 315
CDD-25 25 750 450 690 380 315
CDD-30 30 750 450 690 380 315
CDD-40 40 800 450 715 565 315
CDD-50 50 850 500 780 540 390
CDD-63 63 900 500 870 540 390
CDD-80 80 950 550 920 550 435
CDD-100 100 1050 600 970 550 490
