Maximum Explosion Pressure Gauge

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

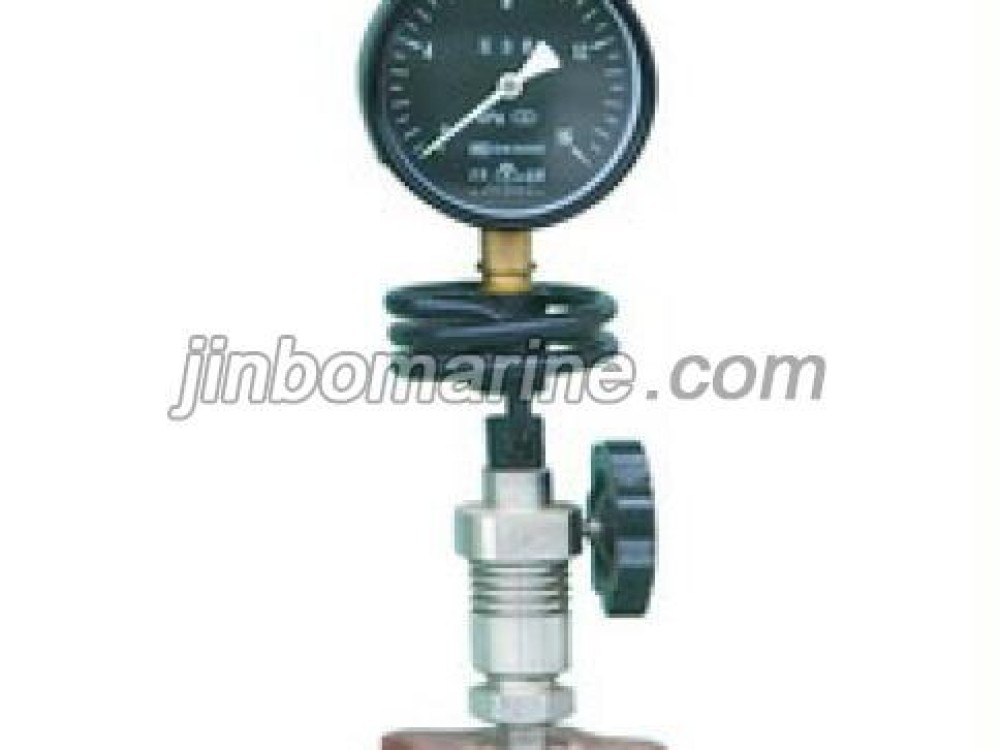

Model:YZC-1D ,YZC-2D

Measure range:0-15~25MPa

Accuracy: 1.6

Outline dimension:Dia 100mm x287 ,Dia 100mmx390

Connection:M27x2.5, M27x3, G3/4" etc or othe rrequired.

Application:measure maximum explosion pressure of diesel engine.

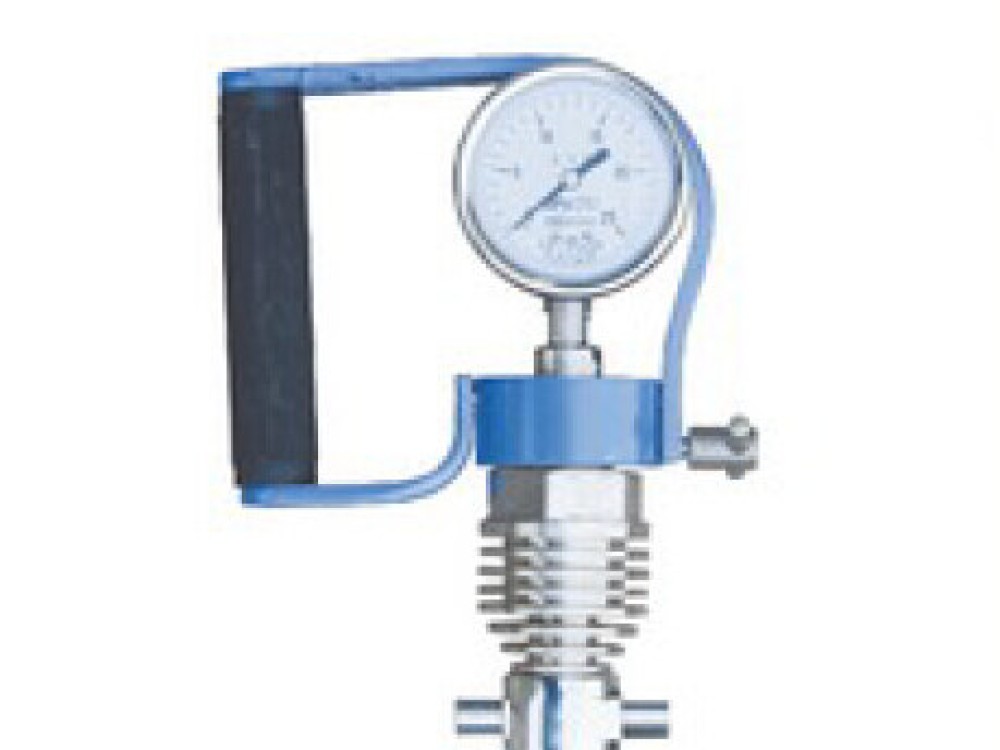

Model:ZD-60J

Measure range:0-10MPa,0-16MPa,0-25MPa

Accuracy: grade 2.5

Outline dimension:155x110x82mm

Connection:M27x2.5, M27x3, G3/4" etc or othe rrequired.

Application:measure maximum explosion pressure of diesel engine.

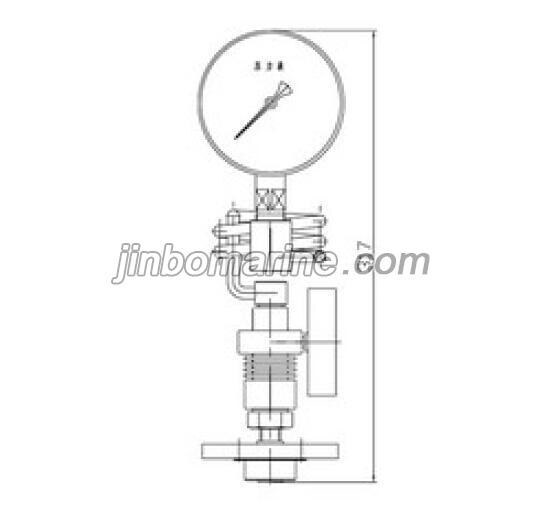

Drawing of YZC-1D ,YZC-2D Maximum Pressure gauge:

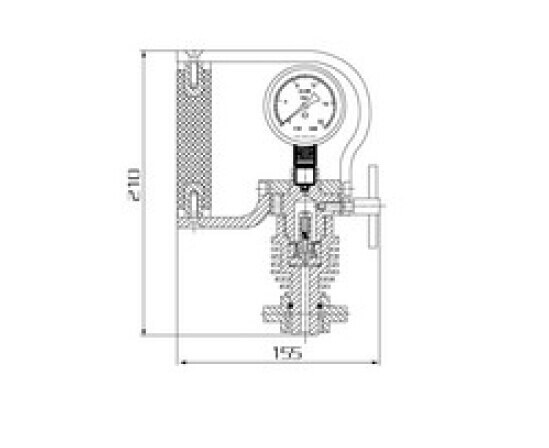

Drawing of ZD-60J Maximum Pressure gauge:
