China Metal Elastic Support:

The metal elastic support(CB*3321-88) is a new style vibration isolator which adopts stainless steel wire as elastomer, it is mainly suitable for ship diesel pipe system and base deck of main engine and auxiliary engine. And it also widely applicable in industry pipeline, power machinery, military and civil vehicle equipment, nuclear industry device and vehicle electroplate etc.

It is specially used for vibration insulation of varying duty and random vibration. When used for pipeline, it needs to cooperate with elastic hangers in generally.

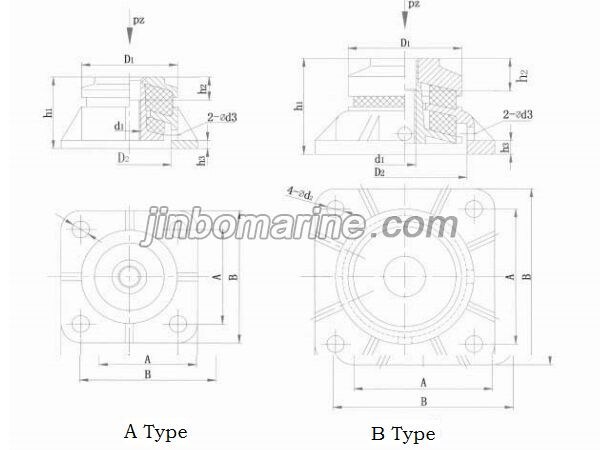

Dimension

Metal Elastic Support Main Specifications

Model A B D1 D2 d1 d2 d3 h1 h2 h3 h4 Weight(kg)
A10 70 98 69 60 M16 12.5 8 53 17 10 0.9
B12 100 130 82 90 M16 12.5 10 71 31 13 1.9
B14 170 220 170 188 M27 17 12 97 55 16 10.0
C12 100 130 82 90 M16 12.5 10 100 54 13 2.2
C14 170 220 170 188 M27 17 12 125 80 16 13.0
D21 100 130 82 90 M16 12.5 10 73 90 13 13 2.2
D41 170 220 170 188 M27 17 12 97 112 16 13 13.0
