MGCH ship and offshore armored halogen-free lighting & Power cable

Request a Quote Not what you need, please send your RFQs via Email.

Details

China MGCH ship and offshore armored halogen-free lighting & Power cable :

Technical Specification:

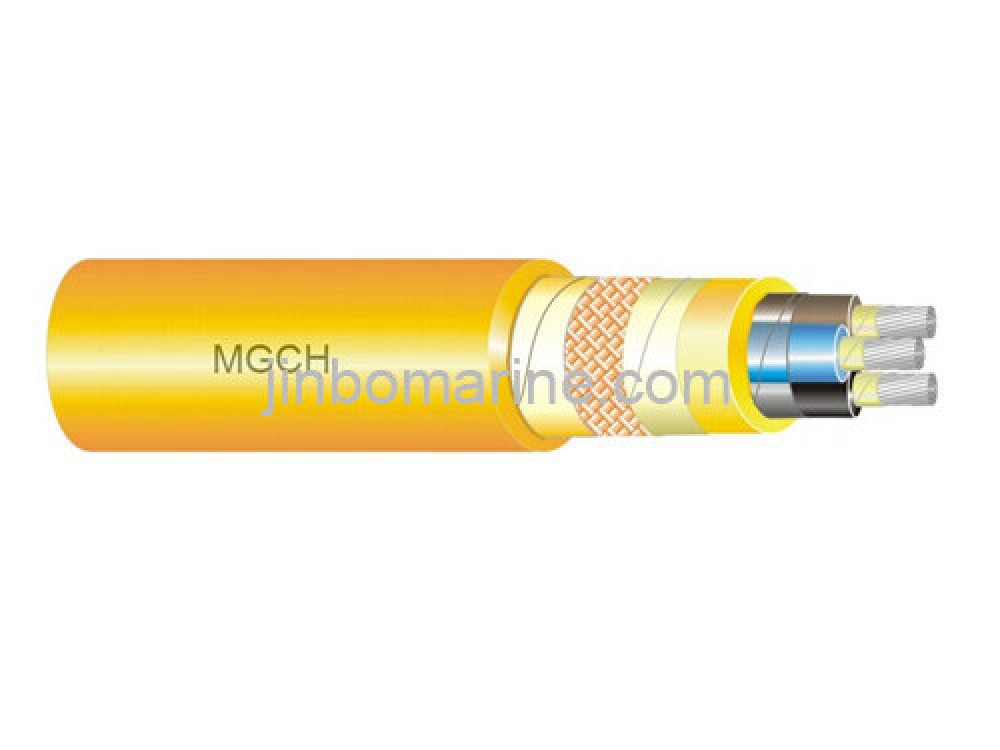

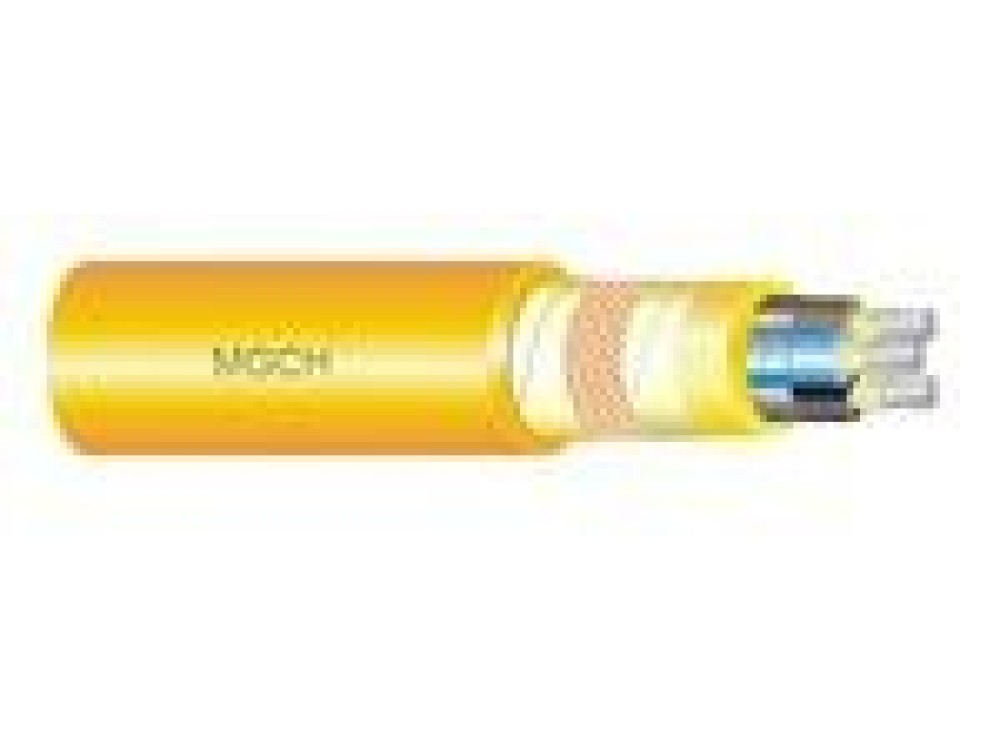

Cable construction

CONDUCTOR : Tinned Copper. IEC 60228 Class 2

INSULATION : HEPR compound.

BEDDING : Tape

SCREEN : Electrolytic copper braided screen ( 90% coverage ). MGCG (EMC) type is wrapped by a coppertape in addition to this braided screen. (100% coverage)

OUTER SHEATH : Halogen-free Polyolefin(SHF1)

Standards

CONSTRUCTION : DIN 89158, IEC 60092/353

MATERIAL : IEC 60092 /350-351-359

FLAME RETARDATION : IEC 60332 / 3 Cat A

SHIELDING EFFECTIVENES (for EMC type) : DIN EN 50147-1

RATED VOLTAGE : 0,6/1 kV

TESTING VOLTAGE : 3,5 kV

Cores & Size

Cores: 1, 2,3,4,5,7,10,12,14,16,19,24

Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300

Type Approval:

ABS, LR, BV, DNV, GL, RINA, NK, KR, CCS
