China Mini Type Lever Block Hoist:

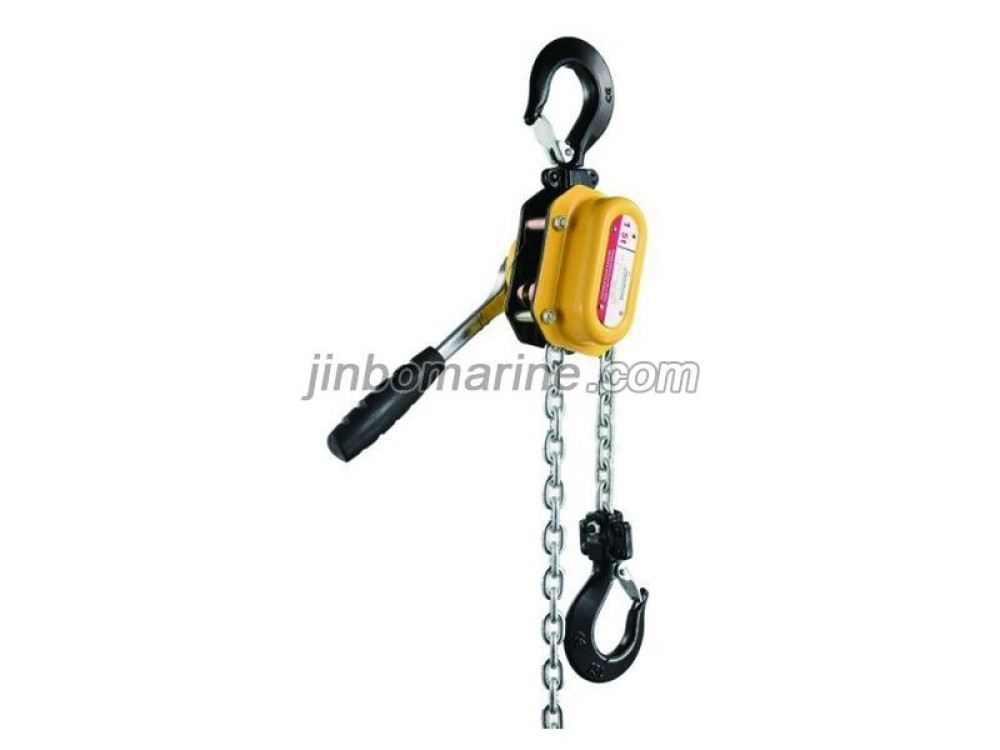

Mini Type Lever Block Hoist
LB 250 lever block is an efficient and versatile lifting tools, which is capable of being widely used in factory Dower plants communication, laboratory, transport and instaling machines, lifting goods, dragging loadsand tightening goods etc.
| Model | DC250 | DC500 | DC750 | DC1500 | DC3000 | DC600 | ||
| Traction | LBS | 550 | 1100 | 1650 | 3300 | 6600 | 13200 | |
| Standardlift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running Test | kg | 375 | 750 | 1125 | 2250 | 4500 | 9000 | |
| Effortrequired rolift max load | n | 260 | 260 | 220 | 240 | 350 | 380 | |
| Load chaindiameter | mm | 4 | 4 | 5 | 7 | 9 | 9 | |
| The weight of each add a meter | kg/m | 0.346 | 0.346 | 0.541 | 1.1 | 1.8 | 1.8 | |
| Packing(L*W*H) | cm | 21x12.5x11.5 | 23.5x13.5x12 | 30x14x14.5 | 33x18x15.7 | 44x20x19 | 49.5x23.5x21.5 | |
| Net weight | kg | 2.2 | 3.2 | 4.7 | 7.6 | 14 | 22 | |
| Packaged weight | kg | 2.4 | 3.4 | 5 | 8 | 14.5 | 22.5 | |
