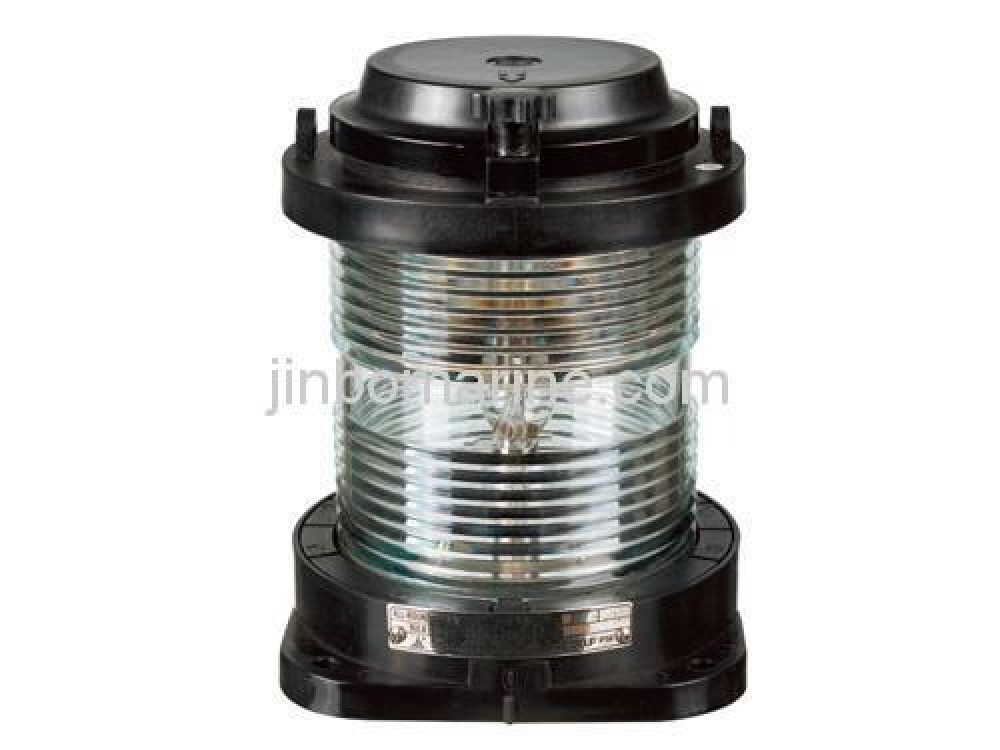

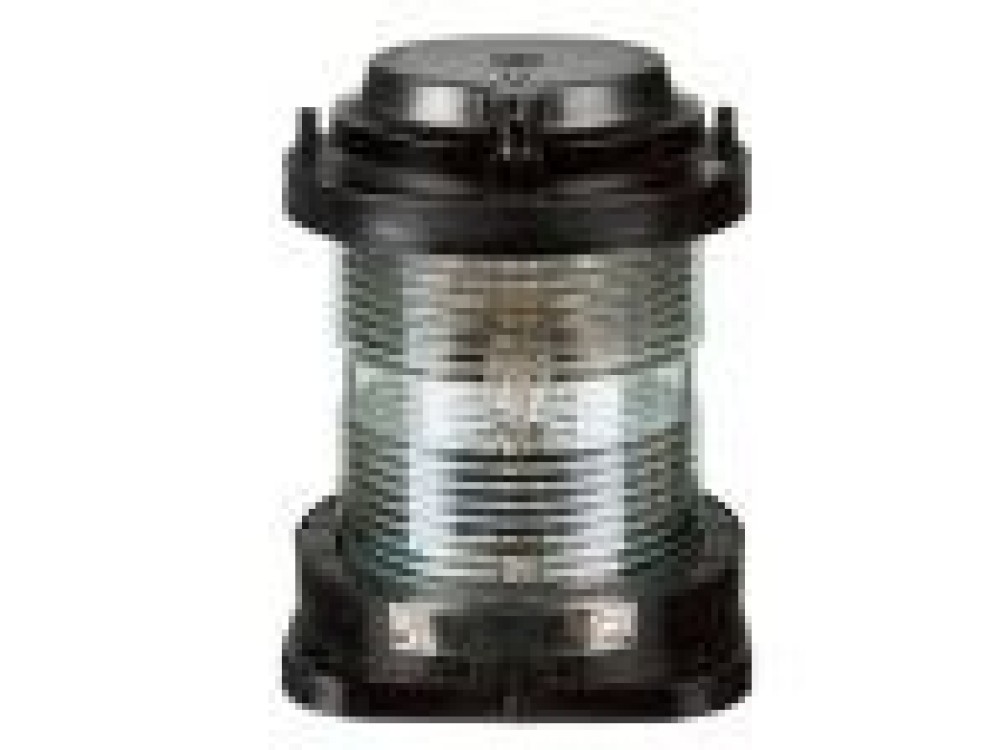

Navigation Signal Light CXH-21P
- Category:Marine Navigation Signal Light
- Material:Engineering Plastic, Steel, Stainless Steel
- Standards:IEC60598-1-2008
- Certificate:CCS Type Approval Certificate
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Navigation Signal Light CXH-21P:
The Navigation Signal Light used to the ship with length 50M or above as lamp signal liaison when night navigation.
Product Advantage:
1. The signal lights have the seal structure, waterproof under the extreme enviroment.
2. The sheel is made of high-strength engineering plastic PA+GF, the lamp shade use injection of PC, lens hood of good quality
3. Special light bulb with average life up to 700hrs.
4. Working Temperature:-30℃-55℃
Standards:
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Voltage | 12V | 24V |
| Power | 25W | 25W |
| Luminous Intensity | 40cd | 60cd |
| Lamp Holder | Bay15d | |
| Protection Class | IP56 | |
| Cable Outside Diameter | Dia.9 | |
| Name | Type | Visibility | Level Arc | Color | Weight |
| Starboard Light | CXH1-21P | 2n.m | 112.5o | Green | 1.2KGS |
| Port Light | CXH2-21P | 3n.m | 112.5o | Red | 1.2KGS |
| Masthead Light | CXH3-21P | 5n.m | 225o | White | 1.2KGS |
| Stern Light | CXH4-21P | 2n.m | 135o | White/Yellow | 1.2KGS |
| All-round- Light | CXH6-21P | 3n.m | 360o | Red/green/white | 1.2KGS |
