NSU Type NOx Sensor

NSU Type NOx sensor is a unique instrument measuring NOx and 02parameters simultaneously. The sensor can local display.

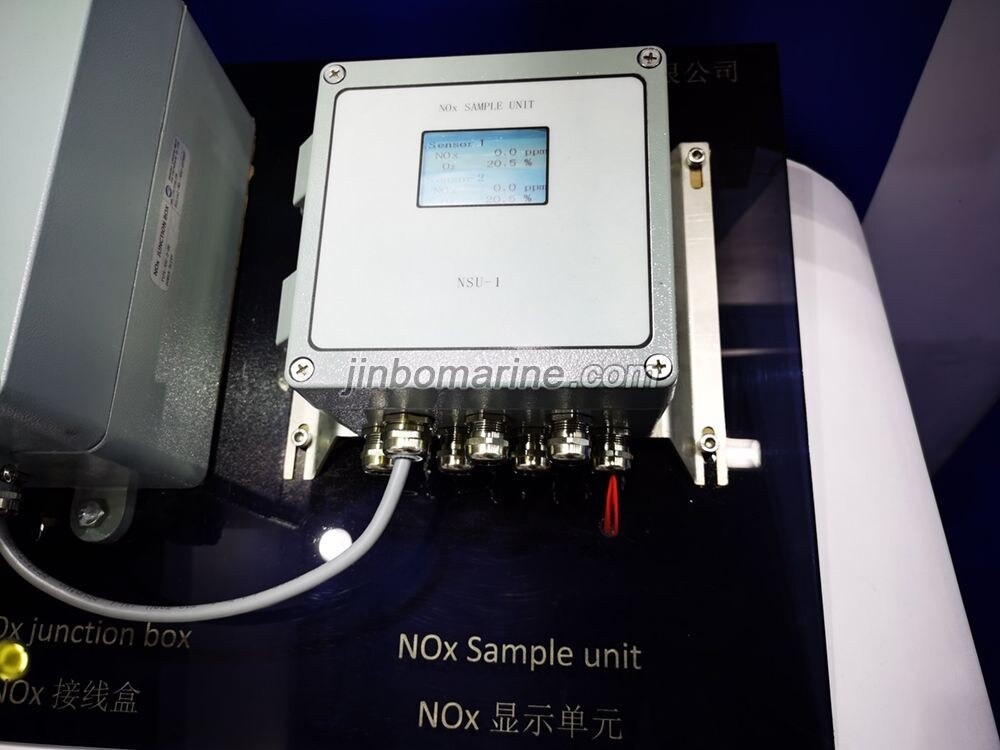

NSU Type NOx sensor include : NOx sample unit (type NSU-1), NOx Junction box(type NSU-2) and probe unit.

NSU Type NOx sensor is equipped with a 4~20mA interface transmitter output, whichcan be used in analog receiving occasions.

NOx and O2 measurement in one transmitter.

Modular design, easy installation and maintenance.

Local display function

4-20mA analog outputs

Operating temperature: -20 ... +70*C

Humidity range: Non-condensing

Mechanical Specifications

Housing material: Cast aluminum

IP rating:IP65

Display

Menu languages:English

Input and outputs

Operating voltage: 19 ... 30VDC

Analog Outputs:

Current output: 4 ... 20 mA

Accuracy of analog outputs: ±0.3% full scale

NOx: 0-2000PPM

O2:0-100%
