Oil Lubricated Stern Tube Seal for Shaft Size 50mm to 1150mm

Request a Quote Not what you need, please send your RFQs via Email.

Details

Application

It can be used to all kinds of vessels which working medium is oil.

Technical Specification

Diameter of stern shaft: 50-1150mm

Diameter of Waterproof liner of starn shafts:70-1250mm

Lubricating Oil Working Pressure:1-2bar

Lubricating Oil Working Temperature: -25℃- +110℃

Line Speed of Stern Shaft Wearproof Liner: <=7m/sec

Average Leakage: 5-30ml/h

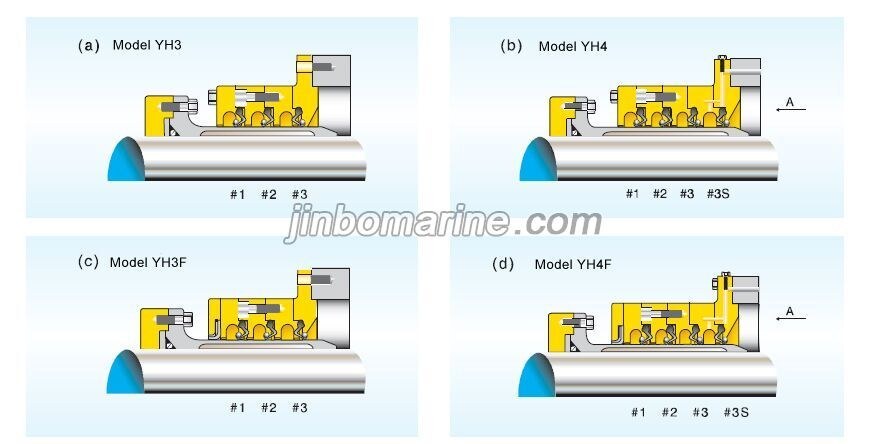

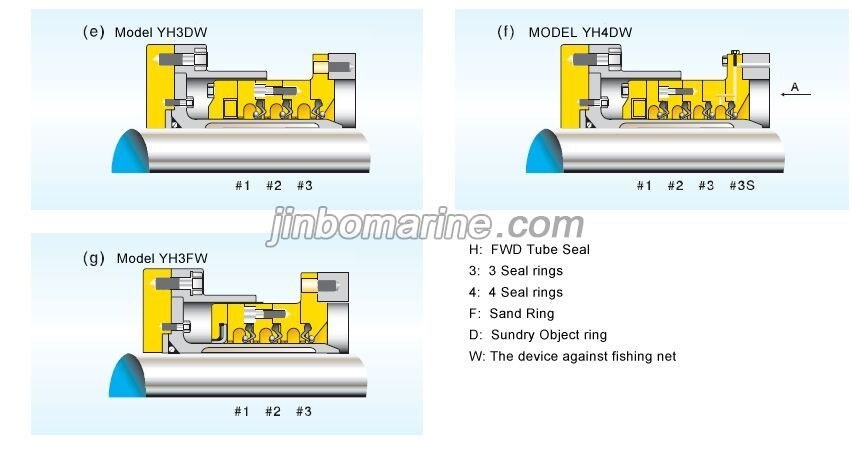

Aft Stern Tube Sealing Type

Table 1

Table 2

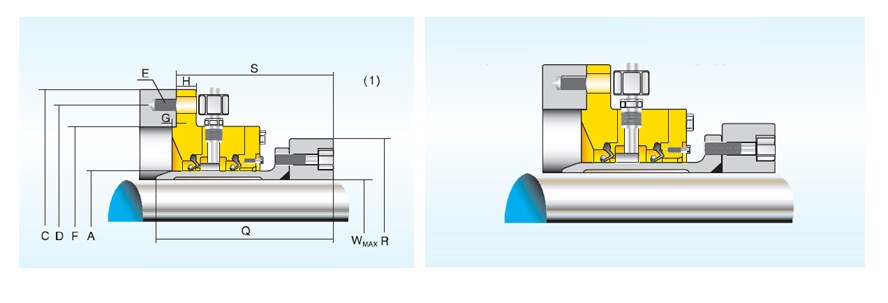

FWD Stern Tube Seal Type

YH3 Oil Lubricated AFT Stern Tube Sealing for Shaft Size 170mm

YH3 Oil Lubricated AFT Stern Tube Sealing for Shaft Size 170mm

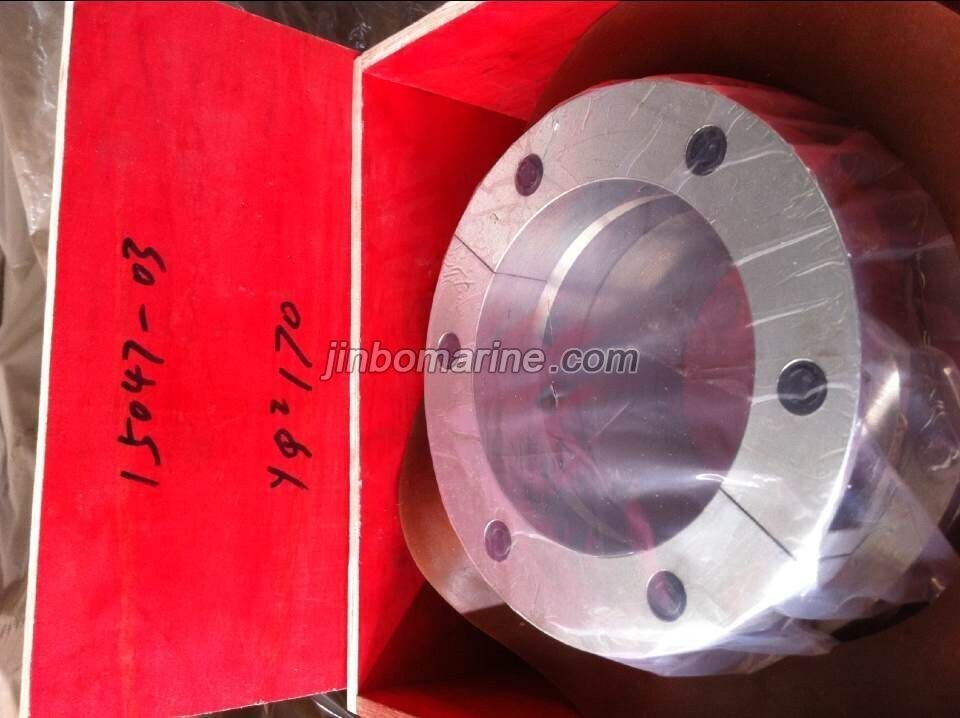

YQ2 Oil Lubricated FWD Stern Tube Sealing for Shaft Size 170mm

YQ2 Oil Lubricated FWD Stern Tube Sealing for Shaft Size 170mm

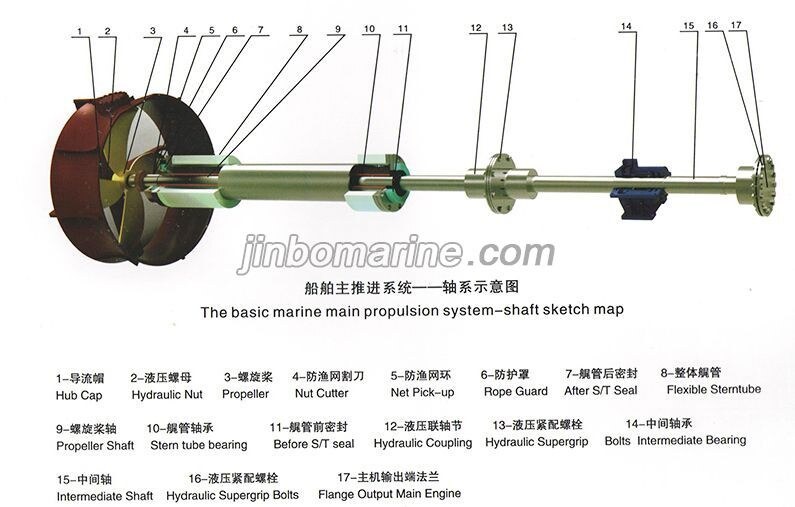

Ship Shaft Assembly
