PSA Fall Protection Anchorage Point

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China PSA Fall Protection Anchorage Point:

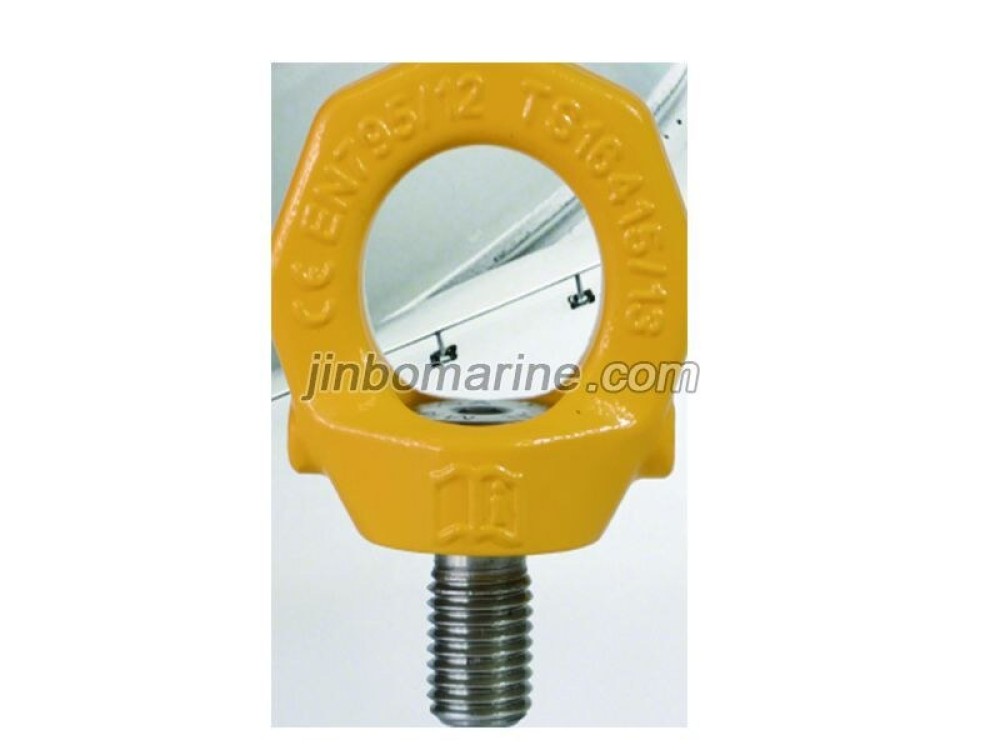

PSA Fall Protection Anchorage Point

Metric Thread:

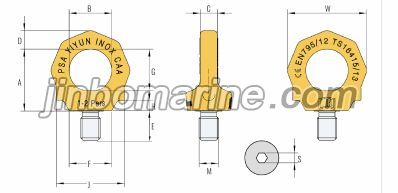

ITEM NO. M Pers Dimensional Parameters/mm Locking Torque /Nm Kg
A B C D E F G H J S W
PSA INOX-M12 M12x1.75 1Pers 42 30 10 13 18 33 29 7 48 8 55 10 0.2
PSA INOX-M16 M16x2.0 l-2Pers 51 35 14 15 24 35 34 8 56 8 65 30 0.35
PSA INOX-M20 M20x2.5 1-2Pers 57.5 40 17 19 30 43 37 9.5 68 12 78 70 0.6
PSA INOX-M12 L-50 M12x1.75 1Pers 42 30 10 13 50 33 29 7 48 8 55 10 0.22
PSA INOX-M16 L-50 M16x2.0 1-2Pers 51 35 14 15 50 35 34 8 56 8 65 30 0.48
PSA INOX-M16 L-120 M16x2.0 1-2Pers 51 35 14 15 120 35 34 8 56 8 65 30 0.56
PSA INOX-M20 L-60 M20x2.5 1-2Pers 57.5 40 17 19 60 43 37 9.5 68 12 78 70 0.63

UNC Thread:

ITEM NO. M Pers Dimensional Parameters/mm Locking Torque /Nm Kg
A B C D E F G H J S W
PSA INOX-1/2 1/2-13UNC-2A 1Pers 42 30 10 13 18 33 29 7 48 8 55 10 0.2
PSA INOX-5/8 5/8-11UNC-2A 1-2Pers 51 35 14 15 24 35 34 8 56 8 65 30 0.4
PSA INOX-3/4 3/4-10UNC-2A 1-2Pers 57.5 40 17 19 30 43 37 10 68 12 78 70 0.6
