RDLM LP Pressure Type Level Gauge with Draft Gauging System
Application
The device is designed for use in fresh water, sea water and fuel tanks, and as a draft gauge.
Protecting from sea corrosive, its sensor's material is corrosion-resistant in ...
RDLM Series Level Monitoring and Alarm System1 PhotosISO9001 Supplier
Loading product images...

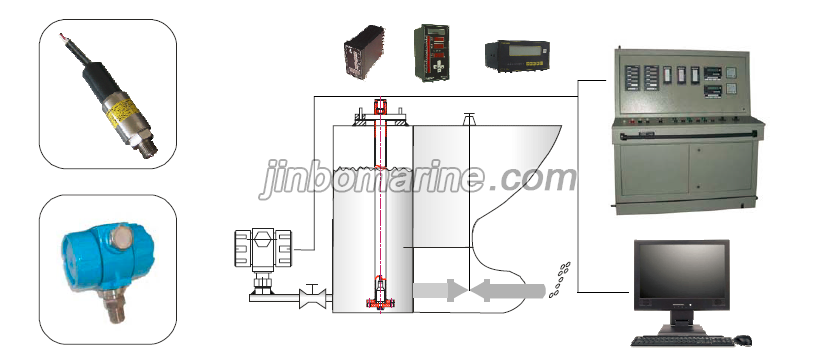

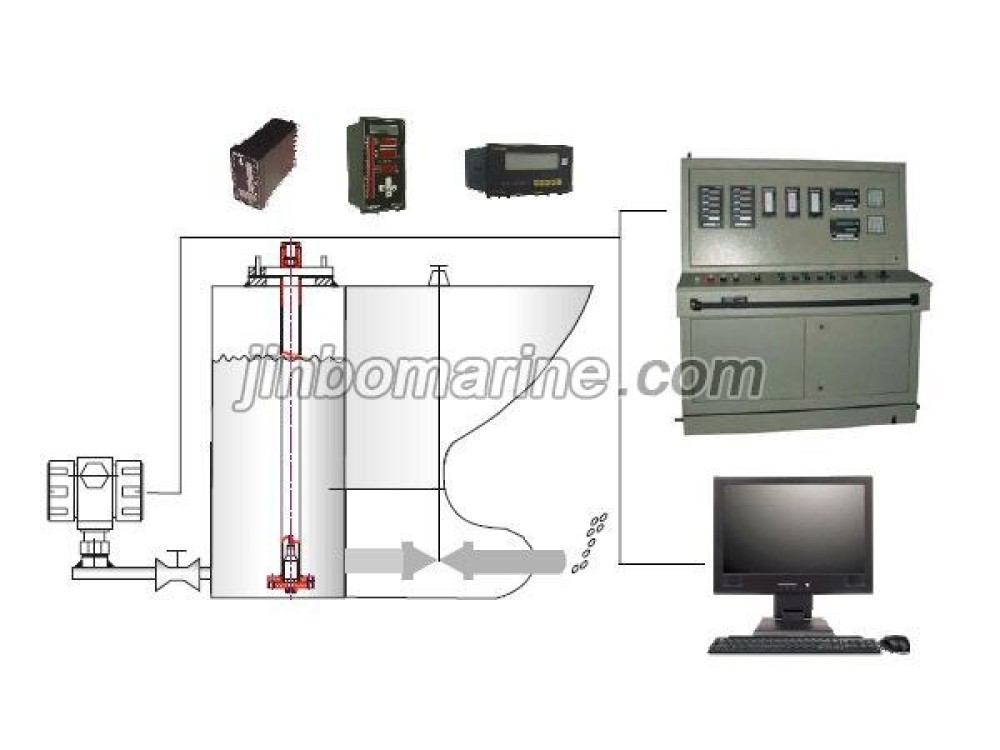

RDLM LP Pressure Type Level Gauge with Draft Gauging System
The device is designed for use in fresh water, sea water and fuel tanks, and as a draft gauge. Protecting from sea corrosive, its sensor's material is corrosion-resistant in order to prolong the useful life And reduce the maintenance requirement. Converting the water pressure to digital single through Sensor, send the signal to the display unit.
Tech. Spec.
Power supply: AC220V/50Hz, AC110V/60Hz RS485 communication interface System accuracy: 0.1 FS Ambient temperature: -25 +80 degree Blind zone: 100mm Connect cable: 2 2.5mm (Power) 2 1.0mm screened cable (Signal) Range::0 10m, 0 30m Consumption: 5w per channel Type approval: CCS, GL, NK
Characteristic
High/low alarm and ultimate high/low alarm, with audio-visual alarm Protection class of our pressure transmitter is IP56 or IP68. Revise the fault of measured specific gravity RS485 communication interface RDLY Pressure Transmitter is high accuracy and with certificate of CCS, CMC Self-checking, sensor failure function
Send us your inquiry now
We will respond within 24 hours with the sales or technical contact.
Quality Assurance
Safe and reliable products for marine & offshore projects.
