Rubber Elastic Support
- Category:Hanger And Elastic Support
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

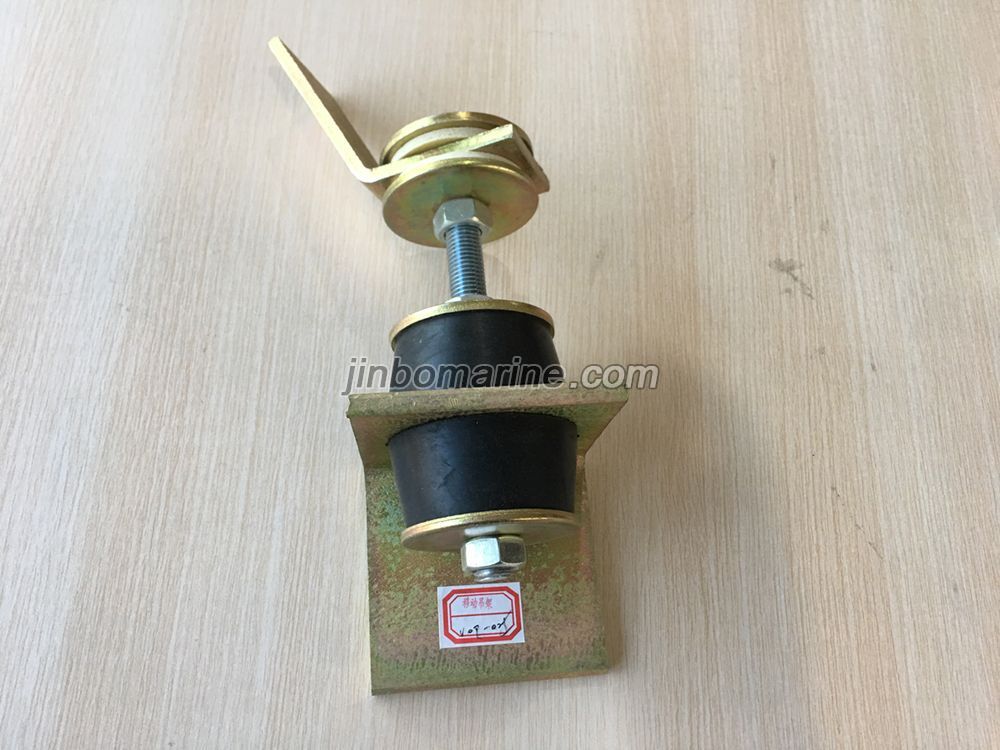

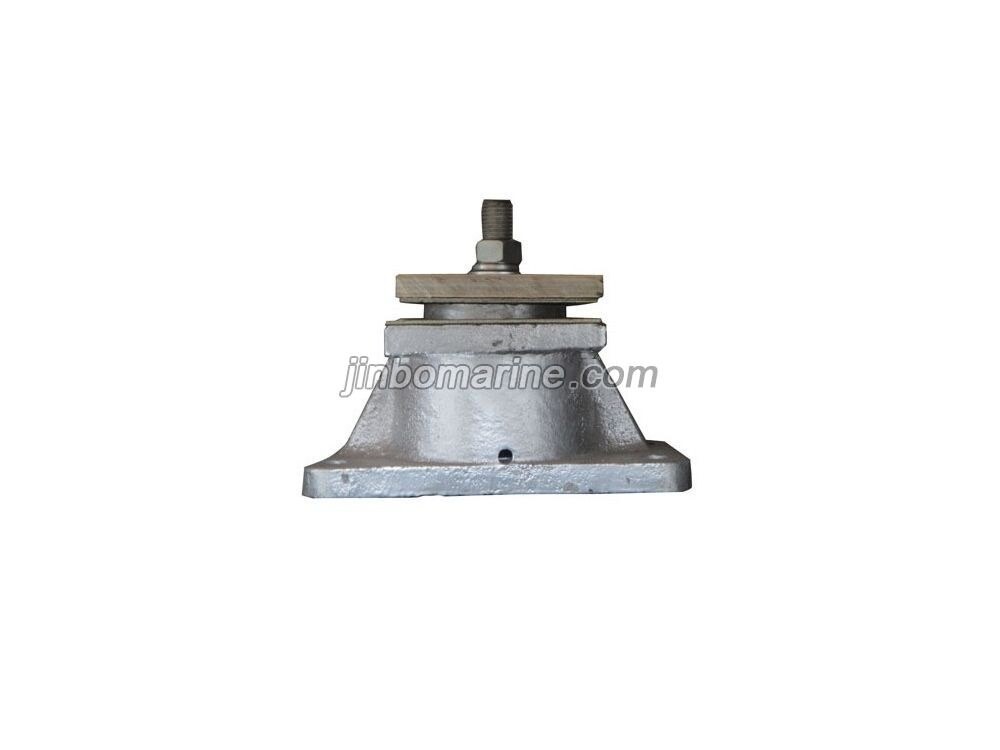

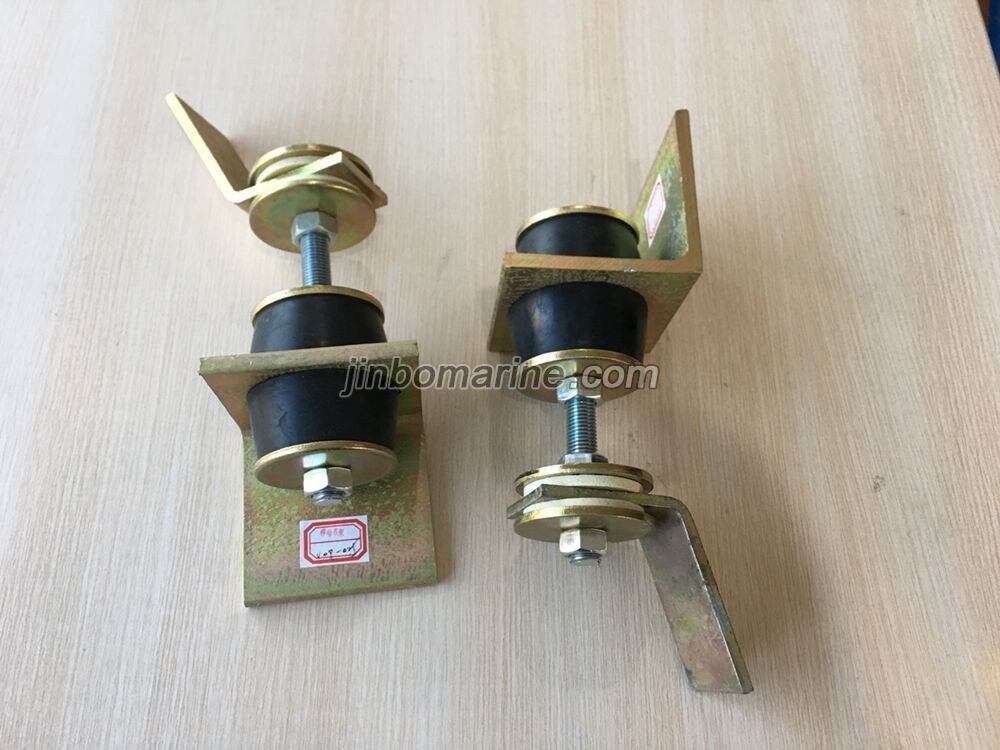

China Rubber Elastic Support:
The elastic elements are made by special type rubber, it has fine vibration resistance and impact resistance.
Advantage: High temperature, low temperature resistance, oil resistance and aging resistance.
The support adopts the insulating cushion so it can receive high load and the higher temperature.
Applicable range: suitable for exhaust pipe.

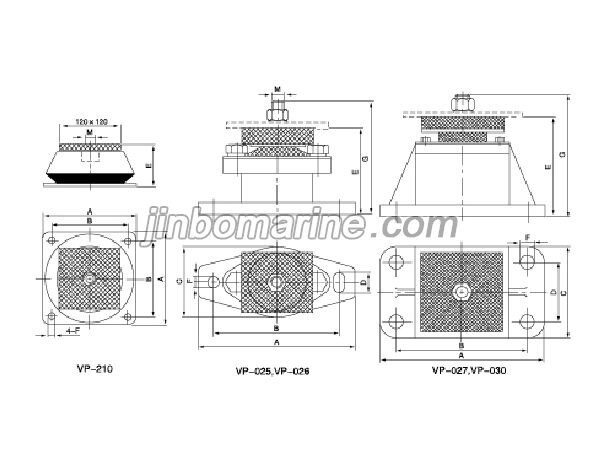

Dimension
Rubber Elastic Support Main Specifications
| Model | Size | Static Load | Workload | |||||||
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | M(mm) | kgf | kgf | |
| VP-021 | 184 | 150 | 85 | 13 | M20 | 400 | 120 | |||
| VP-025 | 155 | 124 | 70 | 20 | 87 | 11 | 115 | M12 | 500 | 160 |
| VP-026 | 160 | 130 | 92 | 25 | 100 | 13 | 125 | M16 | 1000 | 350 |
| VP-027 | 200 | 160 | 114 | 74 | 126 | 17 | 165 | M16 | 1500 | 500 |
| VP-030 | 235 | 196 | 132 | 75 | 144 | 17 | 165 | M16 | 2000 | 700 |
