S14 BU(c) Halogen-free Fire-Resistant Offshore Communication Cable NEK606

  • Category:NEK606 Cable
  • Material:Tinned Copper/Mica Tape+EPR insulation/SHF2 Sheath or SHF Mud
  • Standards:NEK 606-2004
  • Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China S14 BU(c) Halogen-free Fire-Resistant Offshore Communication Cable NEK606:

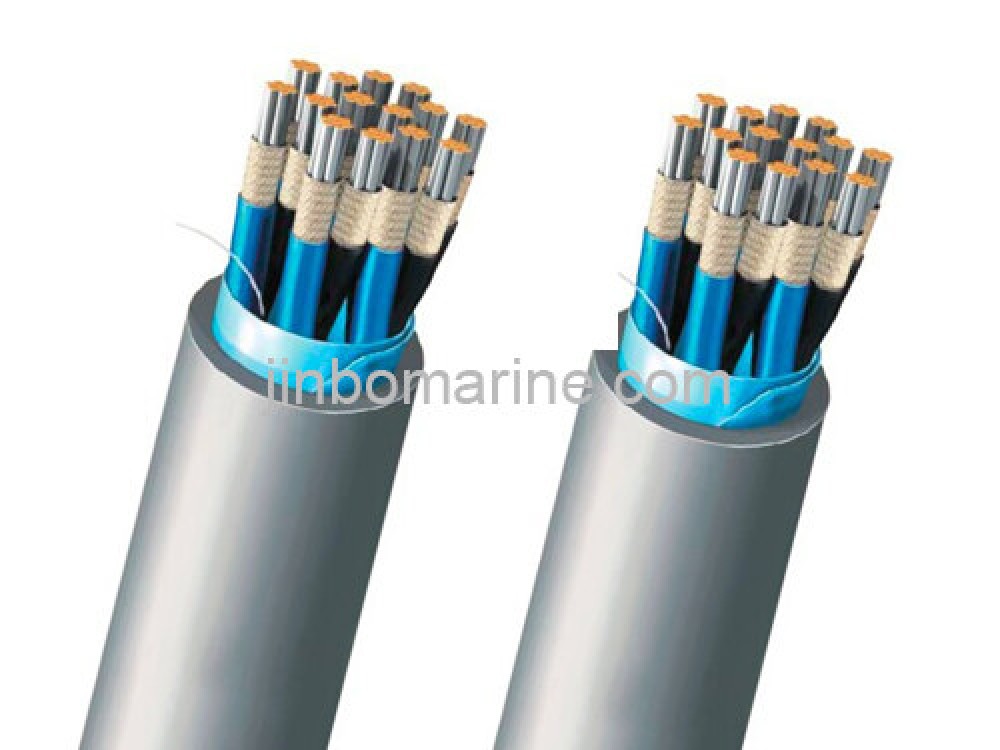

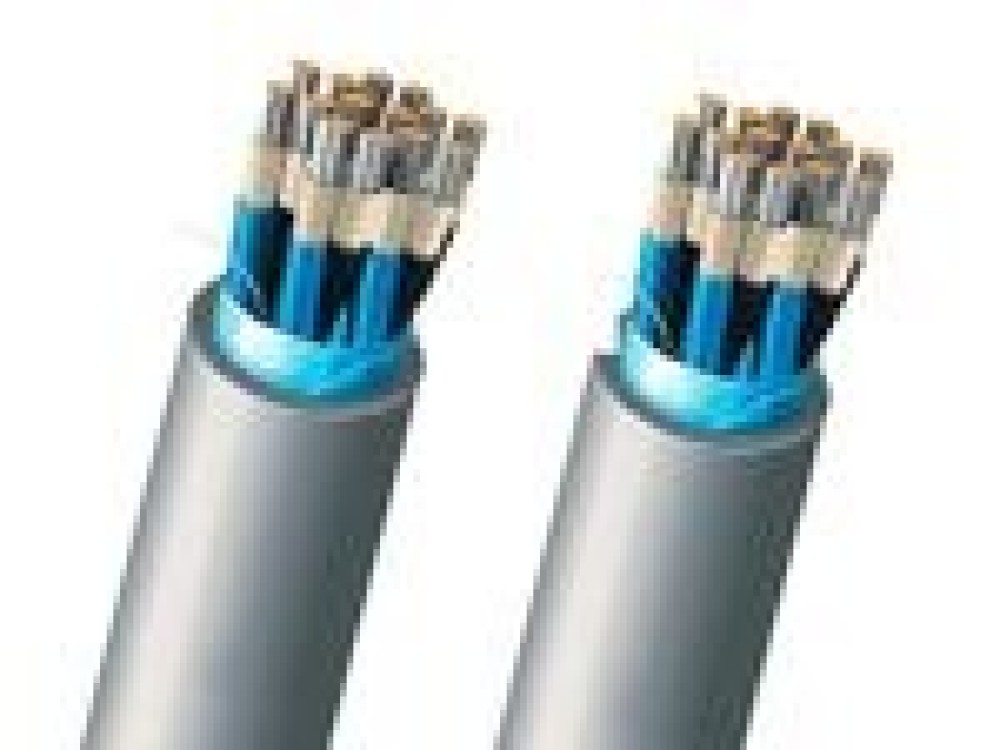

S14 BU(c) Halogen-free Fire-resistant Offshore Instrumentation & Communication Unarmoured Cable with collective screen

Cable Construction

Classification

Code

Construction details

Conductor

Tinned Annealed Stranded Copper Wire

Insulation

B

Mica Tape + EP Rubber

Twisting

Color coded cores twisted together for pair or triple

Collective Screen

(c)

Both Pair/Triple are collective screened by aluminum polyester with copper wire

Outer Sheath

U

Halogen-free Thermoset compound SHF2

Halogen-free mud resistant thermoset compound, SHF Mud

Standards

Design : IEC 60092-376

NEK 606-2004

IEC60331 Fire-resistant

IEC 60332-3 Flame Retardant Category A

IEC60754-1 Halogen-free

IEC 61034-1 Low Smoke

Cores & Size

Cores: 1P 2P 3P 4P 7P 8P 10P 12P 14P 16P 18P 19P 24P 32P

1T 2T 3T 4T 7T 8T 10T 12T 14T 16T 18T 19T 24T 32T

Size (sqmm): 0.75 1 1.5

Feature

Halogen-free, Low Smoke, Flame retardant

Application:

The cable is fixed installation for Instrumentation, Communication, Control and Alarm system in both explosion risk and safe area; SHF Mud for Installation in areas expose to Mud and Drilling or Cleaning fluids

Sheath Marking:

 Manufacture’s Name

 Cable Type

 Voltage Rating

 Numbers of Cores/Paires/Triples

 Cross-section of conductors

 Standards

 Meters

 Year of Manufacture

The marking shall be repeated at every 1M.
