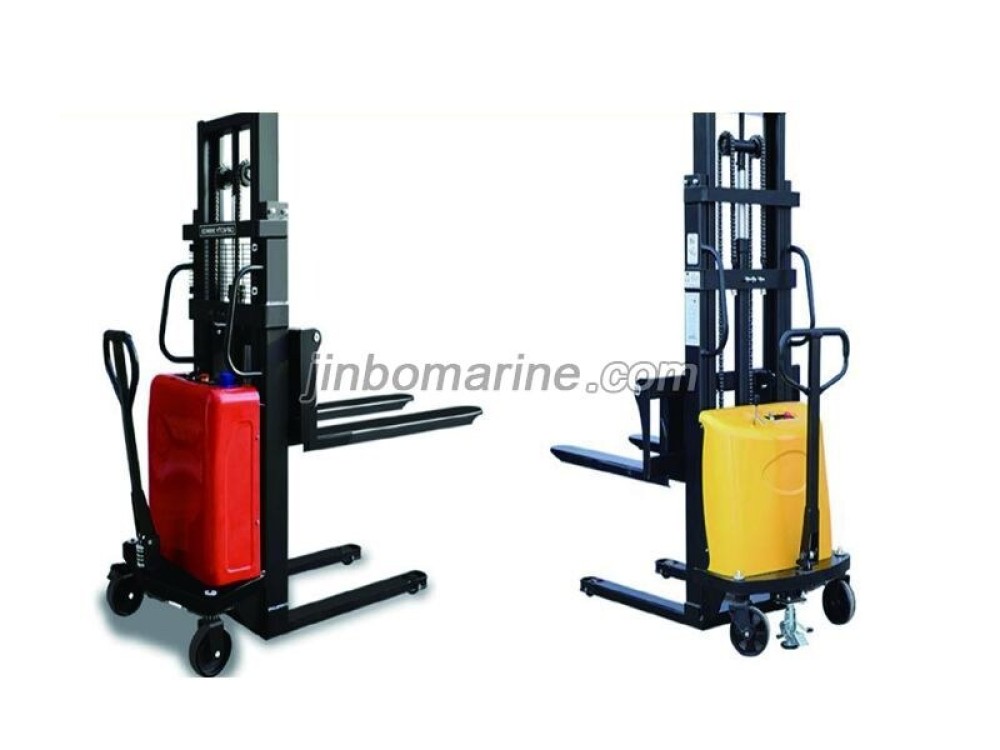

Semi Electric Forklift
Semi Electric Forklift Model FG-1016/1020/1025/1030/1035 FG-1516/1520/1525/1530/1535 FG-2016/20...
Loading product images...
PDF Datasheet
China Semi Electric Forklift:
Semi Electric Forklift
| Model | FG-1016/1020/1025/1030/1035 | FG-1516/1520/1525/1530/1535 | FG-2016/2020 |
|---|---|---|---|
| Capacity(kg) | 1000 | 1500 | 2000 |
| Load Center(mm) | 400 | 400 | 400 |
| Lifting Height(mm) | 1600/2000/2500/3000/3500 | 1600/2000/2500/3000/3500 | 1600/2000 |
| Min Fork Height(mm) | 90 | 90 | 90 |
| Fork Length(mm) | 1000/1150 | 1000/1150 | 1000/1150 |
| Fork Width(mm) | 160 | 160 | 160 |
| Fork outside width(mm) | 340-680 | 340-680 | 340-680 |
| Turning Radius(mm) | 1350 | 1450 | 1450 |
| Motor Power(v/kw) | 12V/1.6kw | 12V/1.6kw | 12V/1.6kw |
| Battey(v/ah) | 12V/120Ah | 12V/120Ah | 12V/120Ah |
| Overall Length(mm) | 1660 | 1660 | 1660 |
| Overall Width(mm) | 865 | 930 | 865 |
| Frame Static Height(mm） | 2080/1580/1830/2080/2330 | 2080/1580/1830/2080/2330 | 2080/1580 |
| Loading Wheel(mm) | φ74*70 | φ74*70 | φ74*70 |
| Steering Wheel(mm) | φ180*50 | φ180*50 | φ180*50 |
| Weight(kg) | 360/410/430/450/470 | 375/450/475/495/520 | 390/470 |
