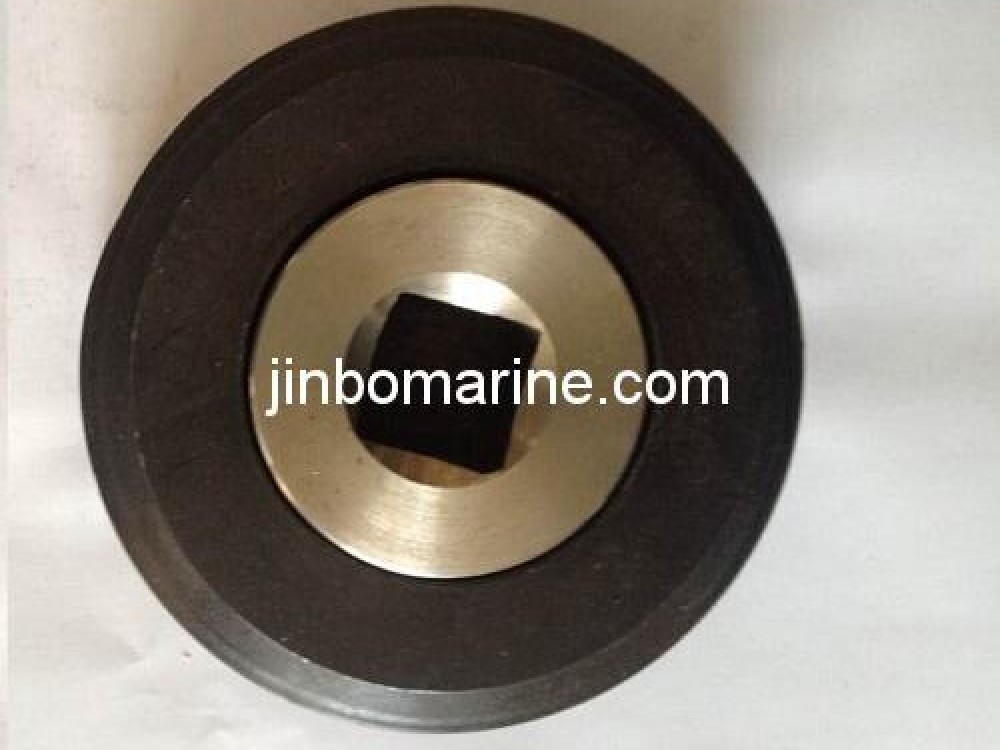

China Ship Bottom Drain Plug Type A CB/T254-1997:

Ship Bottom Drain Plug is the water & oil drain plug of the water tank & oil tank on the ship bottom. It has two types, Type A & Type B.

Design Standard: CB/T254-1997 (not suitable for the bottom plate less than 6mm)

Type Name Plug Applicable Place
Type & Code Material
A Bottom Drain Plug without Shoulder Hexagonal (O) Stainless Steel Ship Bottom Oil Tank
Rectangular (W) Ship Bottom Water Tank
B Bottom Drain Plug with Shoulder Hexagonal (O) Brass Ship Bottom Oil Tank
Rectangular (W) Ship Bottom Water Tank
*There are should be 1pc of galvanized spanner for each 10pcs.

*It should be done the seal test with the tanker after the installment.

Main Parts & Material:

Seat Plate---Carbon Steel

Plug---Stainless Steel or Brass

Packing---Pb4 or Neoprene

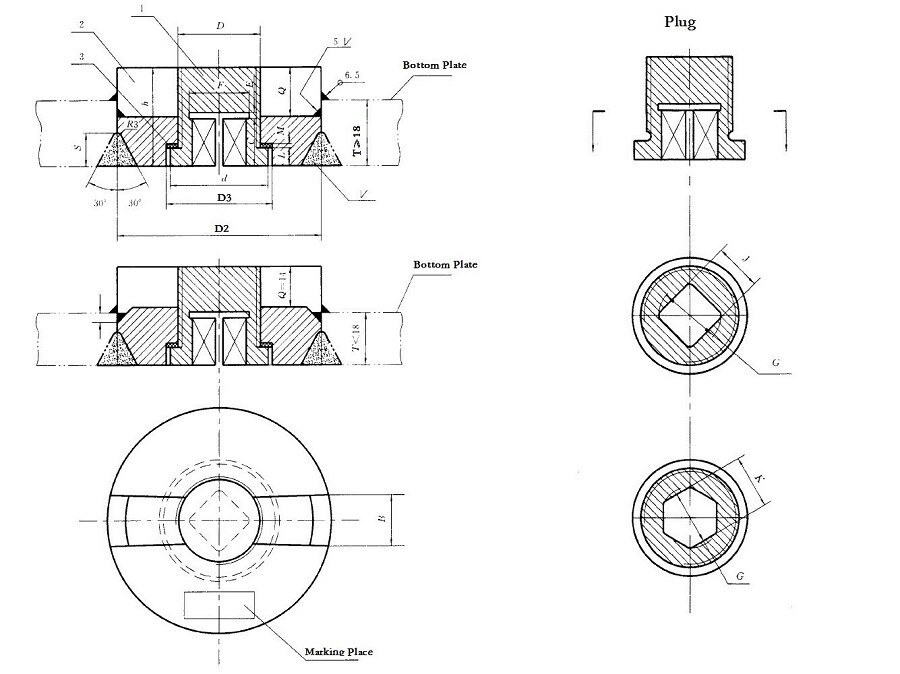

Main Size(mm):

Nominal Size Plug Dia Plug & Packing Seat Plate
D d C E F G J K L M D1 D2 D3 B Q Suitable Bottom Plate Thickness h S
Type A Type B Type A Type B
30 M30X2 40 14 5 22 20 15 18 6 2 _ 75 60 42 10 14 14 >6~10 30 6
>10~18 30 8
42 M42X2 52 15 27 26 21 23 8 2 _ 115 100 54 16 17 h-T 18~22 35 8
20 23 h-T >22~23 45 13
>32~42 55 18
52 M52X2 62 15 _ 125 110 64 20 17 h-T 18~22 35 8
20 23 h-T >22~23 45 13
>32~42 55 18
62 M62X2 72 15 _ 135 120 74 24 17 h-T >18~22 35 8
20 23 h-T >22~23 45 13
>32~42 55 18
72 M72X2 90 25 38 35 26 31 10 2.5 _ 155 140 92 28 23 h-T >22~23 45 13
>32~42 55 18
