Spring Balancer
- Category:Marine Hoist
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Spring Balancer:

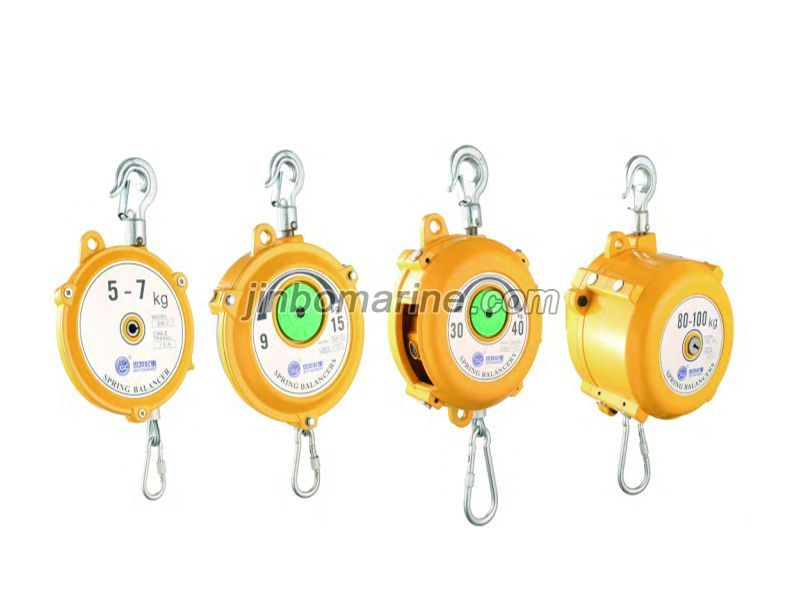

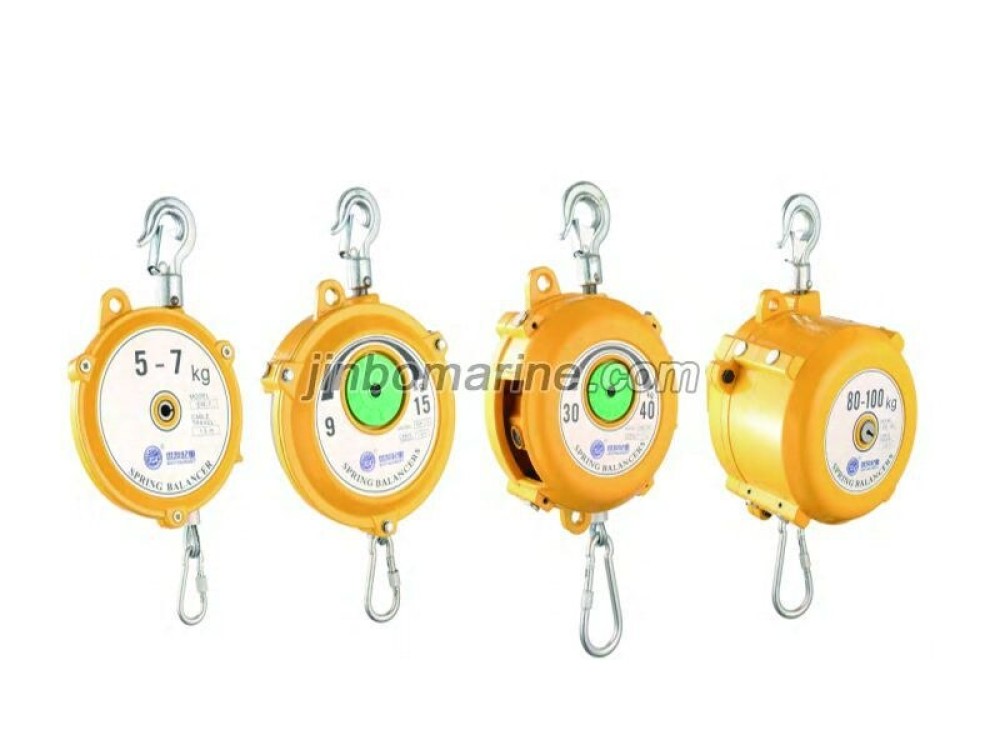

Spring Balancer
Spring balancers are suitable for assembly lines and various fixed positions where the workload is relatively concentrated.lt is widely used for steam when operating tools are heavy and the duration of using tools is long. Cars, tractors, household appliances and machinery manufacturing and other fields,whether in the assembly line Or working at a fixed station,where manual tools and lifting equipment are used. Can be used, can also be used as an auxiliary tool for lifting tools. The tools are heavy and need to be When working frequently up and down, the lifting force of the balancer can be used to reduce labor.The purpose of strength.
| Model | Balance the load (kg) | The steel rope elongation(m) | Weight (kg) |
| EW-3 | 1-3 | 1.5/2.8 | 1.43 |
| EW-5 | 3-5 | 1.5/2.8 | 1.52 |
| EW-9 | 5-6 | 1.5/2.8 | 3.74 |
| EW-15 | 9-15 | 1.5/2.8 | 3.9 |
| EW-22 | 15-22 | 1.5/2.8 | 7.13 |
| EW-30 | 22-30 | 1.5/2.8 | 7.6 |
| EW-40 | 30-40 | 1.5/2.8 | 10 |
| EW-50 | 40-50 | 1.5/2.8 | 10.2 |
| EW-60 | 50-60 | 1.5/2.8 | 10.8 |
| EW-70 | 60-70 | 1.5/2.8 | 11.2 |
| EW-80 | 70-80 | 1.5/2.8 | 12 |
| EWF-100 | 80-100 | 1.5/2.8 | 22 |
| EWF-120 | 100-120 | 1.5/2.8 | 23 |
| EWF-140 | 120-140 | 1.5/2.8 | 24 |
| EWF-160 | 140-160 | 1.5/2.8 | 24.5 |
| EWF-180 | 160-180 | 1.5/2.8 | 25 |
| EWF-200 | 180-200 | 1.5/2.8 | 25.5 |
