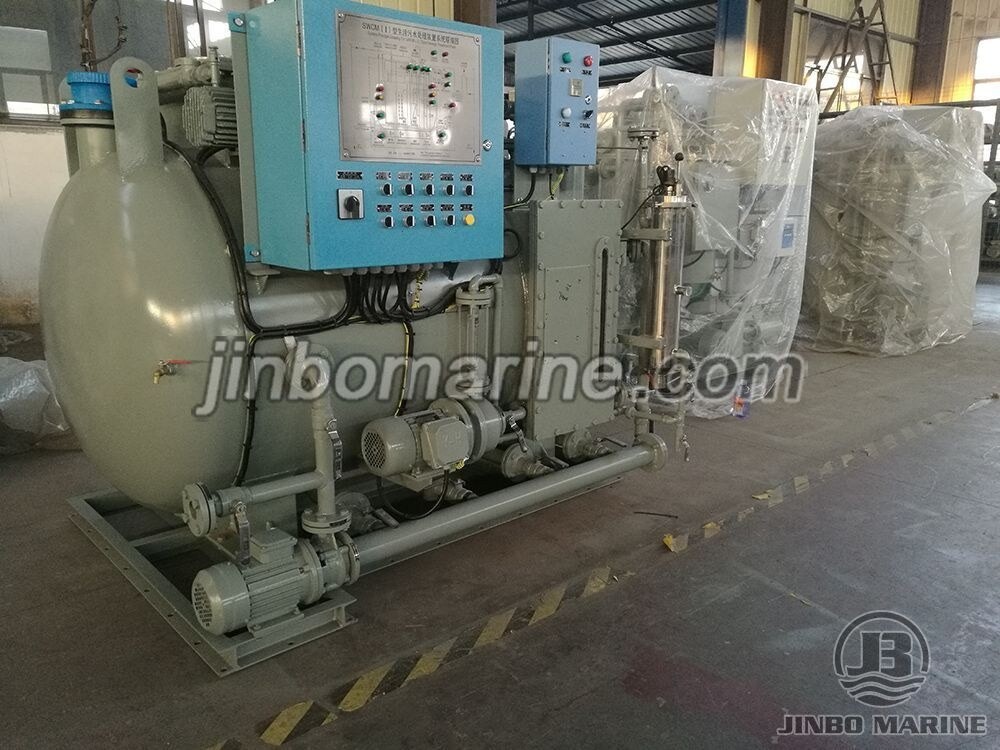

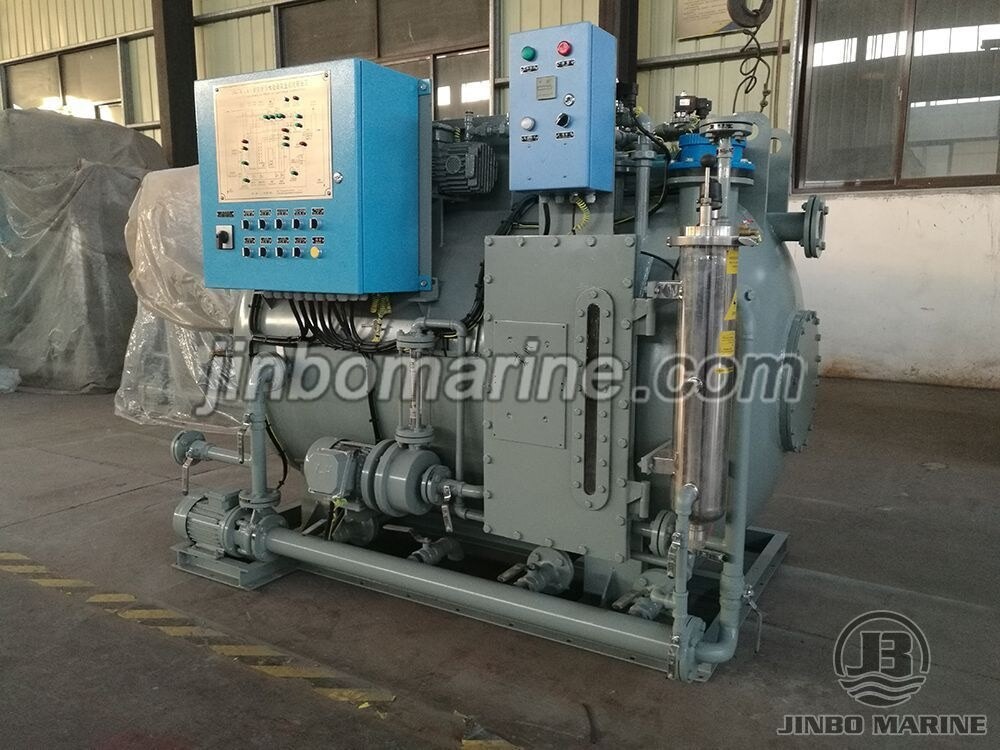

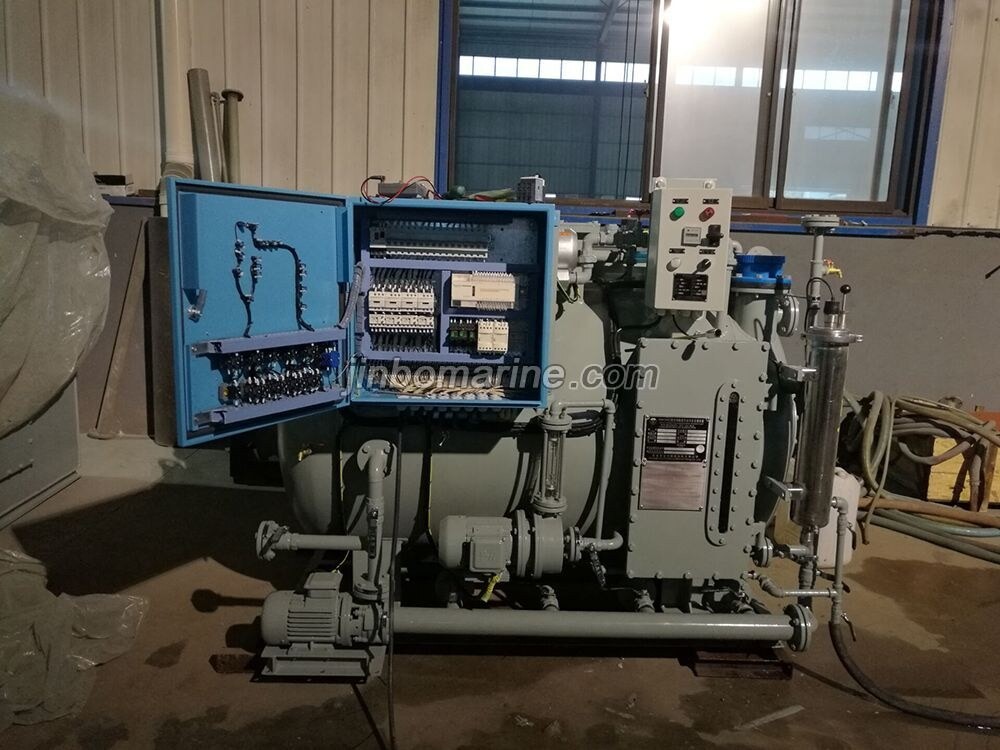

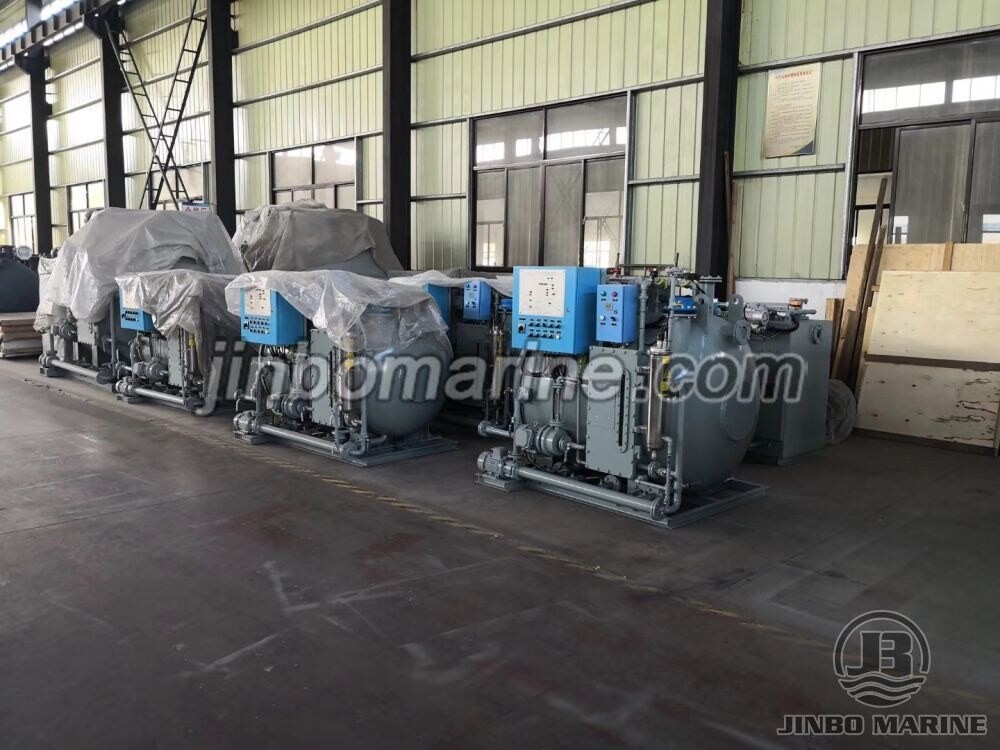

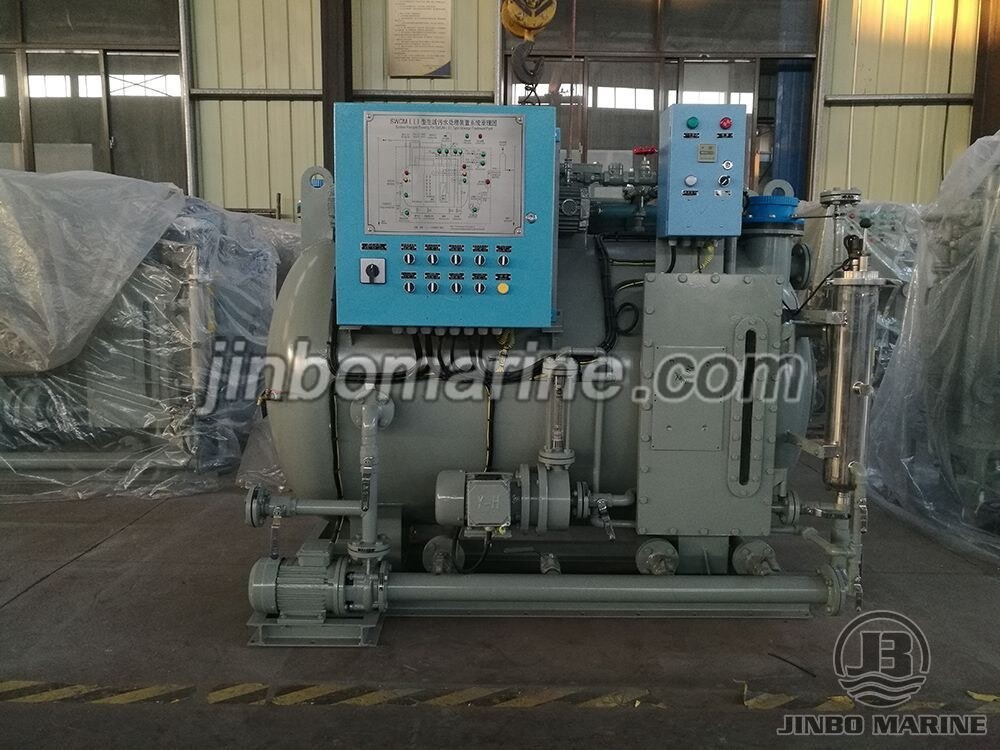

SWCM-15 Sewage Treatment Plant

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

The SWCM type marine sewage treatment plant uses activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which can treat sewage effectively and reach at the IMO new effluent standard or other stricter requirements.

Working Principle:

The device adopts activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which can treat sewage effectively andmeetthe IMO new effluent standard or other stricter requirements.

Technical Feature:

1.Adopting horizontal circular design, ellipse closures on both ends, pressure resistance and compact structure.

2.The device is adopted auto-control, and compliance with the requirement of 24-hours unattended cabin.

3.Adopting the "MBR" technology, devices allow to the narrow size, and solve the conflict of small space of cabin, but

big volume of device.

4.The intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of "aerobic -

anoxic", and resolve the problem of "nitrogen and phosphorus removal".

5.The device is adopting the principle of“air-lifting”to transfer the sludge from sediment tank and membrane tank

to aeration tank, meantimes the“pump stops and air never stopped”, so as the scale on the membrane surface comes

down. Due to back flushing and clean the membrane“online”usd technology patent.

6."On-line" cleaning technology, making the dirt on membrane off automatically, recover membrane flux. It can be

solved the problem of opening the cleaning or replacement of membrane difficultly caused by the small space in cabin.

7.The effluent after further treatment can be reached at the requirement of“water recovery”.

model SWCM
10 15 20 25 30 40 50 60 80 100 120 150 200 250 300 400
Treated
Load
Average
load
(L/d)
840 1190 1540 1890 2310 3080 3780 4480 6020 7700 9100 11200 14700 18200 23100 30800
Peak
load
(L/h)
105 149 193 237 289 385 473 560 753 963 1138 1400 1838 2275 2888 3850
Organic
load
(kgBOD5/d)
0.42 0.60 0.77 0.95 1.16 1..54 1.89 2.24 3.01 3.85 4.55 5.60 7.35 9.10 11.55 15.40
Rate capacity(P) 10 15 20 25 30 40 50 60 80 100 120 150 200 250 300 400
Max capacity(P) 12 17 22 27 33 44 54 64 86 100 130 160 210 260 330 440
Electricity AC380V.50Hz.3Φ/AC440V.60Hz.3Φ
Power(KW) 2.25 2.25 2.50 2.50 2.50 3.00 3.00 3.50 4.00 4.00 4.00 6.00 6.00 7.00 9.00 11.00
External dimennsions
Length*width*height
(mm)
1350
*
1200
*
1370
1850
*
1200
*
1400
1660
*
1400
*
1550
1890
*
1400
*
1560
1980
*
1500
*
1650
2270
*
1600
*
1700
2300
*
1700
*
1820
2650
*
1700
*
1830
2790
*
1900
*
2050
2706
*
2000
*
2200
3000
*
2000
*
2200
3080
*
2200
*
2300
3630
*
2200
*
2350
3880
*
2400
*
2570
4780
*
2400
*
2600
5980
*
2400
*
2600
Weight Dry weight
(kg)
900 1000 1000 1100 1200 1300 1450 1600 1850 2200 2300 2800 3000 3300 3700 4200
Wet weight
(kg)
1775 2283 2640 2740 3500 4400 5073 5270 6517 8268 9166 11340 13267 16538 20357 25417
Discharge standard TSS≯35mg/L . BOD≯25mg/L . COD≯125mg/L . Colichin≯100/100ml . PH:6~8.5
