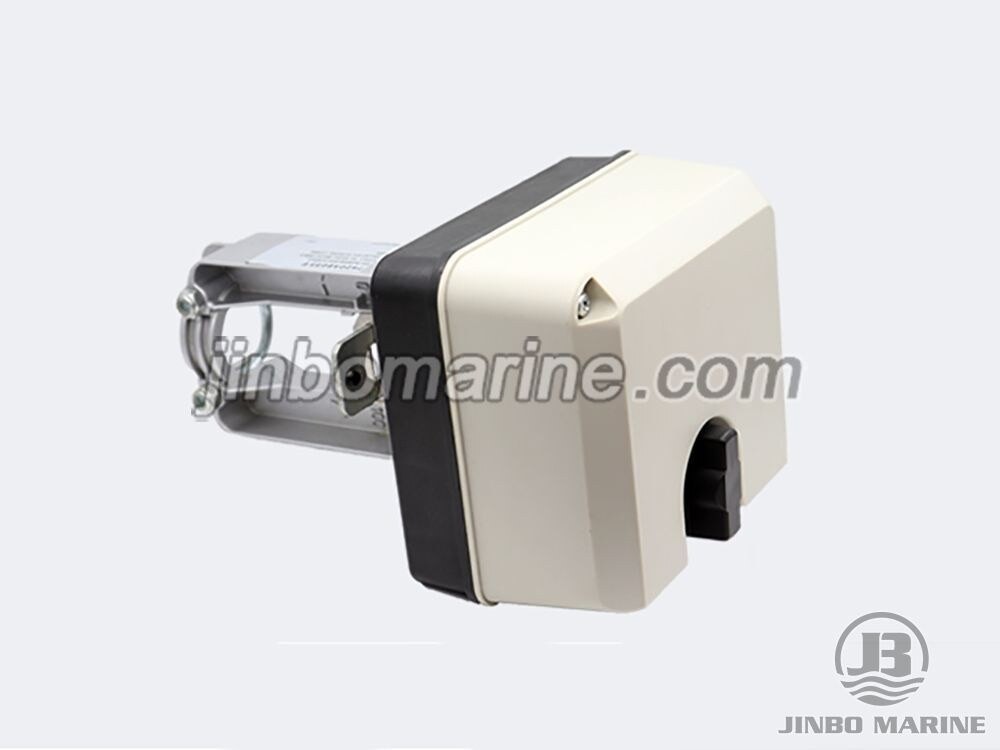

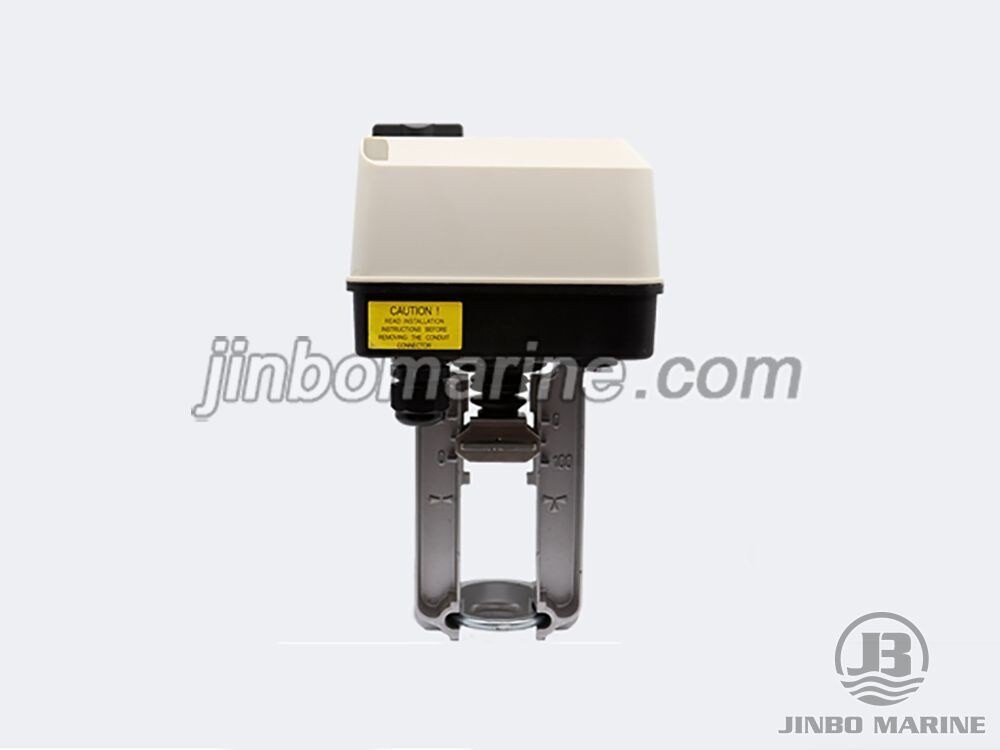

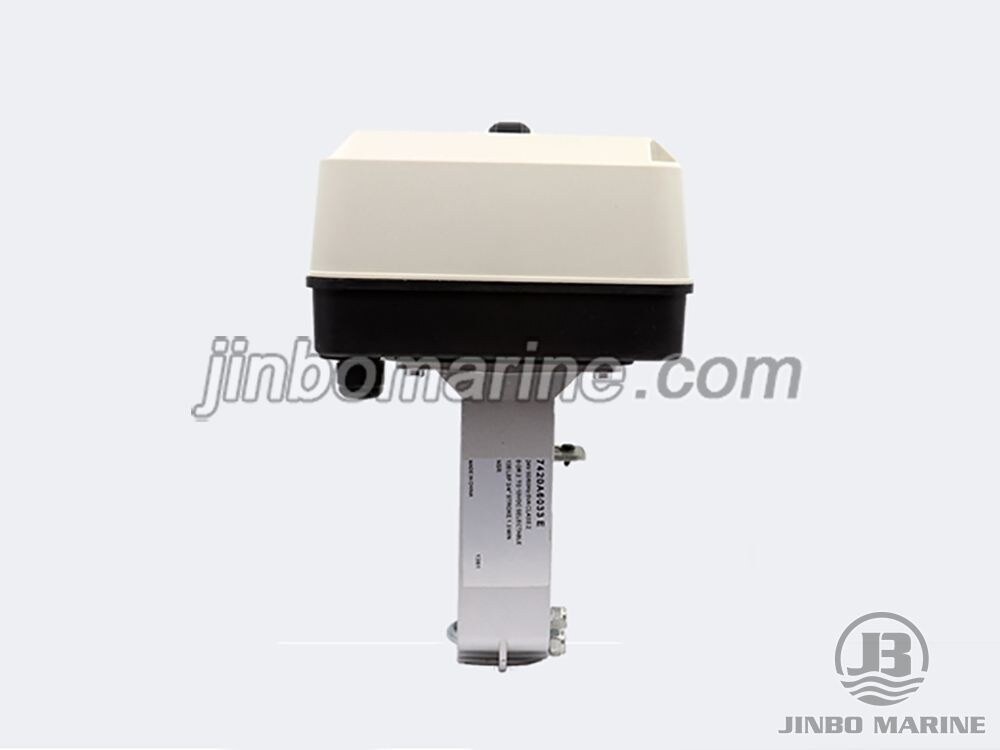

TE7420A Valves Electric Actuator
- Category:Marine Flow Meter
- Delivery Time:5 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China TE7420A Valves Electric Actuator:
TE7420A valves electric actuator is applies to SPDT. This valves electric actuator is compatible with valves of all heating ventilation air conditioning.
Specification:
| Model | Inch（mm） | 60Hz Run time（s） | Description |
| TE6421A | 3/4（20） | 95 | linear electric valve actuators |
| TE7421A | |||
| TE6421B | 1-1/2（38） | 175 | |
| TE7421B |
Weight: 5.1 pound (2.3 kg)
Input power: 24V AC (+10%, -15%), 60Hz
Power supply: Max 24V AC
TE7421：0~10Vdc or 2~10Vdc
Product shell: ABS plastic
Bases and Holders: Aluminium Die Casting
Thrust: 405lbf (1800N)
Cable interface: 2 pcs 1/2
Ambient temperature range：14~122 ℉（-10~50 ℃）
Storage Temperature Range：-40~158 ℉（-40~70 ℃）
Humidity range：relative humidity 5~95% no condensation
Installation is simple and quick
Free from adjustment
Type TE7421 with position feed back signal
limit switch of terminal power
With manual station
Synchronous motor
Corrosion-proof design
