TEB930 Differential Pressure Switch
- Category:Marine Pressure Instrument
- Delivery Time:5 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

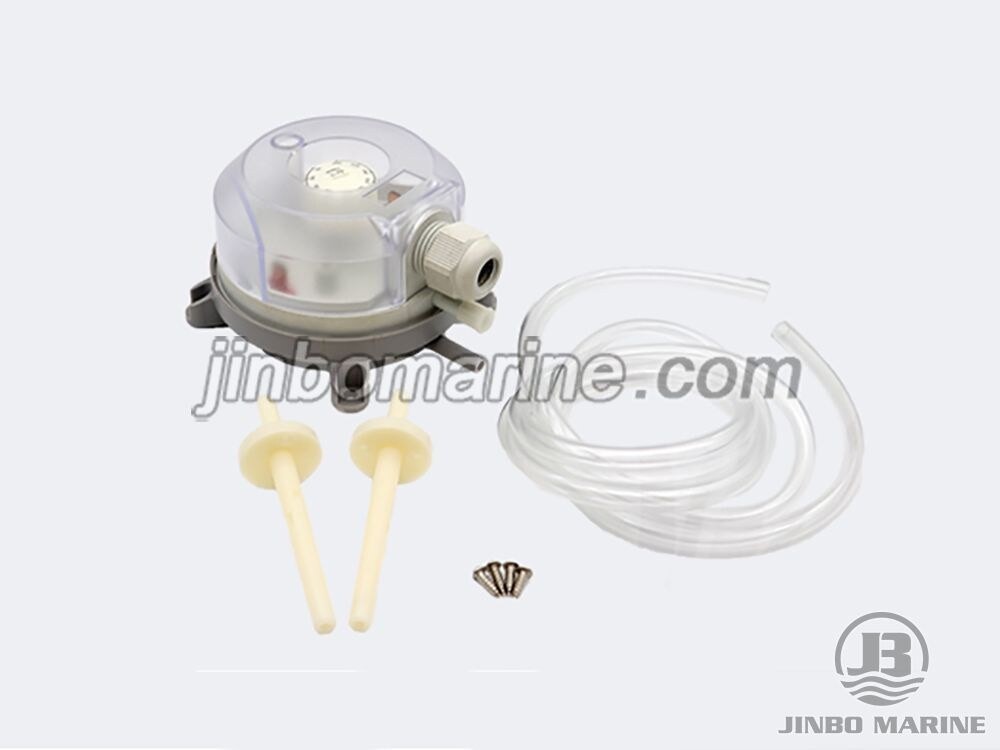

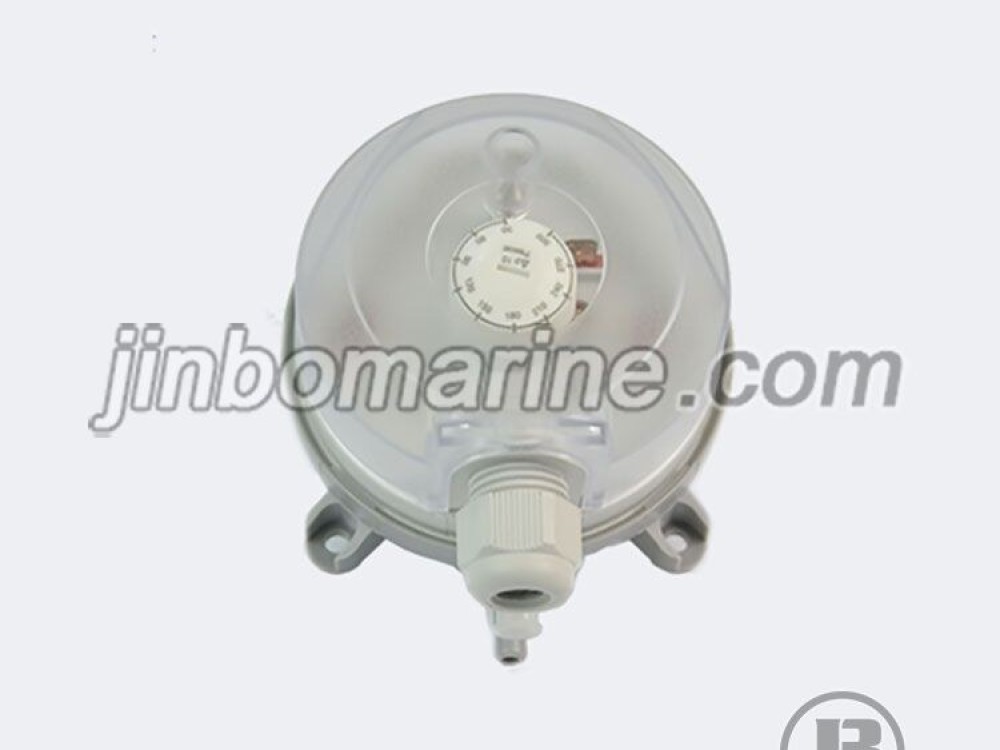

China TEB930 Differential Pressure Switch:
TEB930 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.
Specification:
| Model | TEB930 |
| Media | Air, non-combustible and non-aggressive gases. |
| Max Operating | 10kPa |
| Mounting | Diaphragm in any vertical plane |
| Degree of Protection | IP54(With Cover), IP00(without Cover) |
| Operating Temperature | -40℃ to + 85℃ |
| Range | 930.80 20-200Pa |
| 930.81 30-300Pa | |
| 930.82 50-500Pa | |
| 930.83 200-1000Pa | |
| 930.85 500-2500Pa | |
| 930.86 1000-4000Pa | |
| Contact Arrangement | SPDT |
| Electrical Rating | Resistance: initaial:＜50 milliohms |
| Current: 1.5A(0.4A)/250V | |
| Terminal | 6.3mm×0.8blade or screw terminal |
| Connection | Φ6.0 mm for tube connection |
Conversion: 1in/ H₂O=249Pa 1mbar=100Pa

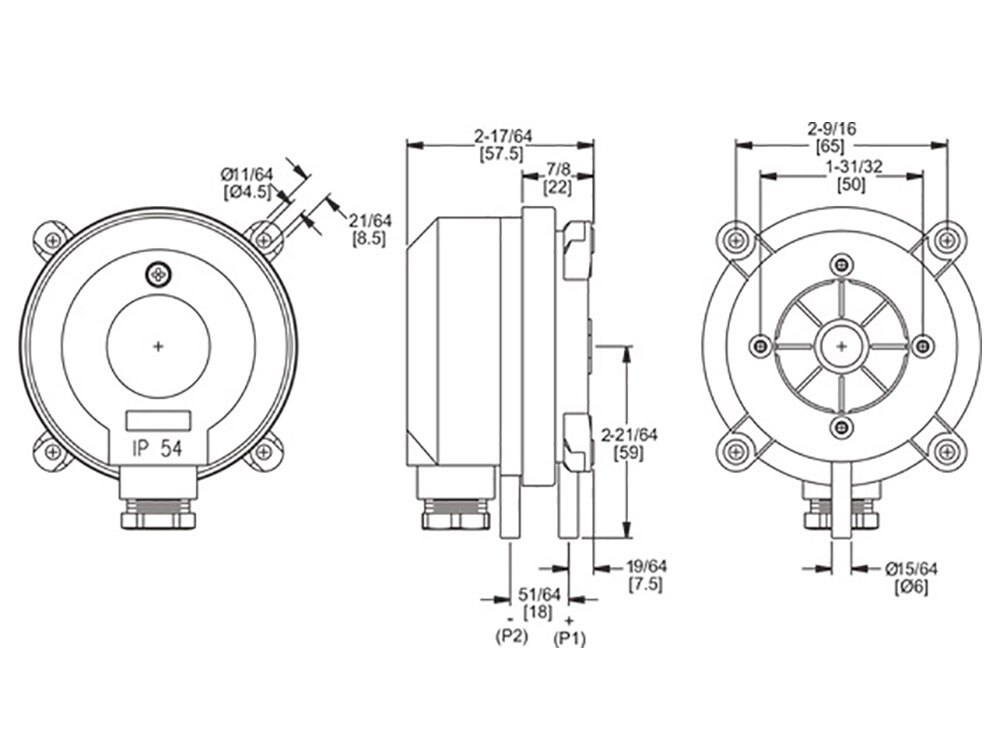

DIMENSIONAL DRAWING:
