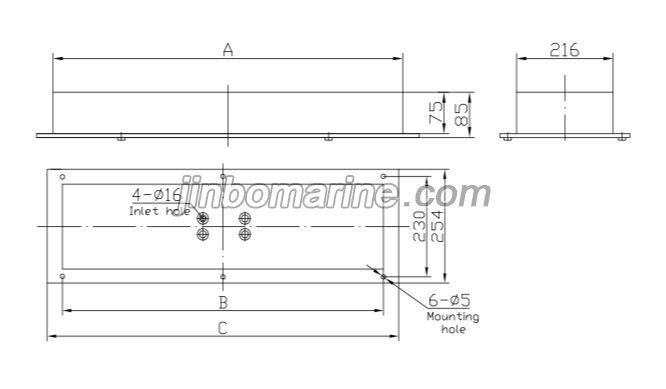

TPYA10-2GL LED Ceiling Light

Request a Quote Not what you need, please send your RFQs via Email.

Details

Application

Applied to military ship and ship illumination of dry cabin, such as the accommodation, passage way,retiring room and so on.

Product Feature

1. Shell adopts good quality steel plate.

2. Lampshade is made of milky white organic glass.

3. LED Light Source, light soft, no glare, supper high uniformity and visual comfort, color>=80%, light rate>70%, life time 30000h,energy saving 50%, new green environmental product, easy installation, general G12 lamp holder.

4. Environment temperature I s -20-45degree within the scope of work.

5. Protection class is IP22.

Standard

1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;

2. GB7000.1-2015,Luminaires –Part1:General requirements and tests.

Specification


Type Voltage Power Replacement Liminous Flux CT Material Size Weight
TPYA10-2GL 110/220V
50/60Hz
<=2x10W 2x18W Fluorescent Lamp 1400lm 3000-6500K Steel/SS 636x600x674 4.0kg
TPYA20-2GL <=2x20W 2x36W Fluorescent Lamp 2600lm 3000-6500K steel 1245x1200x1280 5.8kg
