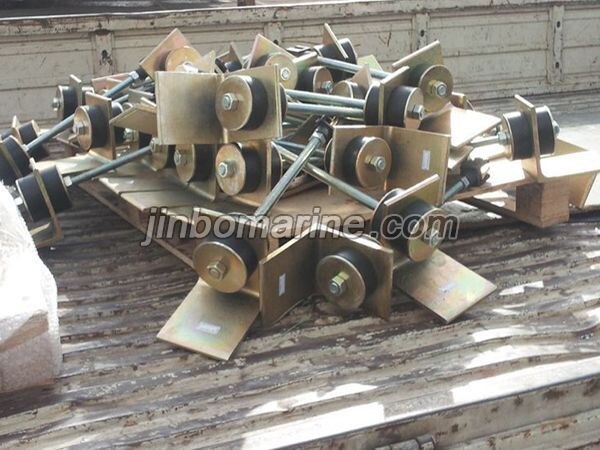

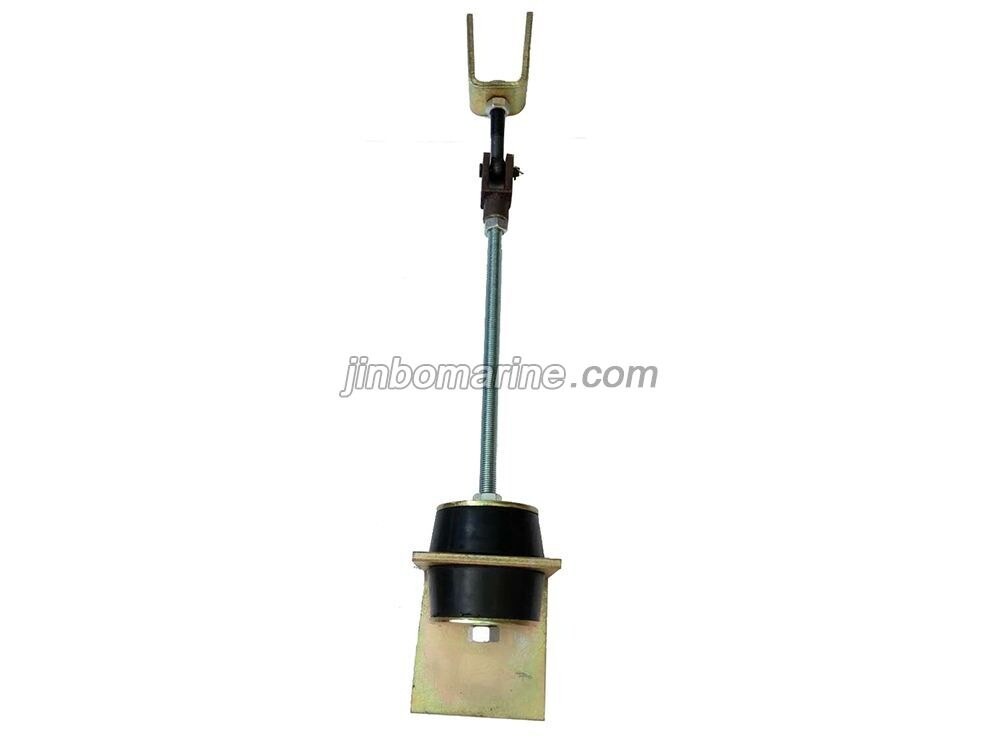

Type P1 Movable Elastic Hanger

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Type P1 Movable Elastic Hanger:

The elastic elements are made by special type rubber, it has fine vibration resistance and impact resistance.
Advantage: High temperature, low temperature resistance, oil resistance and aging resistance.
The hanger adopts active joint, the length can be adjusted, and it can be move freely within the range of exhaust pipe thermal deformation.

Applicable range: suitable for horizontal or vertical exhaust pipe.

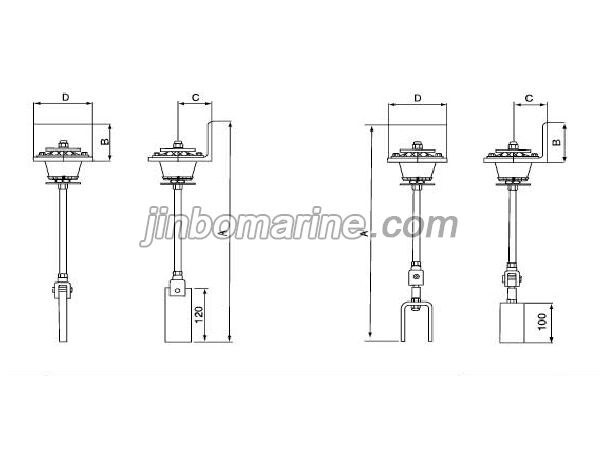

Dimension

Type P1 Movable Elastic Hanger Main Specifications

Model Size Static Load Workload
A(mm) B(mm) C(mm) D(mm) kgf kgf
P1-021 450-550 80 45 110 100 35
P1-025 450-551 100 60 120 200 70
P1-026 530-680 100 55 130 400 130
P1-027 530-680 125 75 130 600 200
