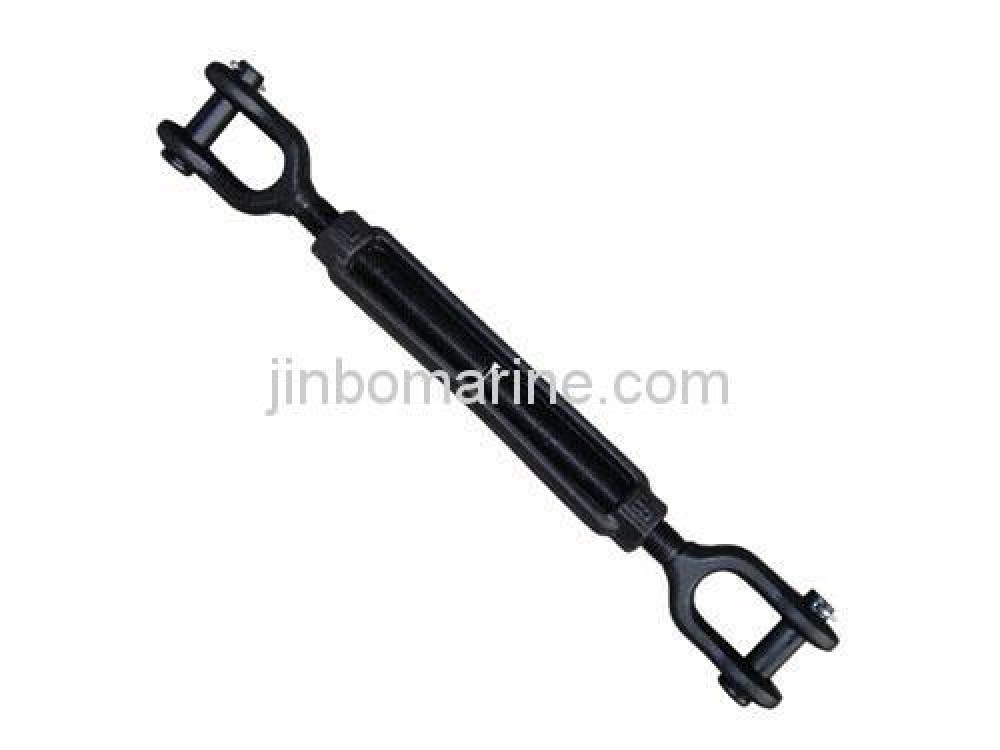

U.S. Type Turnbuckles With Jaw And Jaw

  • Category:Turnbuckle
  • Material:45# Steel and 40Cr Steel
  • Packing Details:Wooden Box
  • Delivery Time:20 Days
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Main Specification

Turnbuckle usually Forged, Free forged and Casting.

The surface of turnbuckle original color, galvanised,hot galvanized

Material is 45# Steel, Q235

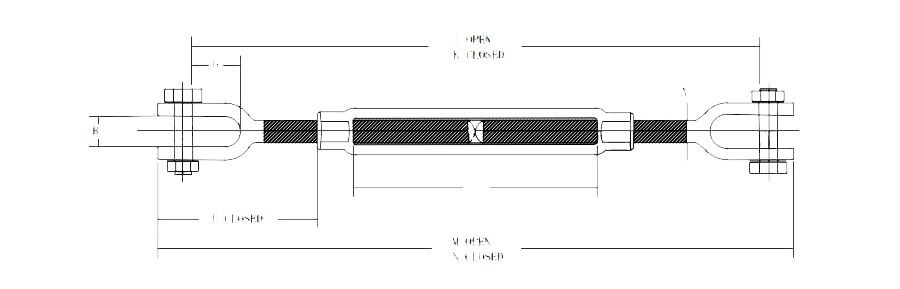

Size Table

Thread Dia & Take Up WLL(lbs) Weight(lbs) Dimensions(in)
A B E G J K M N BB
1/4x4 500 0.37 0.25 0.45 1.66 0.64 11.19 7.19 12.18 8.18 4.07
5/16x41/2 800 0.56 0.31 0.5 2.02 0.87 13.07 8.57 14.12 9.62 4.58
3/8x6 1200 0.85 0.38 0.53 2.11 0.85 16.25 10.25 17.5 11.5 6.1
1/2x6 2200 1.82 0.5 0.64 3.22 1.07 18.65 12.65 20.14 14.14 6.03
1/2x9 2200 2.29 0.5 0.64 3.2 1.07 24.94 15.94 26.43 17.43 9.36
1/2x12 2200 2.71 0.5 0.64 3.2 1.07 30.94 18.94 32.43 20.43 12.36
5/8x6 3500 3.21 0.63 0.79 3.9 1.32 19.74 13.74 21.82 15.82 6.03
5/8x9 3500 3.95 0.63 0.79 3.89 1.32 26.08 17.08 28.16 19.16 9.39
5/8x12 3500 4.58 0.63 0.79 3.89 1.32 32.08 20.08 34.16 22.16 12.39
3/4x6 5200 4.8 0.75 0.97 4.71 1.52 21.09 15.09 23.68 17.68 6.13
3/4x9 5200 5.85 0.75 0.97 4.68 1.52 27.49 18.49 30.08 21.08 9.59
3/4x12 5200 6.72 0.75 0.97 4.68 1.52 33.49 21.49 36.08 24.08 12.59
3/4x18 5200 8.45 0.75 0.97 4.71 1.52 45.49 27.49 48.08 30.08 18.53
7/8x12 7200 9.37 0.88 1.16 5.5 1.77 34.65 22.65 37.62 25.62 12.16
7/8x18 7200 11.8 0.88 1.16 5.5 1.77 47.12 29.12 50.09 32.09 18.63
1x6 10000 10.4 1 1.34 6.09 2.05 23.82 17.82 27.18 21.18 6.18
1x12 10000 13.8 1 1.34 6.09 2.05 35.82 23.82 39.18 27.18 12.18
1x18 10000 17.1 1 1.34 6.09 2.05 47.82 29.82 51.18 33.18 18.18
1x24 10000 21 1 1.34 6.06 2.05 60.42 36.42 63.78 39.78 24.84
11/4x12 15200 21.9 1.25 1.84 8.09 2.82 39.37 27.37 43.58 31.58 12.06
11/4x18 15200 25.9 1.25 1.84 8.09 2.82 51.37 33.37 55.58 37.58 18.06
11/4x24 15200 29.8 1.25 1.84 8.09 2.82 63.93 39.93 68.14 44.14 24.62
11/2x12 21400 32.6 1.5 2.06 8.93 2.81 40.76 28.76 45.68 33.68 12.32
11/2x18 21400 38 1.5 2.06 8.93 2.81 52.76 34.76 57.68 39.68 18.32
11/2x24 21400 43.5 1.5 2.06 8.93 2.81 65.38 41.38 70.3 46.3 24.94
13/4x18 28000 53.5 1.75 2.6 9.36 3.35 53.35 35.35 59.16 41.16 18.37
13/4x24 28000 61.1 1.75 2.6 9.36 3.35 65.35 41.35 71.16 47.16 24.37
2x24 37000 96.3 2 2.62 11.8 3.74 69.64 45.64 76.72 52.72 24.48
2 1/2x24 60000 167 2.5 3.06 13.26 4.44 72.97 48.97 82.18 58.18 24.6
2 3/4x24 75000 199 2.75 3.69 14.92 4.19 74.75 50.75 85.5 61.5 24.65
