Upgrading And Landing Airbag
- Category:Marine Fender
- Material:Rubber
- Standards:ISO17357-2002
- Certificate:BV,ABS,LR,DNV,CCS ETC
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description

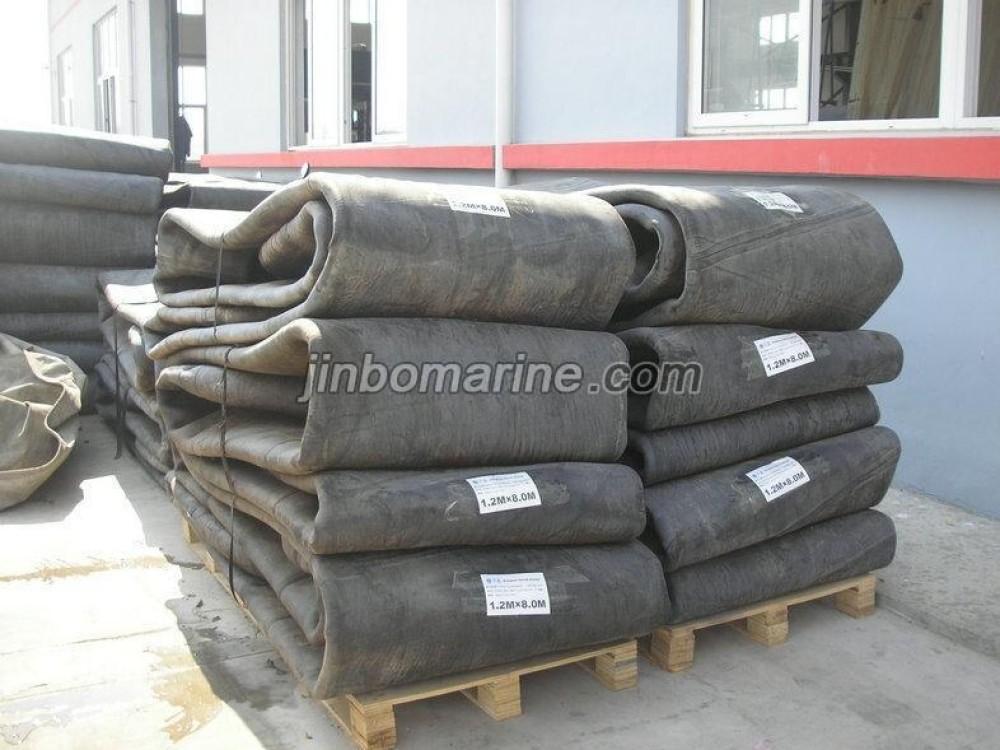

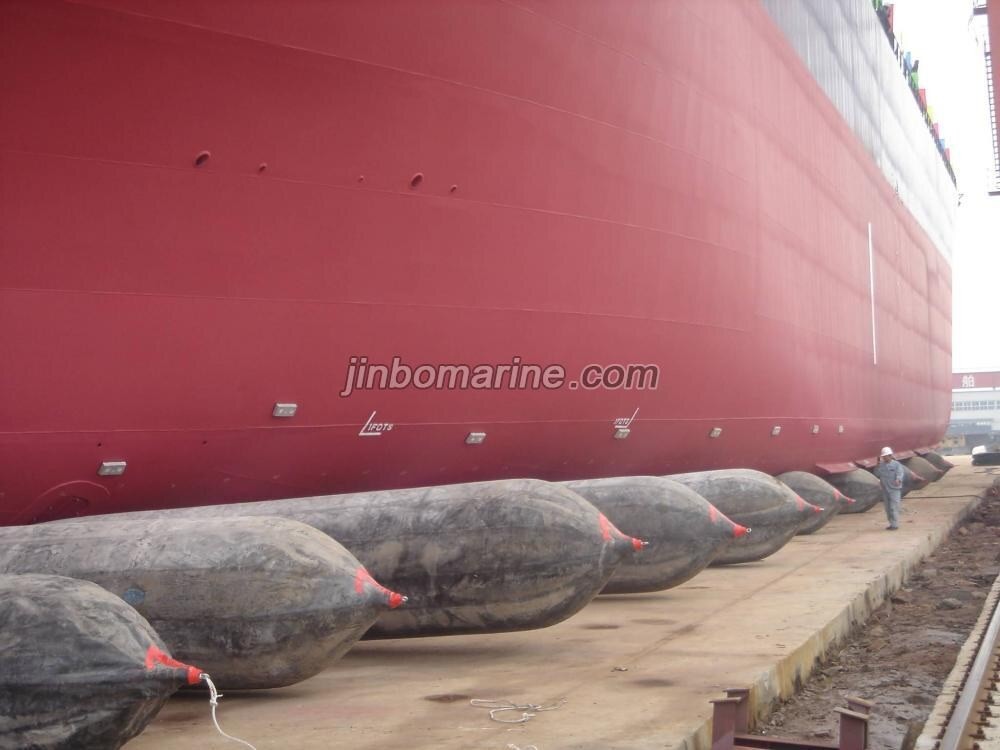

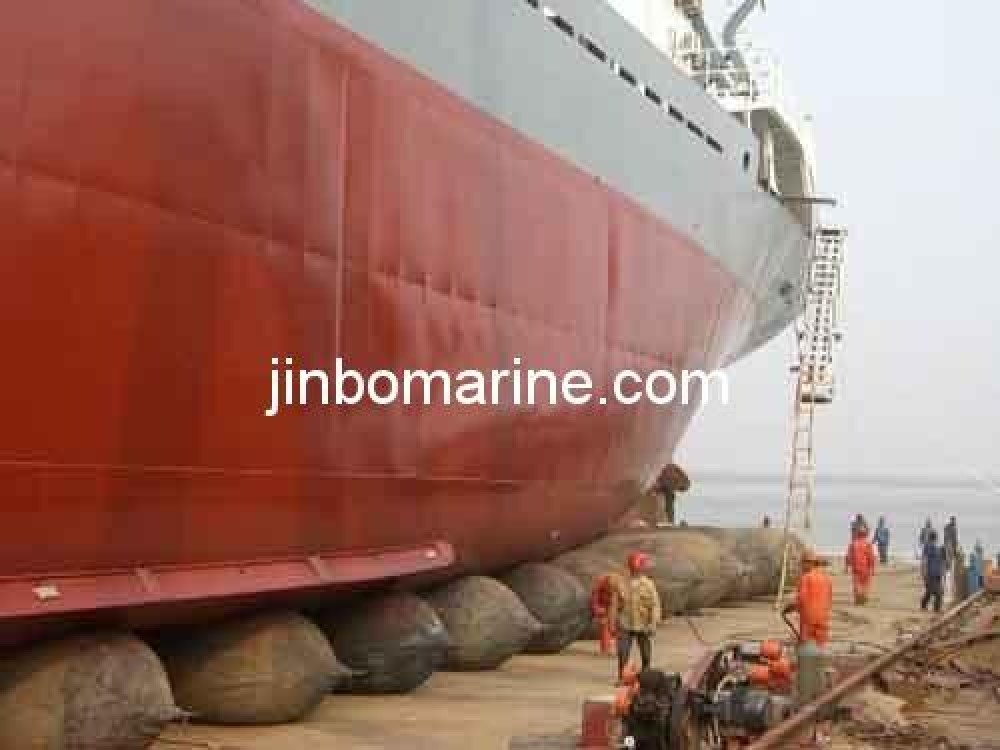

Rubber airbag are used for ship launching now, loading and floating. They are widely used in cargo boat/ship/vessel launching and landing, lifting and moving sunken ships and salvaging strength boats.
Rubber airbag have the benefit of not only saving labor and time, but investment costs. Additionally they are flexible, portable and dependable.
1. The Standard Specification Of Rubber Airbag.
You can choose the required diameter and effective length to meet your projects
Diameter: from 0.8mto2.0m.
Effective length: from5mto21m.
The above specifications only are our standard specifications arrange. Can be supplied customized size upon customers' request.
2. The Standard Number Of Layers
The numbers of layers, which mean the number of natural -tire-cord layer, usually, our airbags contain from 3 to 9 layers types. Other type is still available upon your request to confirm the safety working pressure.
Rubber Airbags' Function
High gas tightness, wear resistance, ageing resistance, the water has air time, manpower and flexible, safe and reliable, Have a good anti-wrinkle strength, and elastic, flexibility, the operation is simple, with both good anti-aging properties and the application performance long,
Balloon launching more can reduce environment pollution, adapt to the national environmental policy, has been widely used in ship fluctuation, caisson hoisting removed and other heavy objects handling, underwater installation to help float, etc. Long service life.
Size Chart
|
D |
P |
H |
W |
P |
H |
W |
Main Use |
|
|
(m) |
(Mpa) |
(m) |
(t/m) |
(Mpa) |
(m) |
(t/m) |
||
|
Medium Pressure Air-bag |
0.8 |
0.13 |
0.2 |
12 |
0.11 |
0.4 |
7 |
Suit small and mediumsized ships launching and shifting |
|
1 |
0.1 |
0.2 |
12.5 |
0.09 |
0.5 |
7 |
||
|
1.2 |
0.09 |
0.2 |
14 |
0.08 |
0.6 |
7.5 |
||
|
1.5 |
0.08 |
0.2 |
16.5 |
0.06 |
0.7 |
7.5 |
||
|
1.8 |
0.07 |
0.2 |
18 |
0.05 |
0.8 |
8 |
||
|
2 |
0.07 |
0.2 |
20 |
0.05 |
0.9 |
8.5 |
||
|
High Pressure Air-bag |
0.8 |
0.26 |
0.2 |
24 |
0.22 |
0.4 |
14 |
Suit large-scsle ship launching and heavy goods shifting |
|
1 |
0.2 |
0.2 |
25 |
0.18 |
0.5 |
14 |
||
|
1.2 |
0.18 |
0.2 |
28 |
0.16 |
0.6 |
15 |
||
|
1.5 |
0.16 |
0.2 |
33 |
0.12 |
0.7 |
15 |
||
|
1.8 |
0.14 |
0.2 |
36 |
0.1 |
0.8 |
16 |
||
|
2 |
0.14 |
0.2 |
40 |
0.1 |
0.9 |
17 |

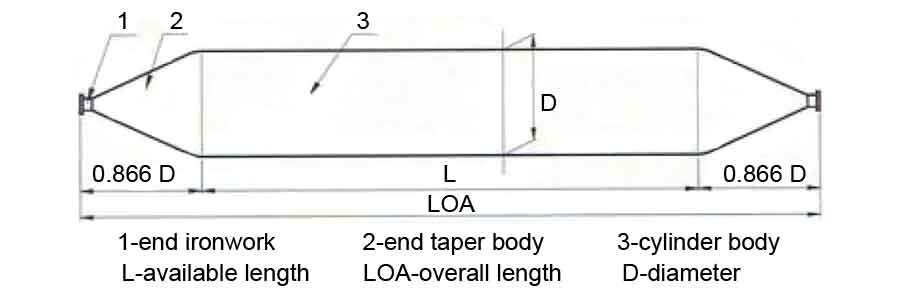

Airbag configuration
