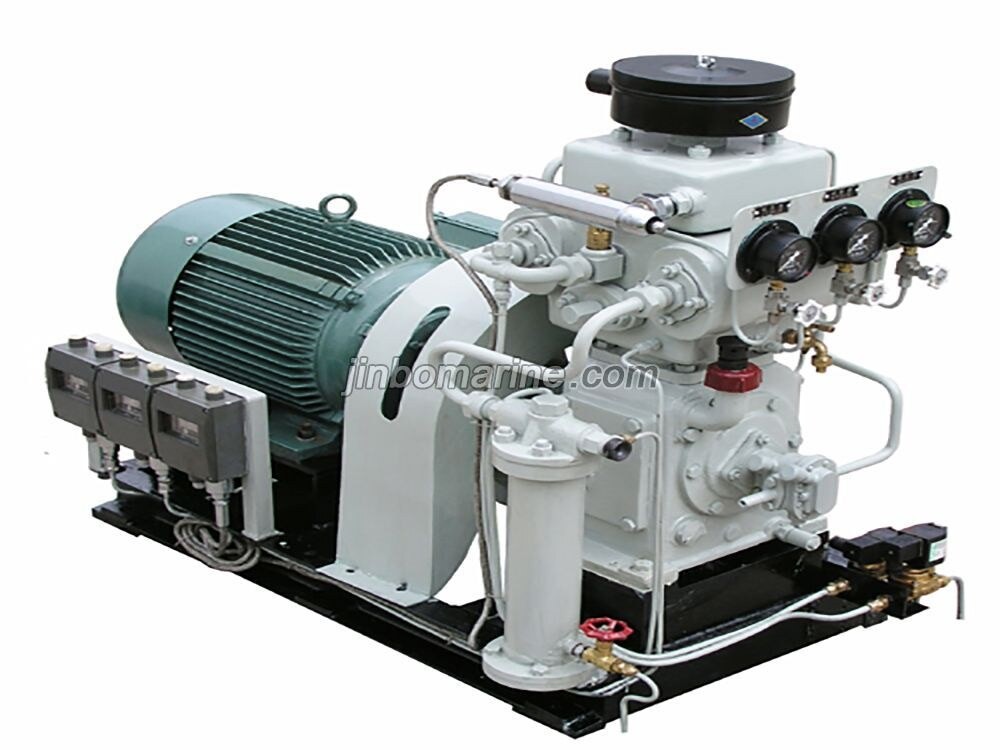

Vertical Water-cooling Two Stage Compressed Tanabe Air Compressor CZS Series
- Category:Medium Pressure Water Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Vertical Water-cooling Two Stage Compressed Tanabe Air Compressor CZS Series:
CZS series air compressors are mainly used for vessels and stationary diesel engine pneumatic, origin and industrial pressure test, wharf, airport, exploration, origin, such as health care, the required air compressor.
Institutional characteristics
CZS series air compressor is vertical, water cooled, two stage compression, compact structure, light weight, small size, suitable for Marine work normally under special conditions.

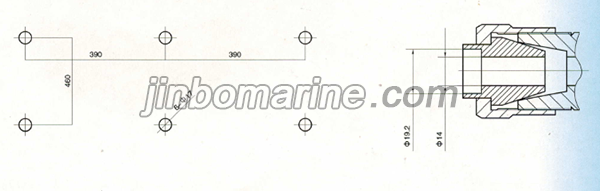

Installation
Specification
| Compressor Model | CZS | |||
| Type | Vertical Water-Cooled 2 stage Compression | |||
| Quantity of Air Supply (m3/h) | 25 | 29 | 36 | 45 |
| Pressure Rating (MPa) | 3 | |||
| Stalk Power (kw) | 6.4 | 7 | 9.8 | 10.4 |
| Rotation Rating (r/min) | 870 | 960 | 1170 | 1460 |
| Quantity of Cooling Water(m3/h) | 0.54 | 0.6 | 0.72 | 0.9 |
| Lubricating System | Splash Lubrication | |||
| Lubricate Trademark | L-DAB-100（GB12691) | |||
| Type of Unloader | Manual,Total closure suction type or Magnetic Unloader Valve | |||
| Method of Driving | Direct Coupling | |||
| Motor | ||||
| model | Y160L-8-H | Y160M-6-H | Y160L-6-H | Y160M-4-H |
| Power (kw) | 7.5 | 7.5 | 11 | 11 |
| Rotation (r/min) | 870 | 960 | 1170 | 1460 |
| Gradeprotection | IP44 | |||
| Ins Class | B | |||
| Voltage(V) | 440 | 380 | 440 | 380 |
| Frequency( HZ) | 60 | 50 | 60 | 50 |
| Shape size(mm) | 1120×556×900 | |||
| Weight(kg) | 320 | 340 | ||
