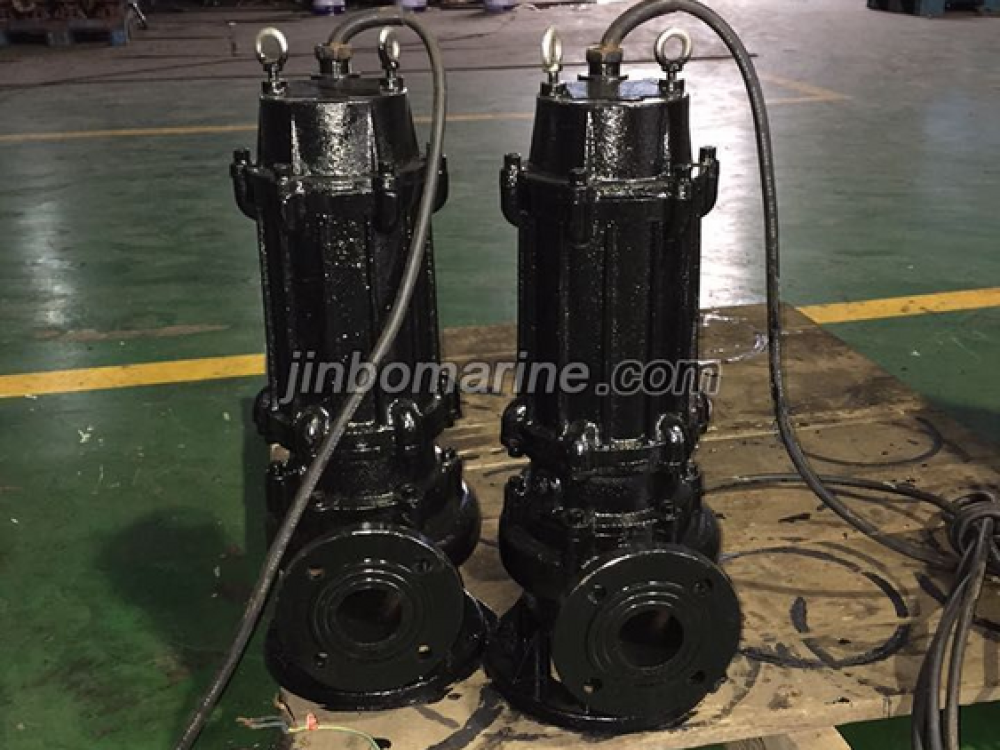

WQ (K) cutting submersible Sewage pump

  • Category:Sewage Pump
  • Material:Cast iron, stainless steel
  • Standards:standard
  • Packing Details:Standard Packing
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

WQ (K) cutting submersible pump

Application

Severely polluted waste water of factories, residence, hospitals, hotels, municipal works, marsh gas tanks in countryside, dredging of river and sea.

Features

With casing of stainless steel precision casting, it is corrosion-resistant, environment-friendly, durable, high in head and large in flow rate. It uses motor of F insulation grade. On the base of this style, the pump can be installed with automatic agitator device, which rotates with shaft of motor, produces very strong agitation force, inhale sediments in the sump after mixes blend to become session to the pump then eject it. Pump more than 11kw could be with double-protection function.

Model Implication

50(JY)WQ D10-10-0.75S

50: Outlet diameter 50mm

JY: Automatic agitator

WQ: Sewage Submersible pump

D: single phase submersible pump (three phase without ā€œDā€)

10: Rated capacity 10m3/h

10: Rated head 10m

0.75: Power 0.75kw

S: Stainless steel

Specification

Model

Capacity (m3/h)

Head (m)

Power (KW)

Voltage (V)

Outlet Diameter(mm)

100WQ80-15-7.5S

80

15

7.5

380

100

100WQ80-10-5.5S

80

10

5.5

380

100

100WQ50-7-2.2S

50

7

2.2

380

100

100WQ50-15-4S

50

15

4

380

100

100WQ50-10-3S

50

10

3

380

100

100WQ100-35-22S

100

35

22

380

100

100WQ100-30-18.5S

100

30

18.5

380

100

100WQ100-25-15S

100

25

15

380

100

100WQ100-20-11S

100

20

11

380

100
