WRY Marine Oil Fired Thermal Oil Bolier
- Category:Marine Boiler
- Certificate:CCS, GL, LR, BV, DNV, ABS, NK, KR, RMRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:

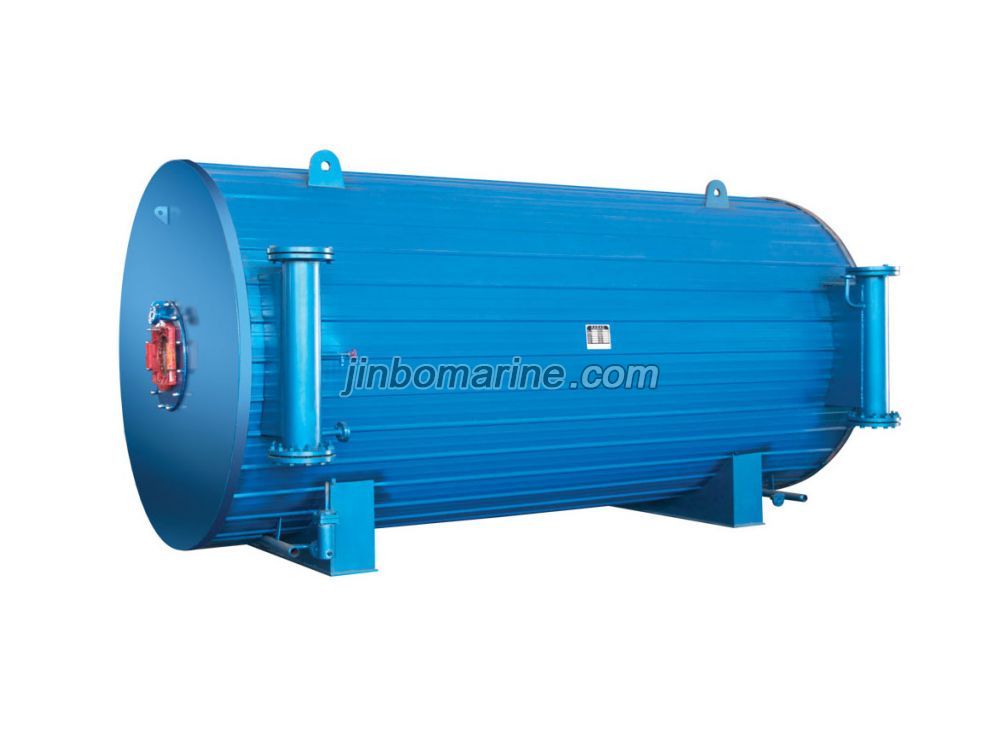

WRY Marine Oil-Fired Thermal Oil Bolier

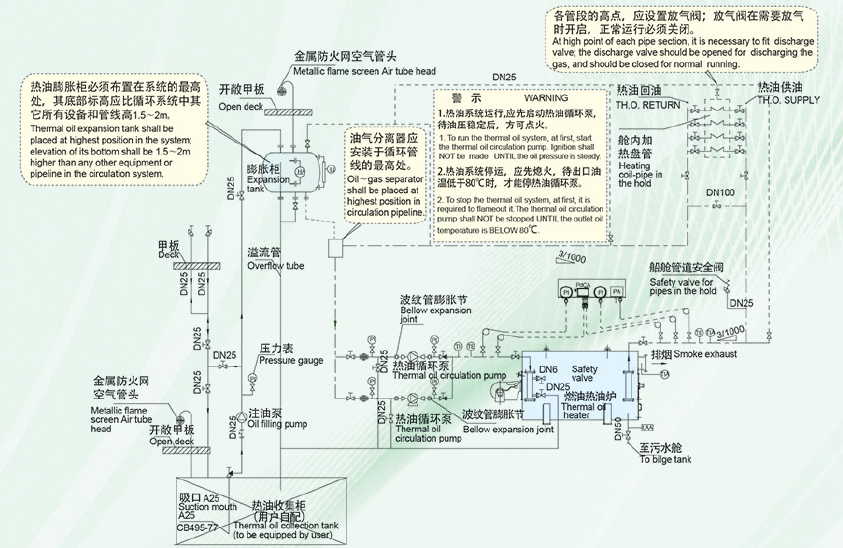

Working System:

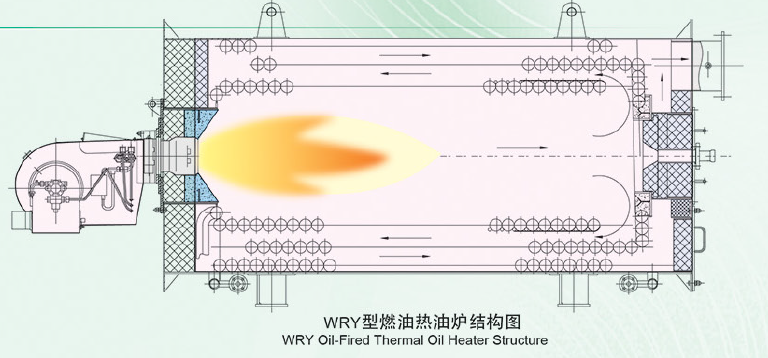

Characteristic:
Horizontal type
Compact structure and easy operation

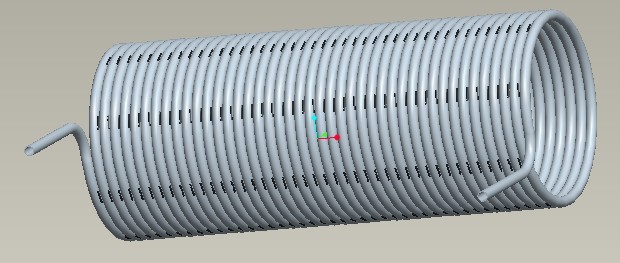

Convection heating surface is of pin tube structure
High temperature and low pressure. With higher system heat efficiency
Compact construction and higher heat exchange efficiency
Closed circulation heat supply, without emission and pollution
Safe and reliable running
Applicable for heating for marine fuel, chemicals and living

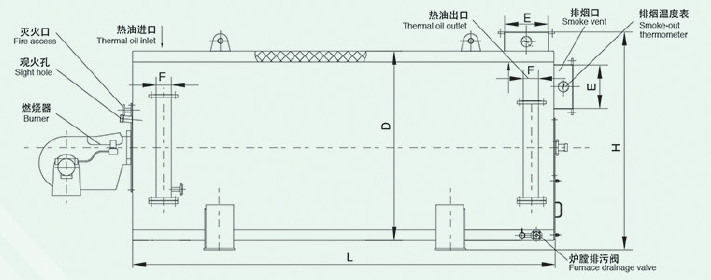

Technical data:
| Modle |
Thermal Power (kw) |
Design Pressure (Mpa) |
Design Thermal Oil Temperature(℃) | Medium Vloume Inside The Heater(m3) | Dimension(mm) | ||||
| L | D | E | F | H | |||||
| WRY120-0.8 | 120 | 0.8 | 300 | 0.11 | 1700 | Φ1100 | DN150 | DN65 | 1300 |
| WRY350-0.8 | 350 | 300 | 0.22 | 2200 | Φ1300 | DN200 | DN80 | 1500 | |
| WRY500-0.8 | 500 | 300 | 0.27 | 2300 | Φ1320 | DN250 | DN100 | 1550 | |
| WRY600-0.8 | 600 | 300 | 0.32 | 2300 | Φ1520 | DN300 | DN100 | 1750 | |
| WRY700-0.8 | 700 | 300 | 0.37 | 2500 | Φ1530 | DN300 | DN100 | 1750 | |
| WRY900-0.8 | 900 | 300 | 0.46 | 2900 | Φ1630 | DN300 | DN100 | 1750 | |
| WRY1000-0.8 | 1000 | 300 | 0.52 | 3030 | Φ1640 | DN300 | DN125 | 1850 | |
| WRY1200-0.8 | 1200 | 300 | 0.61 | 3260 | Φ1640 | DN350 | DN125 | 1850 | |
| WRY1500-0.8 | 1500 | 300 | 0.68 | 3680 | Φ1750 | DN350 | DN125 | 1980 | |
| WRY1800-0.8 | 1800 | 300 | 1.23 | 4240 | Φ1840 | DN400 | DN125 | 2080 | |
| WRY2000-0.8 | 2000 | 300 | 1.41 | 4550 | Φ1940 | DN400 | DN125 | 2190 | |
| WRY2300-0.8 | 2300 | 300 | 1.49 | 4700 | Φ1950 | DN450 | DN125 | 2200 | |
| WRY2500-0.8 | 2500 | 300 | 1.59 | 5010 | Φ2050 | DN500 | DN125 | 2300 | |
| WRY3000-0.8 | 3000 | 300 | 1.83 | 5500 | Φ2150 | DN500 | DN150 | 2400 | |
| WRY3500-0.8 | 3500 | 300 | 2.8 | 6000 | Φ2300 | DN550 | DN150 | 2550 | |
| WRY4200-0.8 | 4200 | 300 | 3.35 | 6250 | Φ2500 | DN600 | DN200 | 2680 | |
| WRY4600-0.8 | 4600 | 300 | 3.59 | 6250 | Φ2630 | DN650 | DN200 | 2780 | |
| WRY6000-0.8 | 6000 | 300 | 4.35 | 6250 | Φ3100 | DN700 | DN250 | 3250 | |
| WRY8000-0.8 | 8000 | 300 | 5.89 | 7500 | Φ3400 | DN800 | DN250 | 3550 | |
