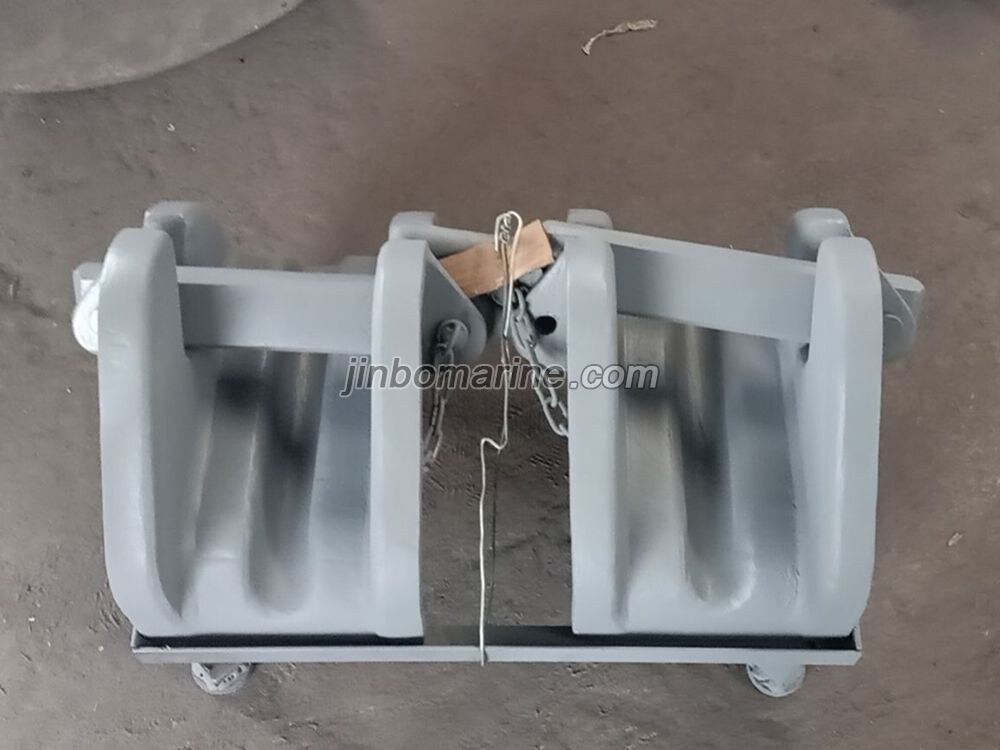

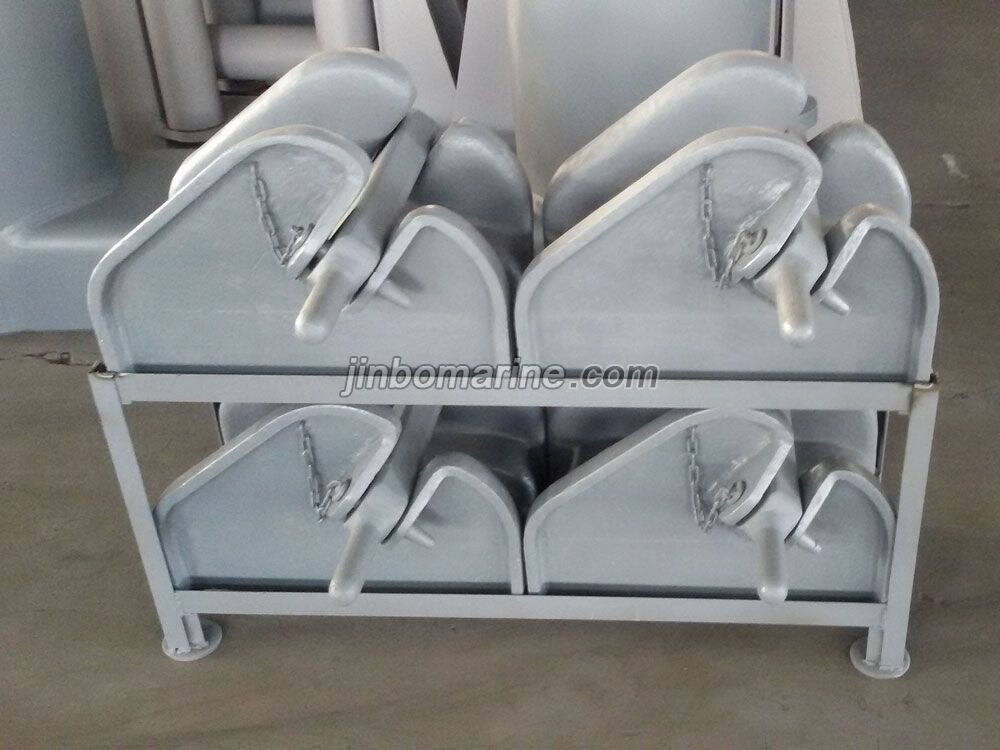

JIS F2023-1976 Cast Steel Bar Type Chain Stopper
- Category:Chain Stopper
- Material:Cast Steel
- Standards:JIS F2023-1976
- Certificate:ABS , BV, CCS , mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F2023 1976 Cast Steel Bar Type Chain Stopper.pdf
Details
China JIS F2023-1976 Cast Steel Bar Type Chain Stopper:
The chain stopper structure is simple.Good
wear and corrosion resistance guarantee the chain stopper is durable and long
service life
Can be produced as per customer drawings
Process:Casting and Machining.
Certificate:CCS,BV,ABS,DNV etc.
Surface Treatment:Polished,galvanized or bitumen painted

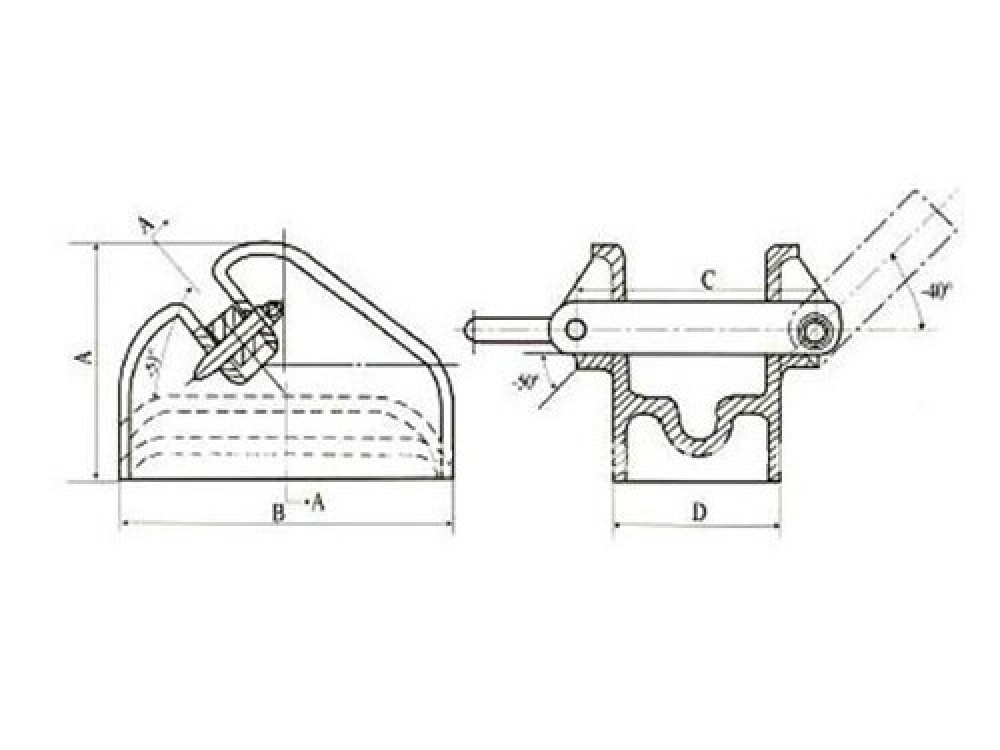

Size Chart:
|
JIS F2023-1976 Cast Steel Bar Type Chain Stopper |
||||||
|
Diameter of Apply Anchor Chain (mm) |
17~19 |
20~22 |
23~25 |
26~28 |
30~32 |
34~36 |
|
A(mm) |
190 |
216 |
241 |
270 |
305 |
342 |
|
B(mm) |
270 |
310 |
345 |
385 |
435 |
490 |
|
C(mm) |
200 |
226 |
256 |
280 |
320 |
254 |
|
D(mm) |
134 |
153 |
175 |
193 |
220 |
246 |
|
Weight(kg) |
17 |
24 |
33 |
44 |
68 |
92 |
