LRA Hot Rolled Equal Angle Bar
- Category:Shipbuilding Steel
- Material: A,AH32, AH36, B
- Standards:GB/T706-2006, JIS, EN, ASTM
- Certificate:CCS, ABS, GL, LR, DNV, BV, RINA, NK and KR
- Supply Ability:600Ton each Month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

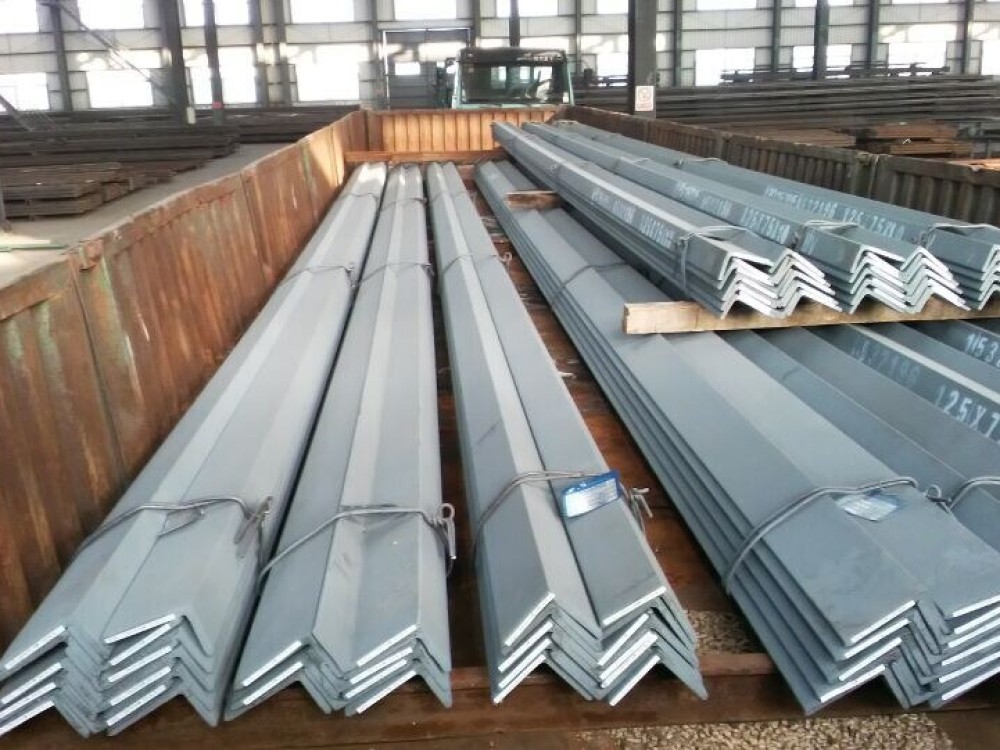

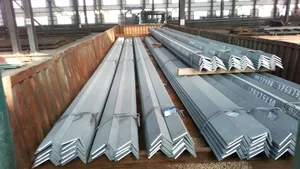

China LRA Hot Rolled Equal Angle Bar:
Hot Rolled Equal Angle Steel is used for ship building.
Grade: A,AH32, AH36, B
Certificate: CCS, ABS, GL, LR, DNV, BV, RINA, NK and KR
Standard: GB/T706-2006, JIS, EN, ASTM
Surface treatment: galvanized or as required
Angle Bar Specification
| Size(mm) | Weight(Kg/M) | Size(mm) | Weight(Kg/M) |
| 25x25x3 | 1.124 | 90x90x8 | 10.946 |
| 25x25x4 | 1.459 | 90x90x10 | 13.476 |
| 30x30x3 | 1.373 | 100x100x6 | 9.366 |
| 30x30x4 | 1.786 | 100x100x7 | 10.83 |
| 40x40x3 | 1.852 | 100x100x8 | 12.276 |
| 40x40x4 | 2.422 | 100x100x10 | 15.12 |
| 40x40x5 | 2.976 | 100x100x12 | 17.898 |
| 45x45x3 | 2.088 | 110x110x7 | 11.928 |
| 45x45x4 | 2.736 | 110x110x8 | 13.532 |
| 45x45x5 | 3.369 | 110x110x10 | 16.69 |
| 50x50x3 | 2.332 | 110x110x12 | 19.782 |
| 50x50x4 | 3.059 | 125x125x8 | 15.504 |
| 50x50x5 | 3.77 | 125x125x10 | 19.133 |
| 50x50x6 | 4.465 | 125x125x12 | 22.696 |
| 63x63x5 | 4.822 | 125x125x14 | 26.193 |
| 63x63x6 | 5.721 | 140x140x10 | 21.488 |
| 63x63x8 | 7.469 | 140x140x12 | 25.522 |
| 70x70x5 | 5.397 | 140x140x14 | 29.49 |
| 70x70x6 | 6.406 | 160x160x10 | 24.729 |
| 70x70x7 | 7.398 | 160x160x12 | 29.391 |
| 70x70x8 | 8.373 | 160x160x14 | 33.987 |
| 75x75x5 | 5.818 | 160x160x16 | 38.518 |
| 75x75x6 | 6.905 | 180x180x12 | 33.159 |
| 75x75x7 | 7.976 | 180x180x14 | 38.383 |
| 75x75x8 | 9.03 | 180x180x16 | 43.542 |
| 75x75x10 | 11.089 | 180x180x18 | 48.634 |
| 80x80x6 | 7.376 | 200x200x14 | 42.894 |
| 80x80x7 | 8.525 | 200x200x16 | 48.68 |
| 80x80x8 | 9.658 | 200x200x18 | 54.401 |
| 80x80x10 | 11.874 | 200x200x20 | 60.056 |
| 90x90x6 | 8.35 | 200x200x24 | 71.168 |
| 90x90x7 | 9.656 | Length:6-12meters |
