Weatherproof Breather Valve
- Category:Breather Valve
- Material:304,316, Aluminum Alloy
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

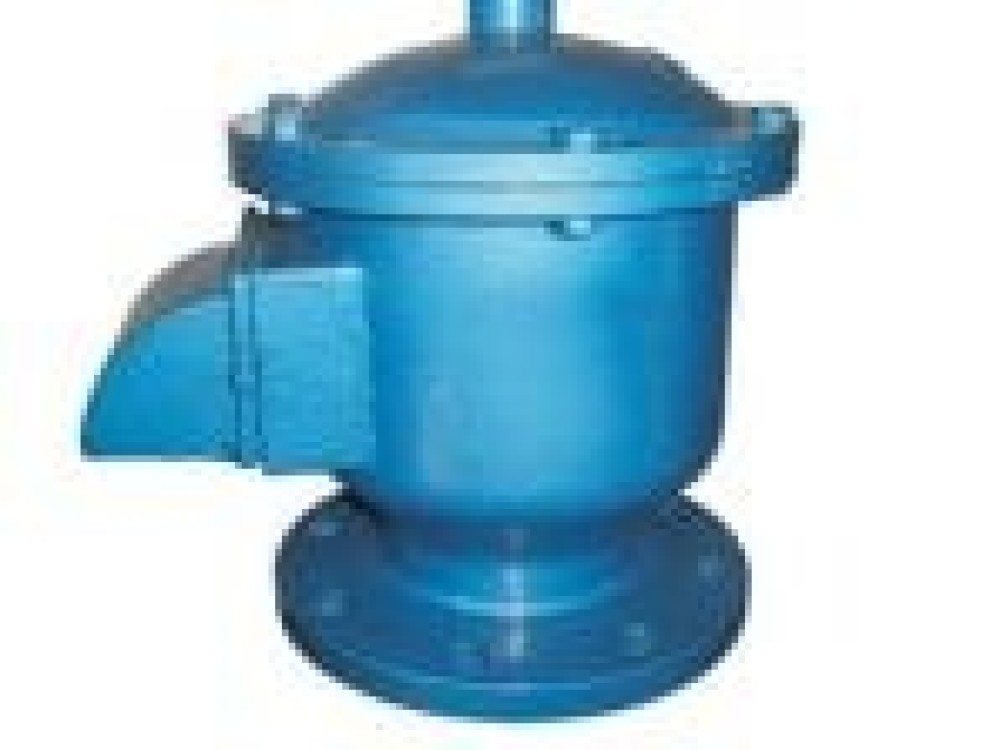

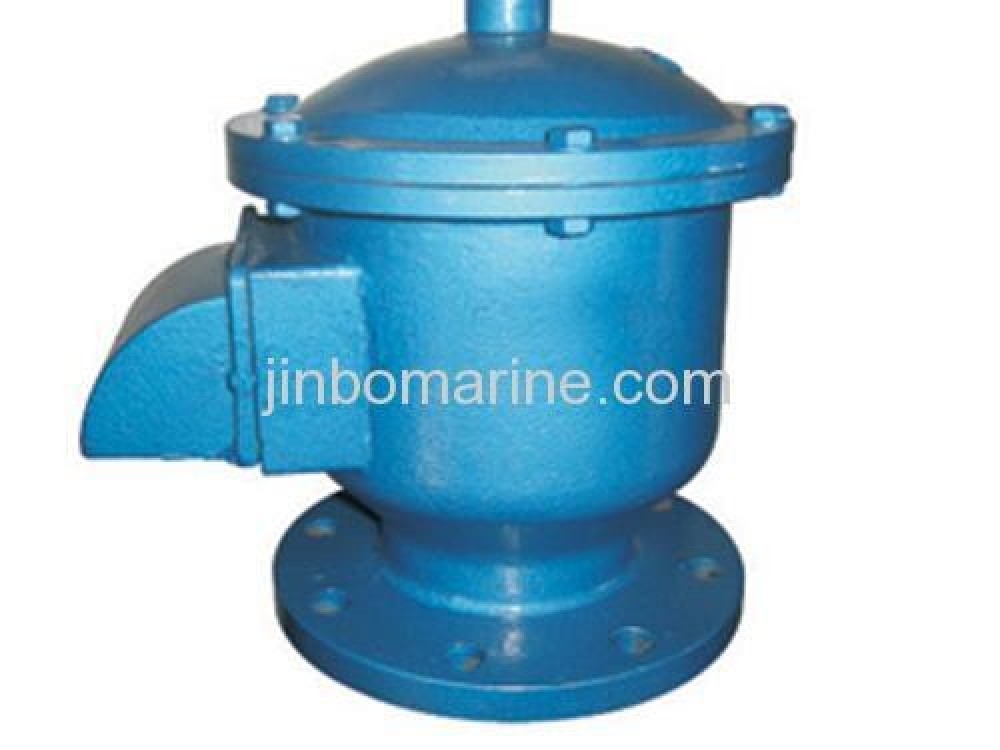

China Weatherproof Breather Valve:
Weatherproof Breather Valve used for safety equipment of crude oil, gasoline, kerosene, light diesel oil, aromatic hydrocarbons and other fixed roof tank,protected from damage when the overpressure or vacuum. The valve is equipped with a flame arrester.
Main Specification
| DN |
Weight kg/pc |

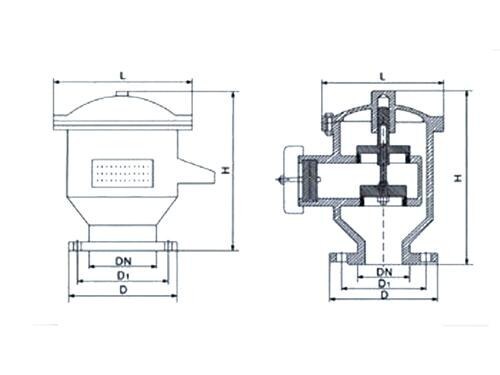

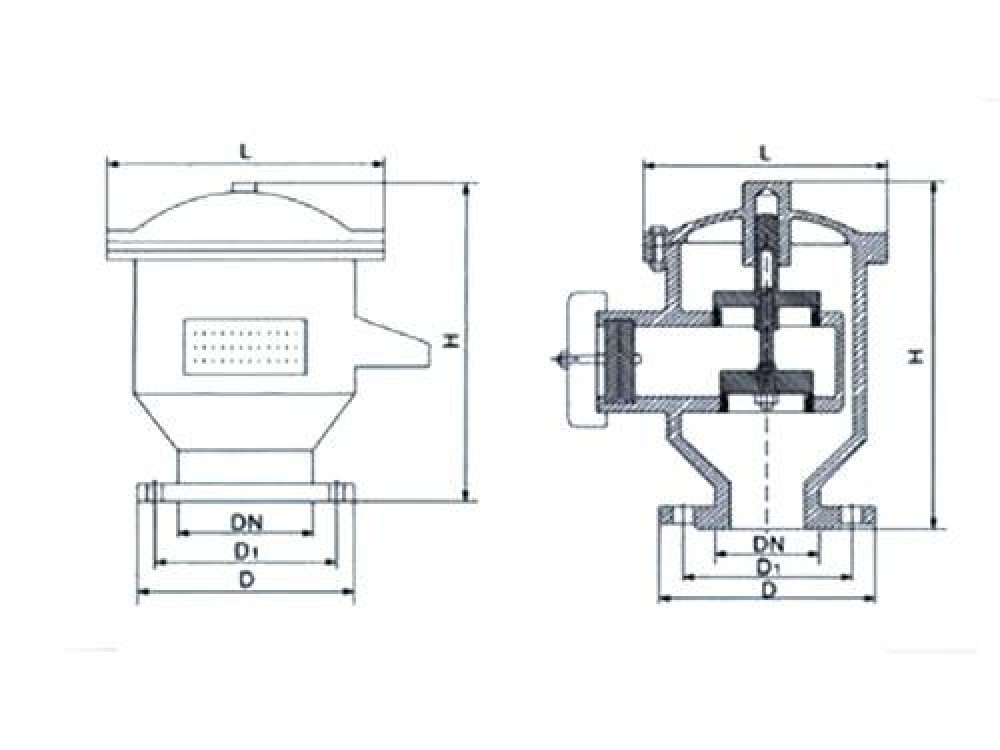

Installation Size（mm） | ||||
| D1 | D1 | L | H | n×Φ | ||
| DN50 | 6.5 | Φ110 | Φ140 | 160 | 255 | 4×14 |
| DN80 | 9.8 | Φ150 | Φ185 | 213 | 260 | 4×18 |
| DN100 | 12 | Φ170 | Φ205 | 265 | 290 | 4×18 |
| DN150 | 21 | Φ225 | Φ260 | 305 | 330 | 8×18 |
| DN200 | 31 | Φ280 | Φ315 | 355 | 350 | 8×18 |
| DN250 | 35 | Φ335 | Φ370 | 420 | 400 | 12×18 |
