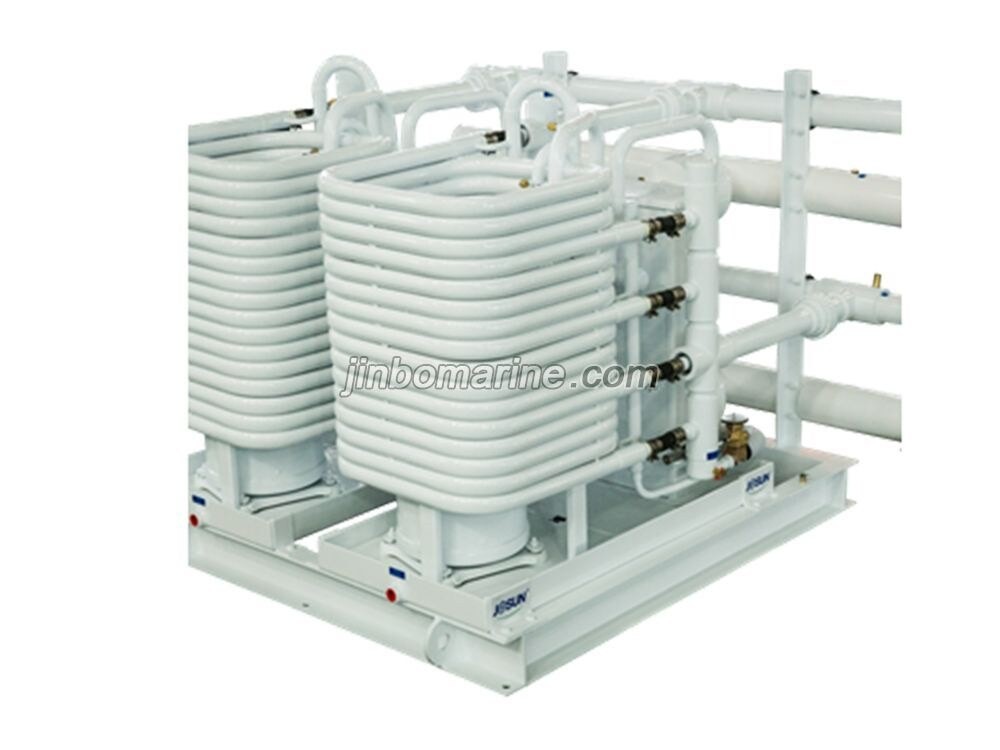

YTLS Navy Water Chiller Module

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

YTLS navy water chiller module design make the installation convenient and flexible, developing the max efficiency, improving the reliability and accessible for maintenance, single water chiller module may be combined together to provide a large system, which is easy to modify the type of for special service. Refrigerant circuit of single water chiller module is todally enclosed and filled with R22 at factory and need no charge on site. Chilled/heated water piping and cooling sea water piping can be collected individually, improving the connection speed and is convenient for customer installation.

Each water chiller module includes hermitic scroll compressor, 4-way reverse valve , double way expansion valve, high efficient coaxial condenser, stainless steel plate type heat exchanger, high& low pressure switch, water flow controller and water pan etc. Each assembly is assembled together compactly and make volume small.

Technical Data:

Type YTLS-240(II) YTLS-288(II) YTLS-144(II) YTLS-180(II) YTLS-360(II) YTLS-432(II)
Cooling capacity Kw 70 84 42 52.5 105 126
Btu/hr 24000 288000 144000 180000 360000 432000
Heating capacity Kw 77.2 92.4 46.4 57.9 115.8 138.6
Btu/hr 260000 316000 156000 198000 390000 474000
Refrigerant R22(R134a,R404A.R407C)
Power supply AC380V 50Hz 3p/AC440V 60HZ 3p
Total Power KW 14.6/20.6 19/26.6 9.0/12.6 11.1/16.2 21.9/30.9 28.5/39.9
Current A 28.9/41 39.2/54 19/26 23.2/32.8 43.8/59 43.8/59
Chilled/heated water flow m3/h 12 14.8 7.2 9 18 22
Chilled/heated water Temp.℃ Cooling 12/7℃, heating40/45℃
Cooling sea water flow m3/h 18 22 10.75 13.5 27 33
Cooling sea water inlet temp. ℃ Cooling≤32℃, heating≥8℃

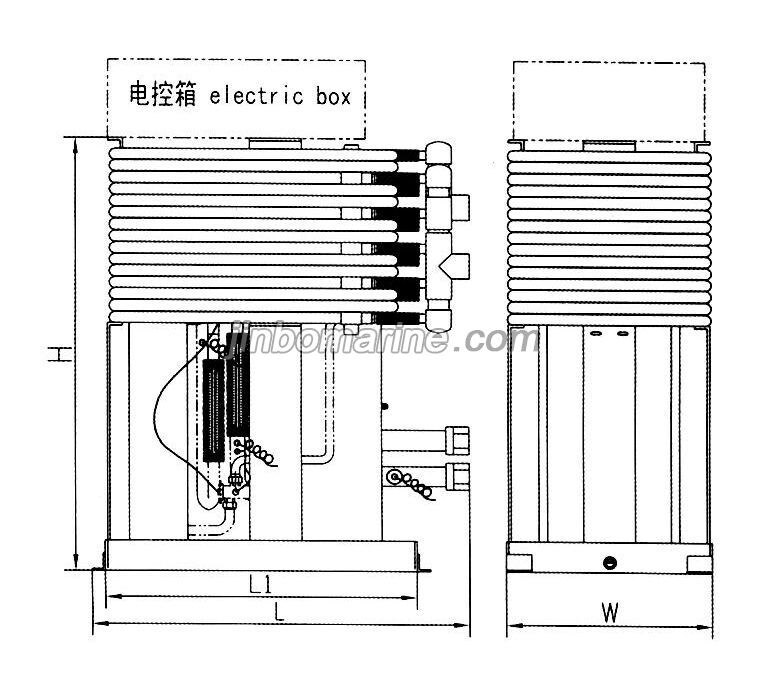

Dimension L mm 1000 1000 900 900 1000 1000
W mm 900 900 1020 1020 1400 1400
H mm 900 940 600 640 900 940
Weight kg 385 470 320 340 585 710
