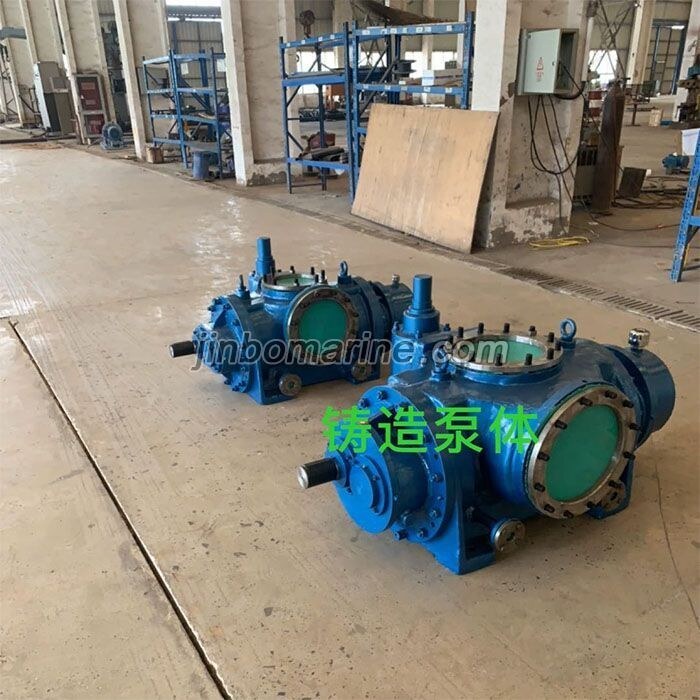

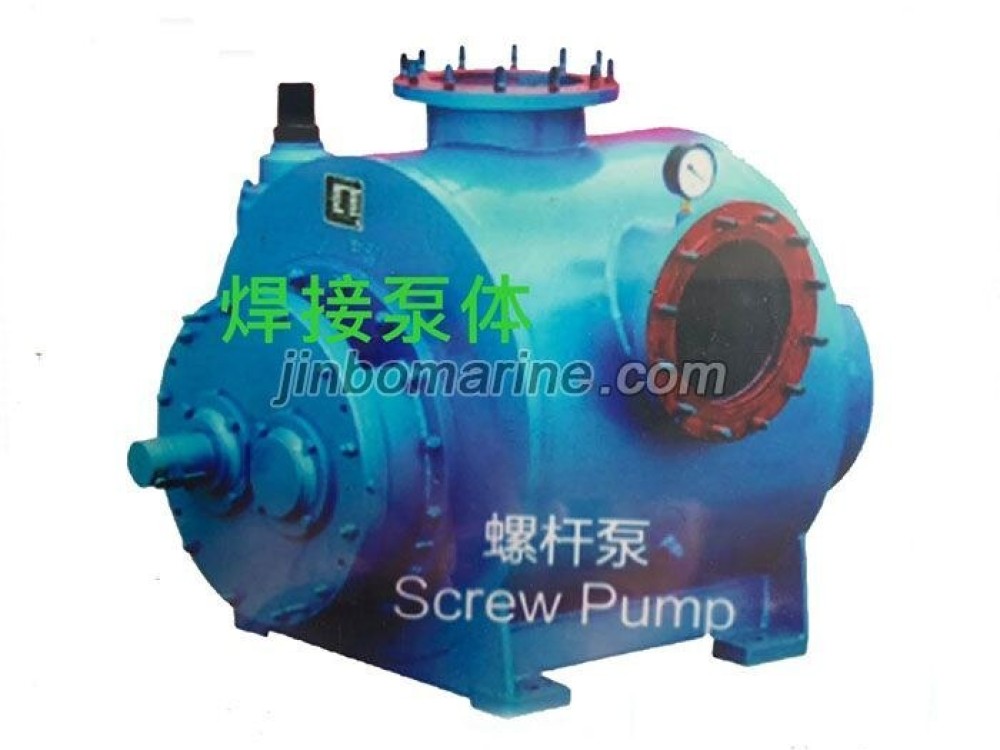

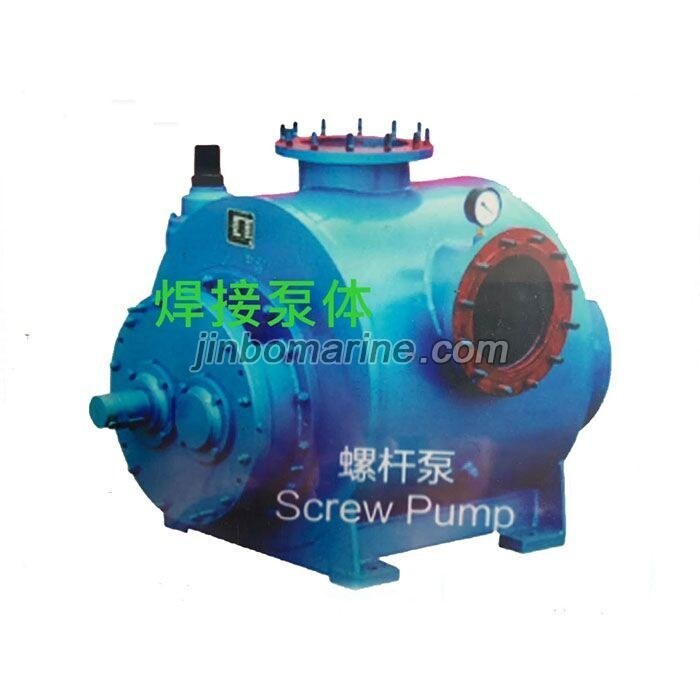

2LB-500 Marine Horizontal Twin Screw pump
Installation tyep: Horizontal type and vertical type Structure type: Casting type and welding type Wrming type: According to the demands of media, it can be warmed up Material: The materi...
2LB-500 Marine Horizontal Twin Screw pump
PDF Datasheet
We can supply according to your requirement.
China 2LB-500 Marine Horizontal Twin Screw pump:
Installation tyep: Horizontal type and vertical type
Structure type: Casting type and welding type
Wrming type: According to the demands of media, it can be warmed up
Material: The materials of pump body contain cast-steel, cast-iron, cast stainless steel, Q235 steel, 304stainless steel, 316L stainless steel, weld and so on. The material of the screw cover cast-steel, cast stainless steel, ordinary steel, 304 stainless steel, 316L stainless steel, 17-4PH and so on. Meanwhile, customers can choose appropriate materials based on their different working situation.
| Main Technical Data | ||||
|---|---|---|---|---|
| Type | Flow rate | Pressure | Power | Inlet dia |
| m3/h | Mpa | Kw | mm | |
| 2LB-6 | 6 | 1 | 3.6 | 50 |
| 2LB-12 | 12 | 1 | 6.2 | 50 |
| 2LB-25 | 25 | 1 | 11.8 | 80 |
| 2LB-35 | 35 | 1 | 17.3 | 80 |
| 2LB-50 | 50 | 1 | 24.6 | 100 |
| 2LB-80 | 80 | 1 | 34 | 100 |
| 2LB-100 | 100 | 1 | 42 | 150 |
| 2LB-120 | 120 | 1 | 49.9 | 150 |
| 2LB-150 | 150 | 1 | 61.2 | 150 |
| 2LB-200 | 200 | 1 | 76.8 | 200 |
| 2LB-250 | 250 | 1 | 95 | 200 |
| 2LB-300 | 300 | 1 | 111 | 250 |
| 2LB-350 | 350 | 1 | 132 | 250 |
| 2LB-400 | 400 | 1 | 166 | 250 |
| 2LB-450 | 450 | 1 | 184 | 300 |
| 2LB-500 | 500 | 1 | 202 | 300 |
| 2LB-600 | 600 | 1 | 229 | 350 |
| 2LB-650 | 650 | 1 | 250 | 350 |
| 2LB-700 | 700 | 1 | 270 | 350 |
| 2LB-750 | 750 | 1 | 287 | 350 |
| 2LB-800 | 800 | 1 | 318 | 350 |
