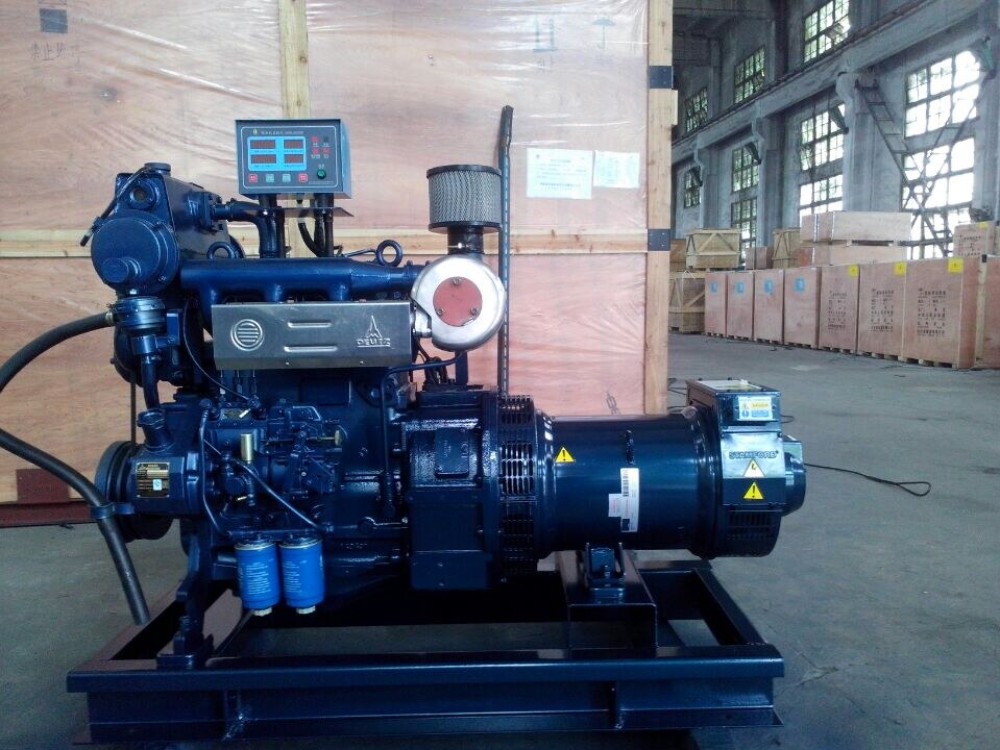

40 kw Mainre Generator

  • Category:Marine Generator
  • Material:Weichai diesel engine, marathon AC generator
  • Standards:standard
  • Certificate:CCS
  • Packing Details:Standard Packing
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

40Kw Marine Generator

1.1 Operation Condition:

Pressure:0.1MPa

Ambient temperature:45℃

Sea water temperature:32°C

Relative humidity:90%

List: ≤15°,Heel: ≤5°

2.1 Generator Model:

CCFJ30J-Y

Rated Power: 30kW

Voltage: 400V

Frequency:        50Hz

Current: 54A

Factor:      0.8

Speed:         1500rpm

Start:       DC24V electric motor

Speed Way: Machinery

2.2 Diesel engine

Type: in line,Turbo charged, water cooled, direct fuel injuection.4 stroke

Cylinder: 3

Cylinder diameter: 105mm

Trip: 120mm

Displacement: 3.12 L

Compression ratio: 18:1

Power: 40kW

Rated Speed: 1500rpm

Start:       DC24V electric motor start

Rotation: anticlockwise(From the flywheel)

Fuel injector type: Directly

Cooling: Binary water cooling

Fuel specification: 0# or -10# diesel oil(GB252)

Lob Oil: SAE15W/40 CD-4 and more

Speed Way: Machinery

Fuel consumption: 200±5% g/kW.h

Lob consumption: 0.8g/kW.h

Oil sump capacity: 9L

Exhaust back pressure: ≤6kpa

High Pressure tubing: Double high voltage explosion-proof tuing and Fuel leakage alarm device

2.3 AC generator

Type: Marine execution brushless 3ph AC generator

Rated power: 30kW

Voltage:   415V

Frequency:  50Hz

Rated power factor: 0.8

Working: Continues

Phase: Three phase three wire.

Regulating way: Brushless, self-excited

Protection: IP23

Insulation: H Class

Cooling: Air cooling

Stuffing box TJ28X2+TJ19X1+TJ13X1
