40CWZ-4 Marine horizontal self-priming centrifugal pump
40CWZ-4 Marine horizontal self-priming centrifugal pump is suitable for marine cooling pump, sanitary pump, fire pump, bilge ballast pump, etc. Low noise, stable performance, high work...
Loading product images...

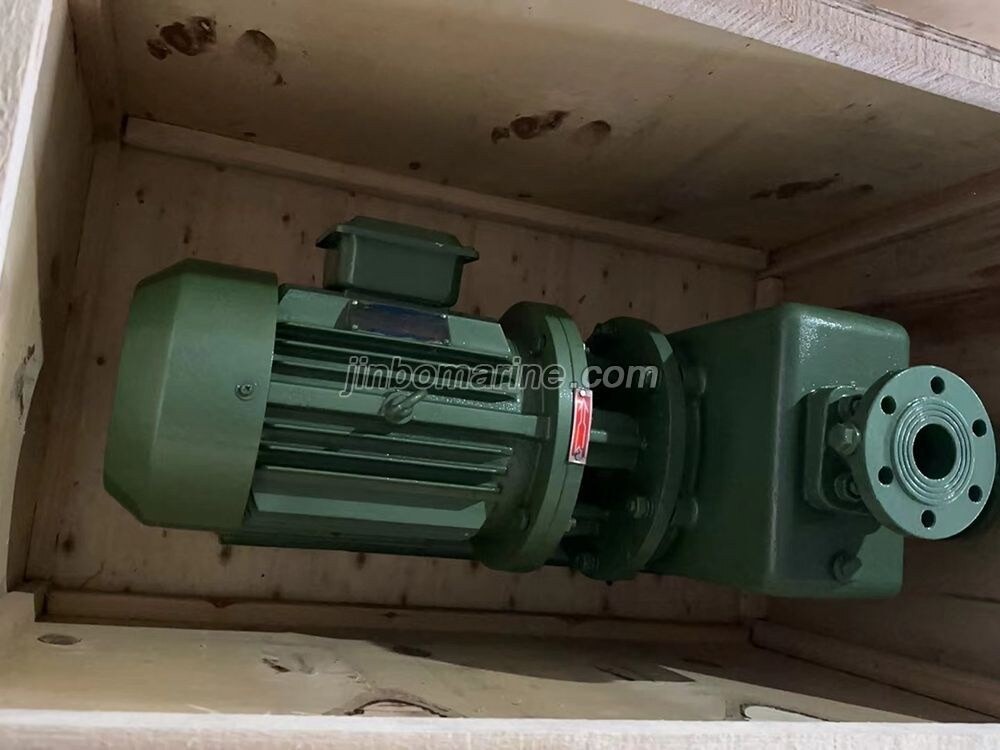

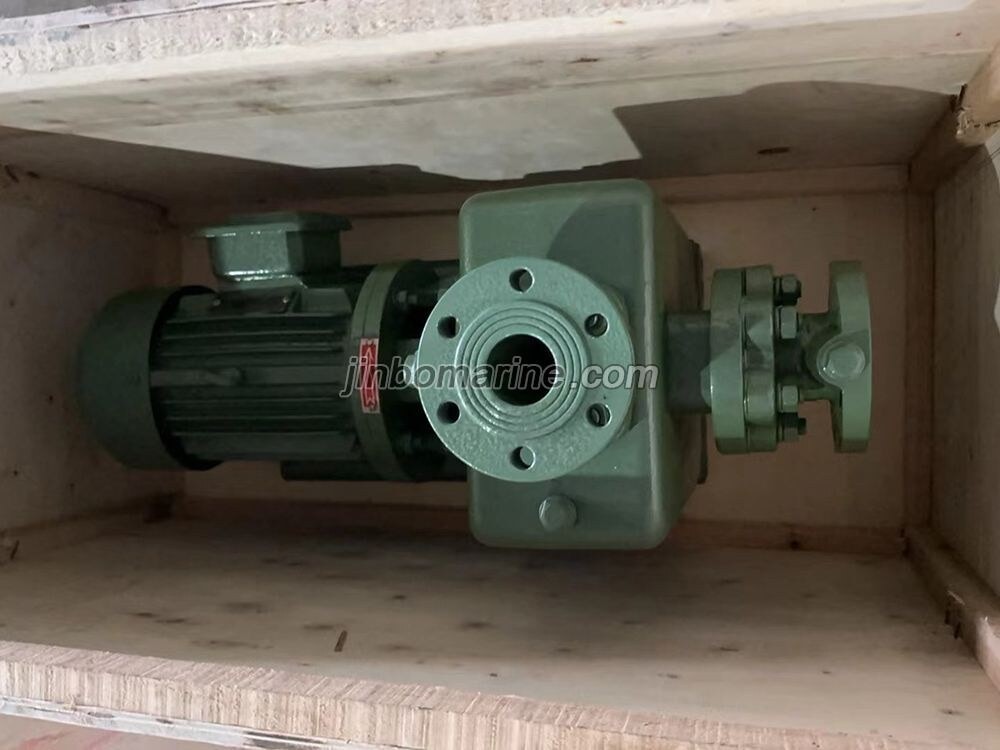

40CWZ-4 Marine horizontal self-priming centrifugal pump
PDF Datasheet
We can supply according to your requirement.
China 40CWZ-4 Marine horizontal self-priming centrifugal pump:
40CWZ-4 Marine horizontal self-priming centrifugal pump is suitable for marine cooling pump, sanitary pump, fire pump, bilge ballast pump, etc.
Low noise, stable performance, high work efficiency, and convenient operation
| Model | Flow Rate | Height | NPSH | Speed | Motor |
| m3/h | m | m | r/min | kW | |
| 32CWZ-3 | 8 | 42 | 4 | 2950 | 4 |
| 32CWZ-4 | 8 | 30 | 4 | 2.2 | |
| 32CWZ-5 | 8 | 21 | 4 | 1.5 | |
| 40CWZ-4 | 12 | 42 | 4 | 4 | |
| 40CWZ-5 | 12 | 30 | 4 | 3 | |
| 40CWZ-6 | 12 | 21 | 4 | 2.2 | |
| 50CWZ-5 | 21 | 42 | 4 | 5.5 | |
| 50CWZ-6 | 21 | 30 | 4 | 4 | |
| 50CWZ-8 | 21 | 21 | 4 | 3 | |
| 50CWZ-11 | 21 | 15 | 4 | 2.2 | |
| 65CWZ-5 | 30 | 60 | 5 | 15 | |
| 65CWZ-6 | 36 | 42 | 5 | 11 | |
| 65CWZ-8 | 36 | 30 | 4 | 5.5 | |
| 65CWZ-11 | 36 | 21 | 4 | 4 | |
| 80CWZ-5.5 | 60 | 75 | 5 | 30 | |
| 80CWZ-6 | 60 | 50 | 5 | 22 | |
| 80CWZ-11 | 60 | 30 | 4 | 11 | |
| 80CWZ-14 | 60 | 21 | 4 | 7.5 | |
| 100CWZ-6 | 100 | 85 | 5 | 55 | |
| 100CWZ-8 | 100 | 60 | 5 | 37 | |
| 100CWZ-11 | 100 | 40 | 5 | 22 | |
| 100CWZ-14 | 100 | 30 | 5 | 15 | |
| 100CWZ-18 | 100 | 21 | 5 | 11 | |
| 150CWZ-16 | 180 | 30 | 4.5 | 37 | |
| 150CWZ-22 | 200 | 25 | 4.5 | 37 |
