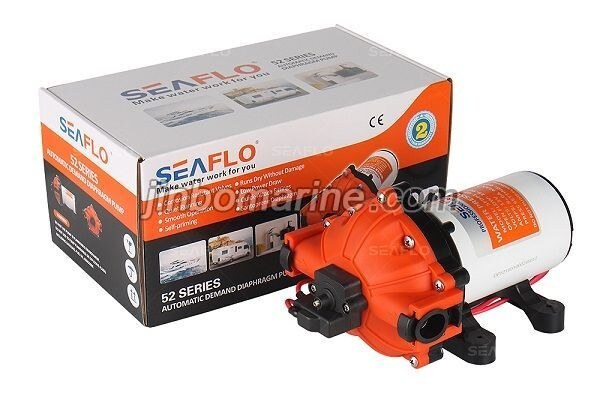

52 Series DC Diaphragm Pump
- Category:Diaphragm Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
52 Series DC Diaphragm Pump
General description:
12V/24V 3.0-20.0LPM 17-70PSI

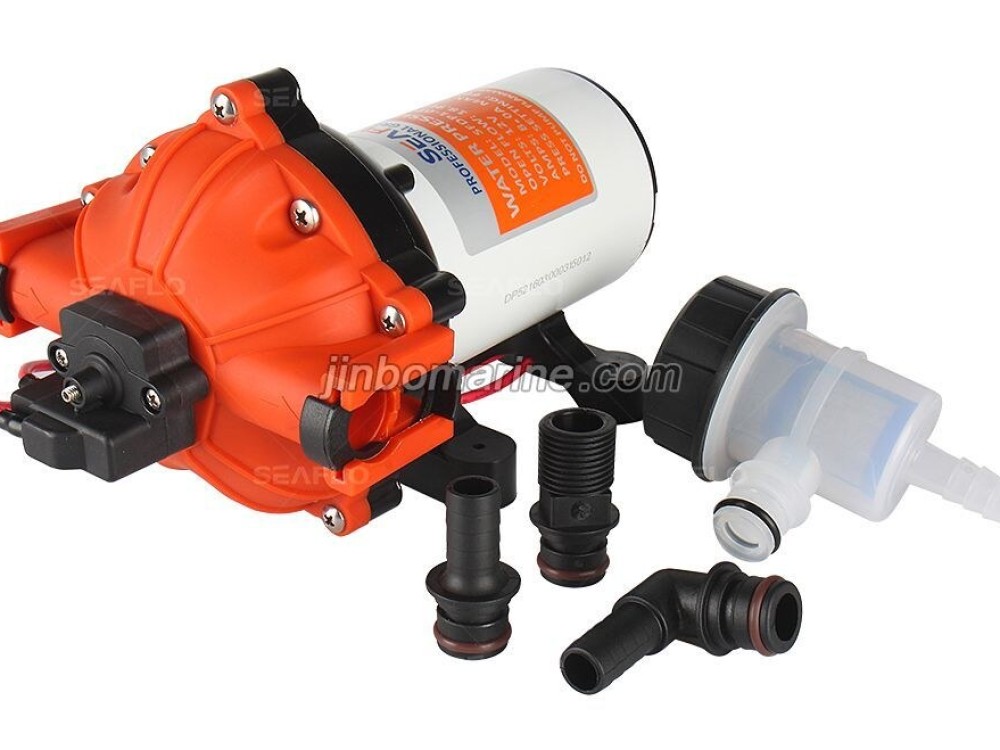

The 52-Series is our Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large?five-chamber diaphragm. Quick Attach Fittings make installation or replacement easy. These?models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 5.0 gallons per minute. The 52-Series pumps are self-priming, and can run dry without damage, performance reliable. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops and stops the pump when the faucet is opened and closed.?They are easy to install service and winterize.
Parameter pump and motor:
| PUMP | |
| Type | 5?Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6?feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar) Shut-off Pressure70 PSI ：56 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | QUICK ATTACH |
| Weight | 5.9 lbs (2.7 kg) |
| MOTOR | |
| Leads | 14 AWG,?13" (33cm) long with 2-Pin connector/Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 18.0?A |
| Fuse | 27.0?A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow (GPM/LPM) |
Control Type |
Max Draw |
Shut-off Pressure (PSI/BAR) |
Valves | Diaphragm | Ports |
Wire Connections |
| SFDP1-030-060-52 | 12V | 3.0 / 11.5 | Switch | 10.0A | 60 / 4.2 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP2-030-060-52 | 24V | 3.0 / 11.5 | Switch | 5.5A | 60 / 4.2 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP1-040-060-52 | 12V | 4.0 / 15.0 | Switch | 13.0A | 60 / 4.2 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP2-040-060-52 | 24V | 4.0 / 15.0 | Switch | 7.0A | 60 / 4.2 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP1-050-060-52 | 12V | 5.0 / 18.9 | Switch | 17.0A | 60 / 4.2 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP2-050-060-52 | 24V | 5.0 / 18.9 | Switch | 9.0A | 60 / 4.2 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP1-050-070-52 | 12V | 5.0 / 18.9 | Switch | 18.0A | 70?/ 4.8 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP2-050-070-52 | 24V | 5.0 / 18.9 | Switch | 10.0A | 70?/ 4.8 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
