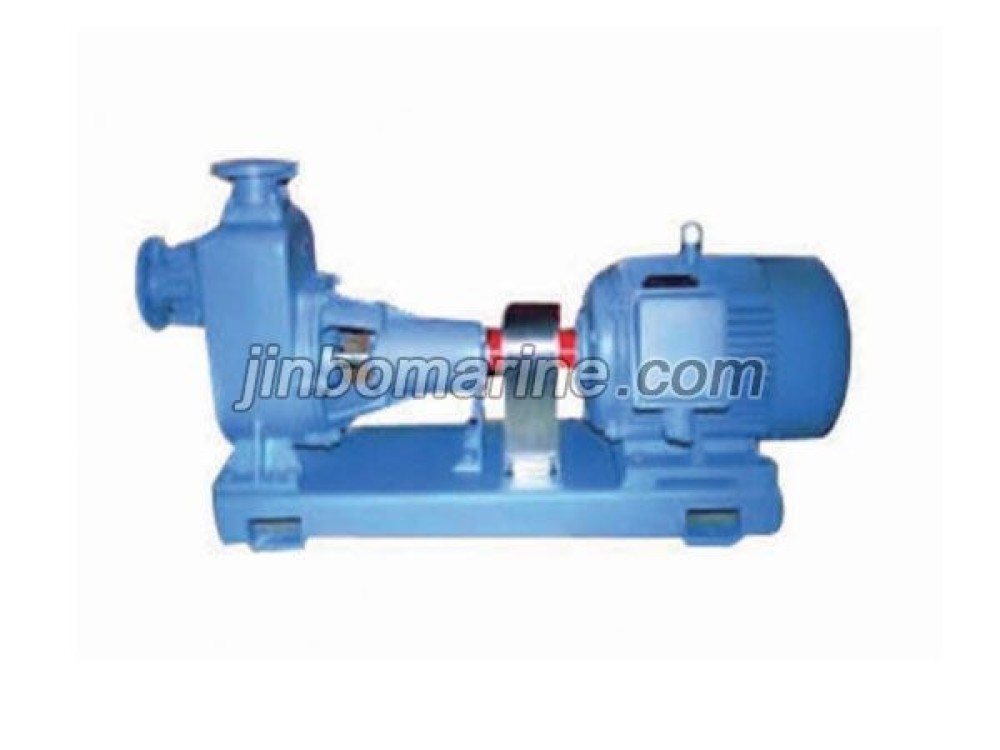

65CWZ-5 horizontal self-priming centrifugal pump
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China 65CWZ-5 horizontal self-priming centrifugal pump:
CWZ series Marine horizontal self-priming centrifugal pump is suitable for cooling pump, sanitary pump, fire pump, bilge ballast pump, etc.
| Main Technical Data | ||||
| Model |
Flow rate Q （m³/h） |
Lift m |
Rev speed r/min |
Motor power (KW) |
| 32CWZ-5 | 8 | 21 | 2950 | 1.5 |
| 32CWZ-4 | 8 | 30 | 2.2 | |
| 32CWZ-3 | 8 | 42 | 4 | |
| 40CWZ-6 | 12 | 21 | 2.2 | |
| 40CWZ-5 | 12 | 30 | 3 | |
| 40CWZ-4 | 12 | 42 | 4 | |
| 50CWZ-8 | 21 | 21 | 3 | |
| 50CWZ-6 | 21 | 30 | 4 | |
| 50CWZ-5 | 21 | 42 | 5.5 | |
| 65CWZ-11 | 36 | 21 | 4 | |
| 65CWZ-8 | 36 | 30 | 5.5 | |
| 65CWZ-6 | 36 | 42 | 11 | |
| 65CWZ-5 | 36 | 60 | 15 | |
| 80CWZ-14 | 60 | 21 | 7.5 | |
| 80CWZ-11 | 60 | 30 | 11 | |
| 80CWZ-8 | 60 | 42 | 15 | |
| 80CWZ-6 | 60 | 60 | 22 | |
| 80CWZ-5.5 | 100 | 75 | 30 | |
| 100CWZ-18 | 100 | 21 | 11 | |
| 100CWZ-14 | 100 | 30 | 15 | |
| 100CWZ-11 | 100 | 42 | 30 | |
| Alao have bigger pumps, pls contact us for more information. | ||||
