7.5-03 HHBB Series Hoist
- Category:Marine Hoist
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China 7.5-03 HHBB Series Hoist:

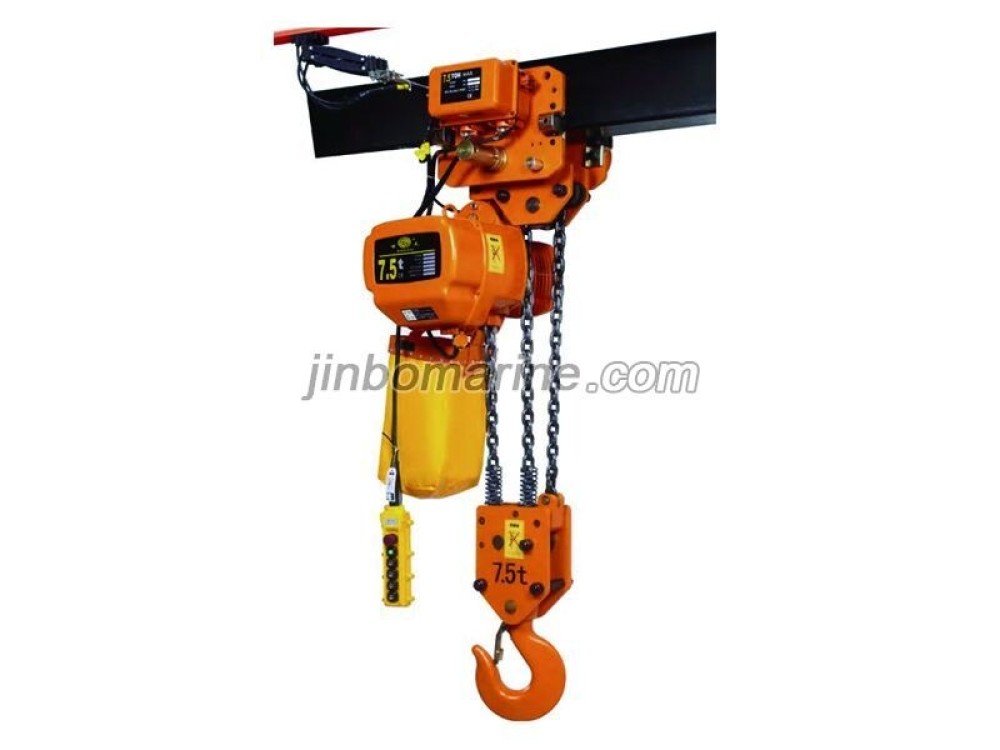

7.5-03 HHBB Series Hoist
Technical Parameters:
| Type | Capacity(Ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting Moter | Operating Moter | ||||||||
| Power(kw) | Rotation speed(r/min) | Phases | voltage(v) | Frequency(Hz) | Power(kw) | Rotation speed(r/min) | Phases | voltage(v) | Frequency(Hz) | ||||
| HHBB7.5－03 | 7.5 | 3/9 | 1.8 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.75 | 1440 | 3 | 220-440 | 50/60 |

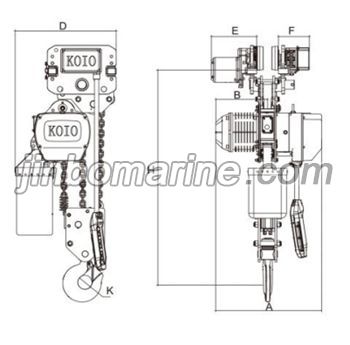

Product Size:
| Type | Capacity | H | A | B | D | E | F | K | L | N | I-BEAM |
| HHBB7.5－03 | 7.5 | 1200 | 620 | 300 | 600 | 256 | 168 | Φ83 | 68 | 55 | 150-220 |
