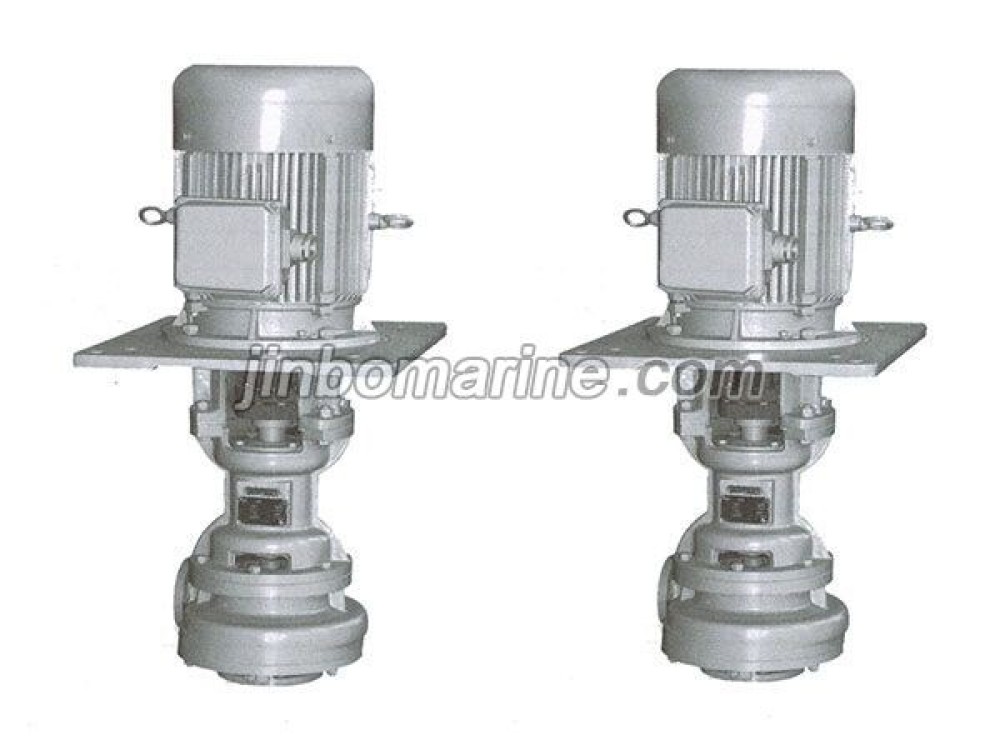

80CL-50 marine vertical centrifugal pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China 80CL-50 marine vertical centrifugal pump:

CL type Marine vertical centrifugal pump is suitable for ballast pump, bilge pump, fire pump, cooling pump and sanitary pump.
CLG series pumps are designed with high back pressure on the basis of cl-type pumps. They can withstand the pressure of 3.0mpa and can be matched with dc motors. They are widely used in submarines.

Main Technical Data
Model Capacity
m³/h 		Head
m 		Rev speed
r/min 		Motor power
KW
4CLG-12 90 30 2800 14
25CL-30 3.6 30 2950 1.1
50CL-30 20 30 2950 4
50CLG-30 18 24.5 2950 3
50CL-30A 18 24.5 2950 3
65CL-45 30 45 2950 7.5
65CLG-38 2027 38 1450 5.5
65CL-45A 25 37 2950 5.5
65CL-65 18 65 2950 11
80CL-7.5 50 7.5 1450 1.1
80CL-30 45.5 30 2950 7.5
80CL-30A 50 25 2950 5.5
80CL-35 90 35 2950 7.5
80CL-50 50 50 2950 22
80CL-65 46.5 65 2950 18.5
80CL-65A 44 56 2950 15
80CL-65B 100 50 2950 15
100CL-30 100 65 2950 15
100CLG-30 90 50 2950 15
100CL-30A 100 50 2950 11
100CL-45 90 30 2950 22
Alao have bigger pumps, pls contact us for more information.
