80CWL-65A Horizontal Self-priming Marine Centrifugal pump
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

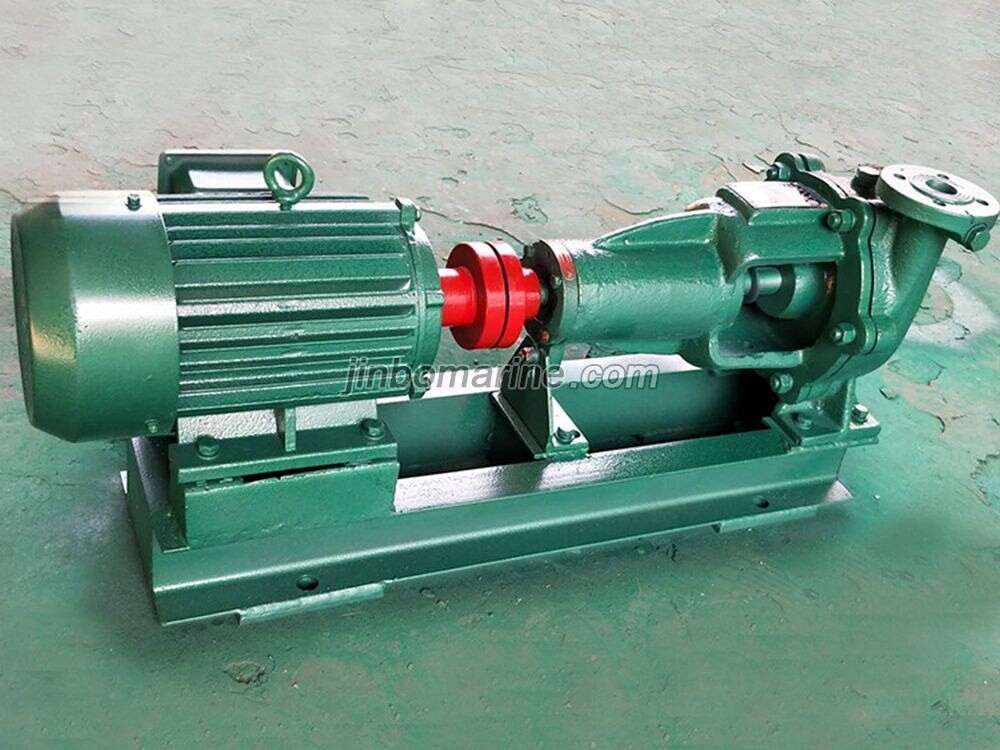

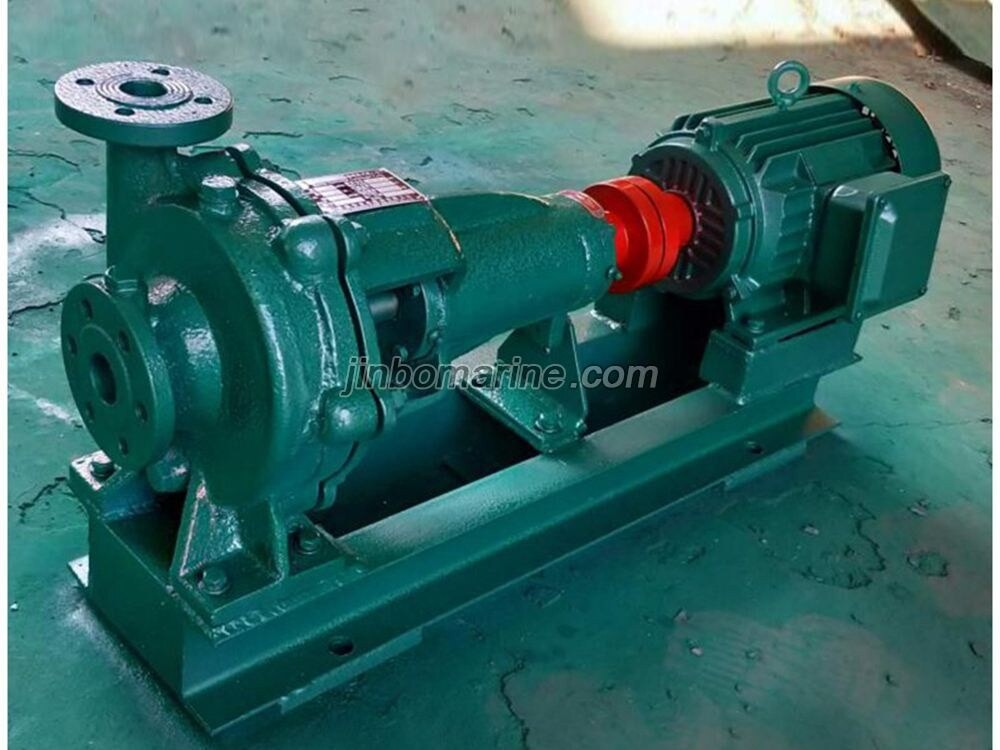

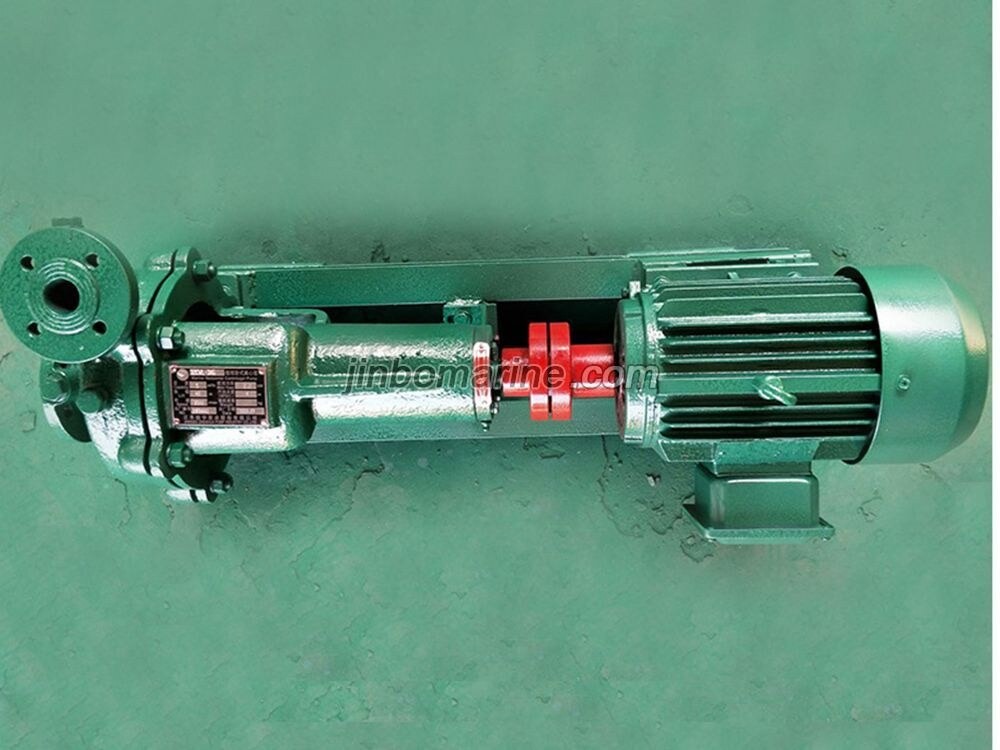

80CWL-65A Horizontal Self-priming Marine Centrifugal pump
The CWL type marine vertical centrifugal pump is suitable for supporting water supply pumps in various pressure water systems with temperatures less than or equal to 70 ℃, such as ship cooling systems, ballast systems, fire protection systems, and marine seawater desalination devices.
| Model |
Flow m3/h |
Lift m |
Speed r/min |
Shaft power Kw |
Power Kw |
Effiency% |
NPSH m |
Impeller Dia. mm |
Pump Weight Kg |
||
|
50Hz 380V |
60Hz 440V |
DC 220V/ 110V |
|||||||||
| 40CWL-42 | 15 | 42 | 2890 | 3500 | 3000 | 3.44 | 4 | 53 | 4 | 182(146) | 51 |
| 40CWL-42A | 12 | 40 | 2870 | 3490 | 3000 | 2.6 | 3 | 50 | 4 | 168(135) | 51 |
| 40CWL-50 | 10 | 50 | 2890 | 3500 | 3000 | 3.09 | 4 | 44 | 4 | 192(154) | 51 |
| 40CWL-50A | 8 | 45 | 2870 | 3490 | 3000 | 2.3 | 3 | 42 | 4 | 180(144) | 51 |
| 50cw-30 | 20 | 30 | 2890 | 3500 | 3000 | 2.79 | 4 | 62 | 3 | 150(120 | 50 |
| 50CWL-30A | 18 | 24.5 | 2870 | 3490 | 3000 | 2.11 | 3 | 61 | 3 | 138(110) | 50 |
| 65CWL-45 | 30 | 45 | 2900 | 3520 | 3000 | 5.66 | 7.5 | 67 | 3 | 186(149) | 60 |
| 65w1-45A | 27 | 37 | 2900 | 3520 | 3000 | 4.32 | 5.5 | 65 | 3 | 169(135) | 60 |
| 65CWL-65 | 25 | 65 | 2930 | 3540 | 3000 | 10.56 | 15 | 44 | 5 | 230(184) | 65 |
| 80CWL-30 | 50 | 30 | 2900 | 3520 | 3000 | 5.75 | 7.5 | 72 | 3.5 | 168(134) | 62 |
| 80CWL-30A | 45.5 | 25 | 2900 | 3520 | 3000 | 4.48 | 5.5 | 70 | 3.5 | 150(120) | 61 |
| 80CWL-35 | 50 | 35 | 2900 | 3520 | 3000 | 6.8 | 7.5 | 71 | 5 | 182(146 | 64 |
| 80CWL-65 | 50 | 65 | 2930 | 3540 | 3000 | 13.63 | 18.5(17) | 65 | 4.5 | 235(188) | 127 |
| 80CWL-65A | 46.5 | 56 | 2930 | 3540 | 3000 | 11.06 | 15 | 64 | 4.5 | 223(178) | 127 |
| 80CWL-65B | 44 | 50 | 2930 | 3540 | 3000 | 9.5 | 15(13) | 63 | 4.5 | 210(168) | 118 |
| 100CWL-30 | 100 | 30 | 2930 | 3540 | 3000 | 10.35 | 15(13) | 79 | 4.5 | 162(130) | 126.3 |
| 100CWL-30A | 90 | 24.5 | 2930 | 3540 | 3000 | 7.8 | 11 | 77 | 4.5 | 154(124) | 125 |
| 100CWL-45 | 100 | 45 | 2940 | 3550 | 3000 | 16.8 | 22 | 73 | 4 | 200(160) | 180 |
